Cartridge valves Parts
Browse Subcategories
Compare Cartridge valves
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Model Code 1 | Product height in | Product height mm | Product length in | Product length mm |
|---|---|---|---|---|---|
| 02-153254 | DPS2-20-T-F-0-040 | 1.870 | 47.498 | 4.340 | 110.236 |
| 02-153253 | DPS2-10-P-S-0-020 | 1.000 | 25.400 | 3.750 | 95.250 |

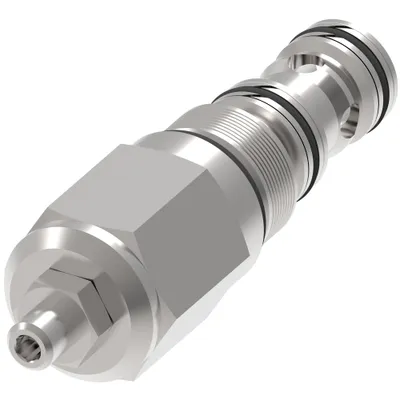

| 02-153249 | — | 1.870 | 47.498 | 5.440 | 138.176 |
| 02-153245 | RV3A-16-S-0-35-XXX | 1.500 | 38.100 | 5.840 | 148.336 |

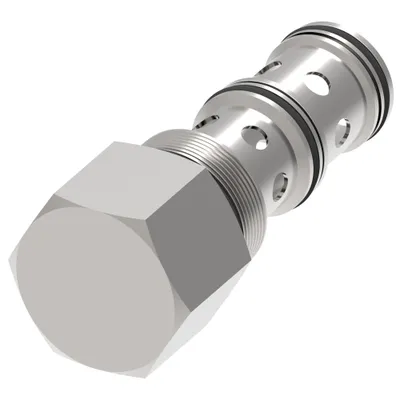

| 02-153244 | PFR1-16-F-0-4.0 | 1.500 | 38.100 | 3.870 | 98.298 |

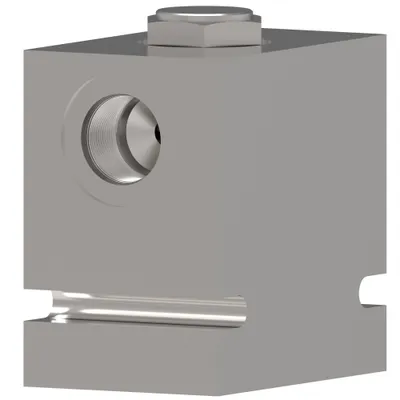

| 02-153238 | FDC1-10-6T-22 | 3.500 | 88.900 | 3.000 | 76.200 |
| 02-153231 | RV5-10-K-0-20-XXX | 1.500 | 38.100 | 4.380 | 111.252 |

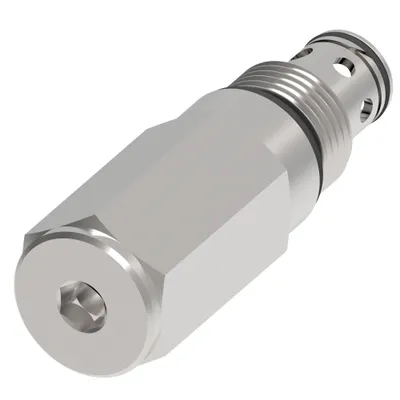

| 02-153227 | RV1-10-N-I-0-3-XXX | 1.000 | — | 3.330 | 84.582 |
| 02-153226 | RV2-10-K-0-20-XXX | 1.500 | — | 4.380 | 111.252 |
| 02-153220 | RV3A-10-S-0-9-XXX | 1.000 | — | 4.380 | 111.252 |

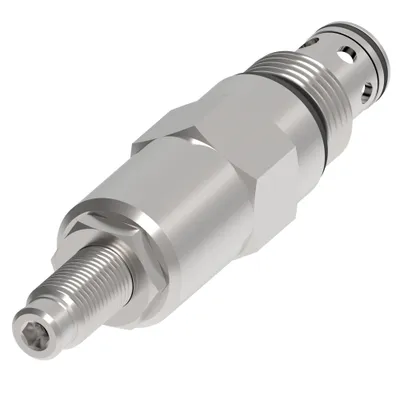

| 02-153219 | RV3A-10-S-0-18 | 1.000 | 25.400 | 4.380 | 111.252 |

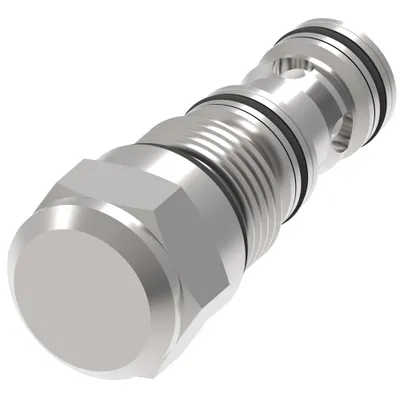

| 02-151021 | DPS2-10-R-F-0-040 | 1.000 | 25.400 | 3.750 | 95.250 |

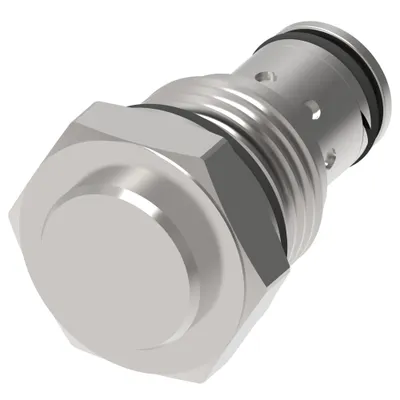

| 02-151017 | CV1-16-V-P-0-5 | 1.500 | 38.100 | 2.260 | 57.404 |

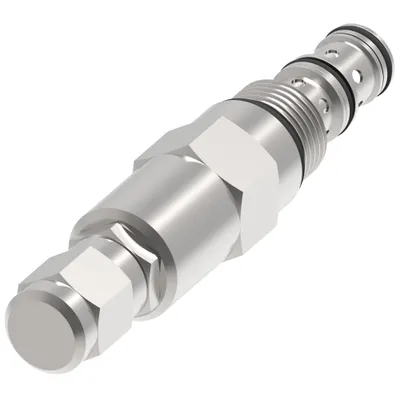

| 02-151016 | PRV2-10-C-0-35-XXX | 1.000 | 25.400 | 4.960 | 125.984 |
| 02-151007 | FDC1-16-12T-66 | 5.560 | 141.224 | 4.000 | 101.600 |
| 02-151006 | DPS2-10-T-F-0-160 | 1.000 | 25.400 | 3.750 | 95.250 |

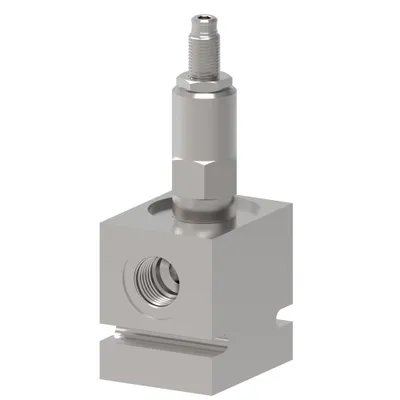

| 02-151003 | RV5-16-S-12T-30-XXX | 5.370 | — | 3.500 | 88.900 |

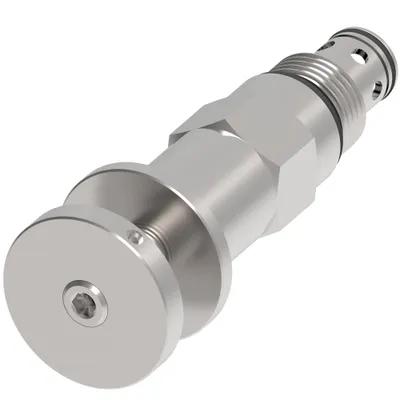

| 02-151001 | RV5-3681 | 1.000 | 25.400 | 4.760 | 120.904 |

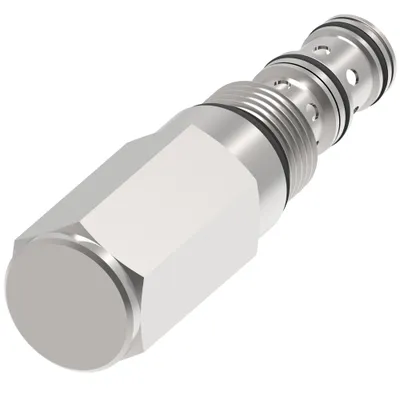

| 02-113187 | PRV1-10-F-0-6-2.5 | 1.000 | 25.400 | 3.890 | 98.806 |

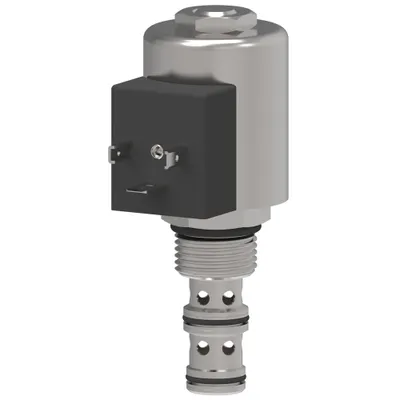

| 02-113180 | SV4-10-3-M-0-115A-G | 1.930 | 49.022 | 4.810 | 122.174 |

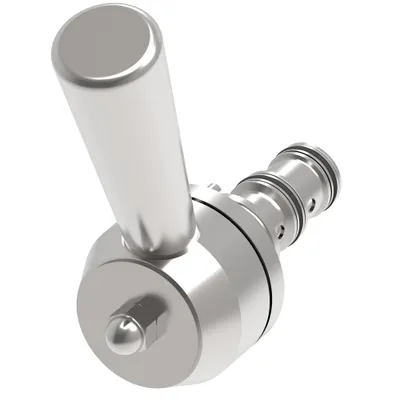

| 02-113174 | MRV3-10-V-D2-0 | 1.650 | 41.910 | 3.260 | 82.804 |

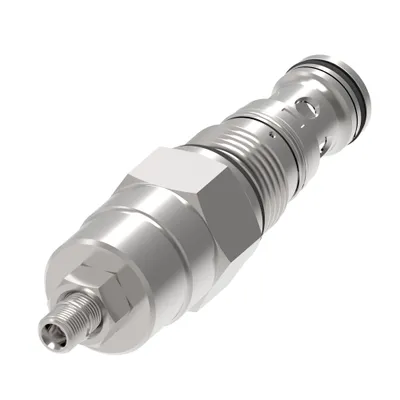

| 02-113169 | CBV1-12-S-0-B-30-XXX | 1.250 | 31.750 | 4.070 | 103.378 |

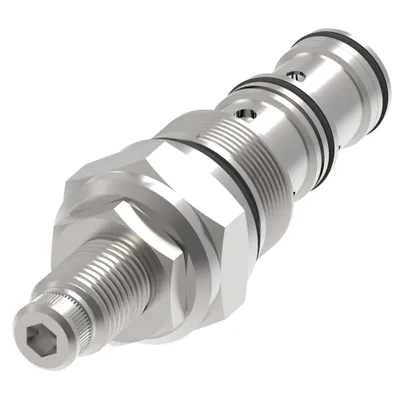

| 02-113164 | PUV3-10-S-0-80-30-XXX | 1.000 | 25.400 | 3.340 | 84.836 |
