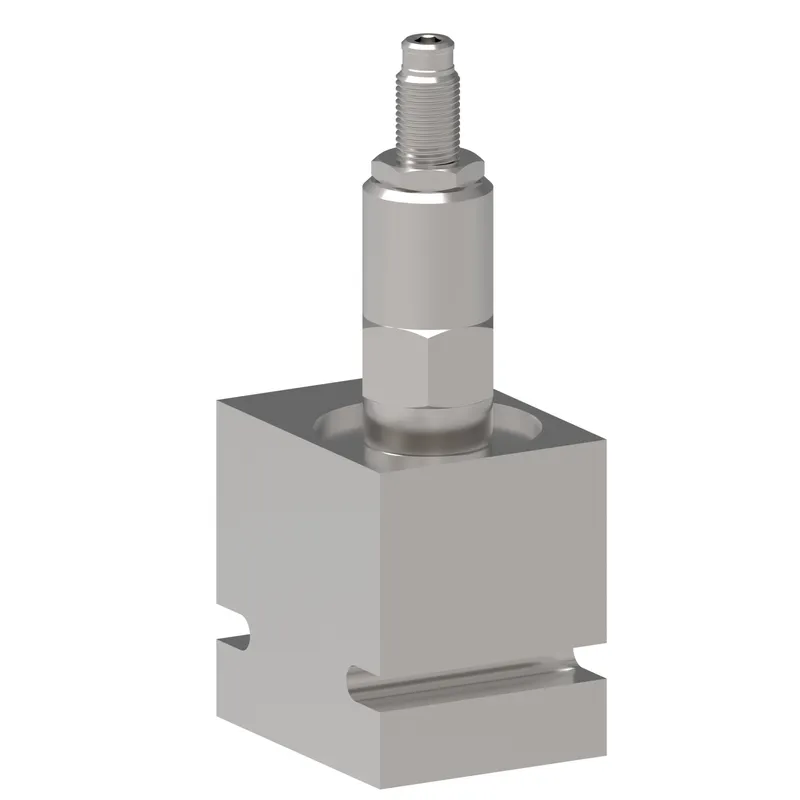

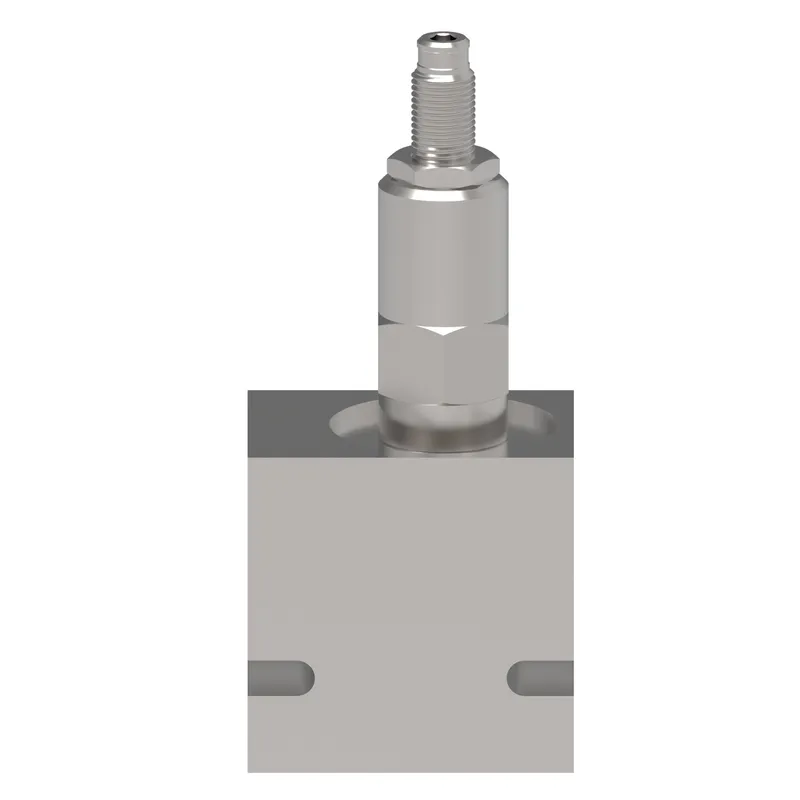

Danfoss 02-151003
RV5-16-S-12T-30/, RV5-16-S-12T-30-XXX
- MPN
- 02-151003
- Category
- Cartridge valves
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Danfoss 02-151003?
Danfoss RV5-16-S-12T-30/, RV5-16-S-12T-30-XXX, manufacturer part number 02-151003. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Adjustment type | Screw |
| Brand | Vickers by Danfoss |
| Cavity | C-16-2 |
| Factory set pressrue BAR | 103.000 |
| Factory set pressrue PSI | 1504.000 |
| Flow rate GPM | 79.00 |
| Flow rate LPM | 300.000 |
| Fluid compatibility | MIL-H-5606, SAE10, SAE20, etc |
| Function | Pressure Relief Valve |
| Housing | Yes |
| Housing material | Steel |
| Installation type | Screw-in Cartridge |
| Leakage | 164 cc/min |
| Max working pressure BAR | 210.000 |
| Max working pressure PSI | 3053.000 |
| Min working pressure BAR | 34.000 |
| Min working pressure PSI | 494.000 |
| Model Code 1 | RV5-16-S-12T-30-XXX |
| Number of housing ports | 2 |
| Number of valve ports | 2 |
| Operating temperature | -40 C to 120 C (-40 to 248 F) |
| Operation | Pilot operated |
| Port size | 3/4" |
| Port type | SAE |
| Product height in | 5.370 |
| Product length in | 3.500 |
| Product length mm | 88.900 |
| Product width in | 2.000 |
| Product width mm | 50.800 mm |
| Recommended filtration level | 18/16/13 |
| Seal type | Buna-N |
| Special features | None |
| Style | Spool |
