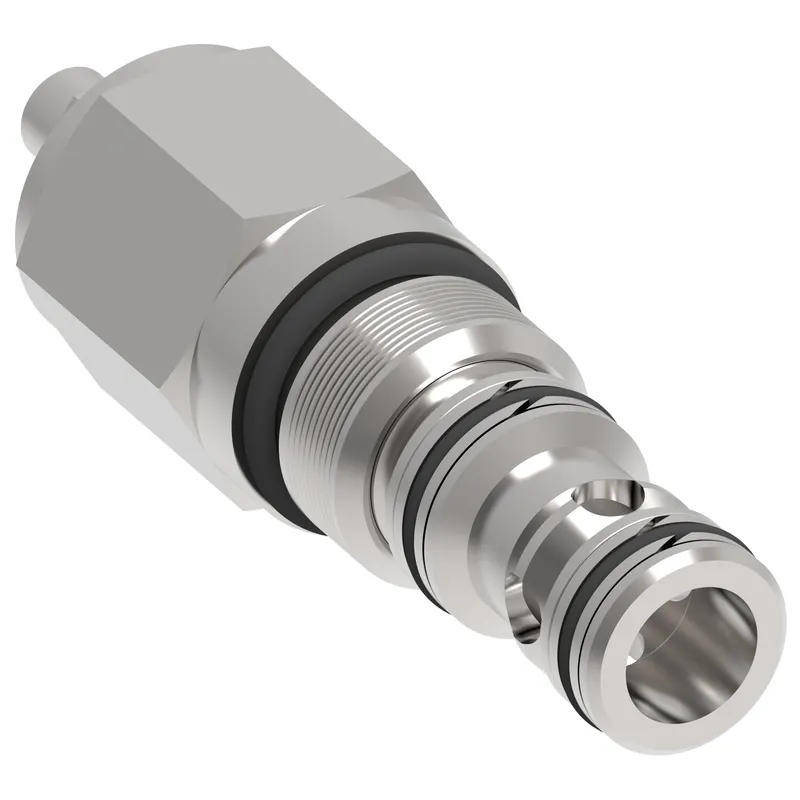

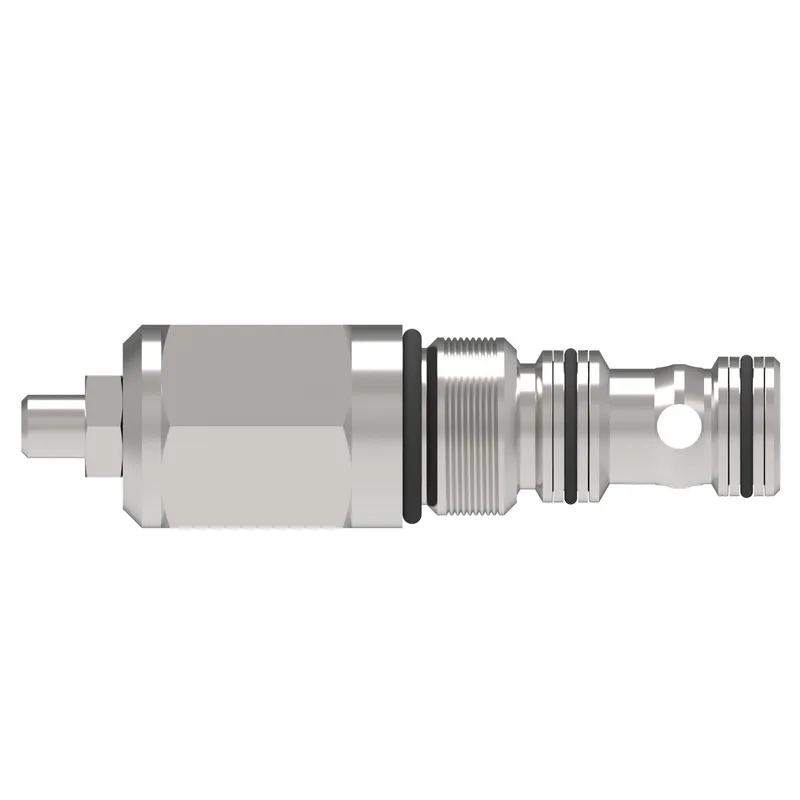

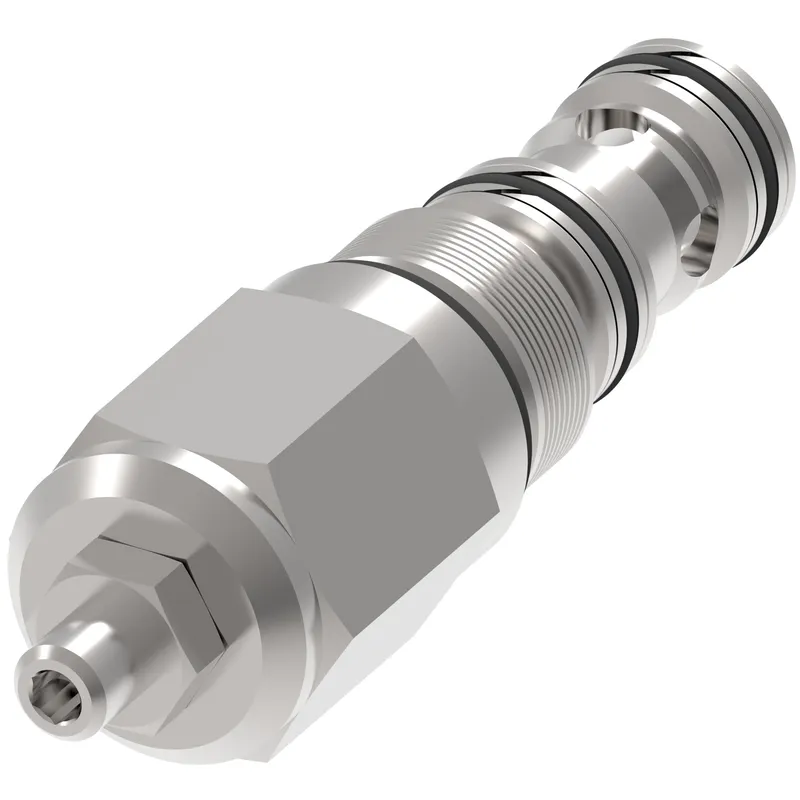

Danfoss 02-153253

DPS2-10-P-S-0-20 DIFF PRESS SENSING CART, DPS2-10-P-S-0-020

MPN: 02-153253
Category: Cartridge valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-153253?

Danfoss DPS2-10-P-S-0-20 DIFF PRESS SENSING CART, DPS2-10-P-S-0-020, manufacturer part number 02-153253. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Brand	Vickers by Danfoss
Cavity	C-10-3S
Flow rate GPM	16.000
Flow rate LPM	60.00
Fluid compatibility	MIL-H-5606, SAE10, SAE20, etc
Function	Differential Pressure Sensing
Housing	No
Installation type	Screw-in Cartridge
Leakage	246 cc/min
Model Code 1	DPS2-10-P-S-0-020
Normal function	Spool, Normally Closed, LS
Number housing ports	3
Number of valve port	3
Operating temp	-40 C to 120 C (-40 to 248 F)
Pilot ratio	1:1
Port type	Cartridge Only
Pressure differential BAR	1.37
Pressure differential PSI	20.00
Pressure rating BAR	290.00
Pressure rating PSI	4200.00
Product height in	1.000
Product height mm	25.400
Product length in	3.750
Product length mm	95.250
Product width in	1.000
Product width mm	25.400 mm
Rec filtration level	18/16/13
Seal type	Buna-N
Special features	None
Spring	20 psi
Stroke adjustment	Screw
Style	Spool
