Home / Hydraulic valves / Cartridge valves

Cartridge valves Parts

Browse Subcategories

Directional control (0)Electro-proportional (0)Flow control (0)Load holding (0)Multifunction (0)Pressure control (0)Safety valves (PED) (0)Solenoid on/off (0)

Danfoss

Danfoss

Danfoss

Danfoss

Danfoss

Danfoss

Danfoss

Danfoss

Danfoss

Danfoss

Danfoss

Danfoss

Danfoss

Danfoss

Danfoss

Danfoss

Danfoss

Danfoss

Danfoss

SV1-10-C-8H-12DG 2/2 SOL/OP VLV 12VAC 8H, SV1-10-C-8H-12D-G

Danfoss

02-166887

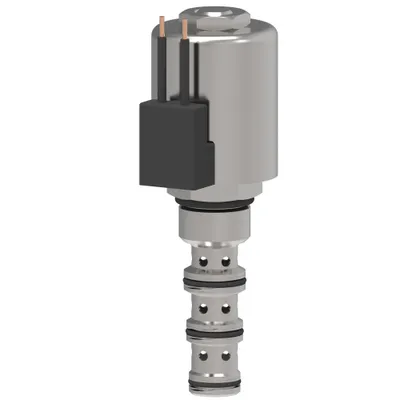

SV1-10-4-0-24DW 4/2 SOL/OP CART 24VDC, SV1-10-4-0-24D-W-B

Danfoss

02-166861

Danfoss

02-166854

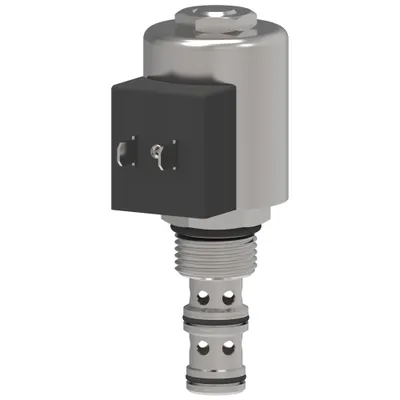

SV1-10-3-0-20DT 3/2 SOL/OP CART 20VDC, SV1-10-3-0-20DT

Danfoss

02-166813

Danfoss

02-166725

Compare Cartridge valves

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Model Code 1	Product height in	Product height mm	Product length in	Product length mm
02-167083	SV4-10-C-6T-115A-P	4.750	120.650	2.500	63.500

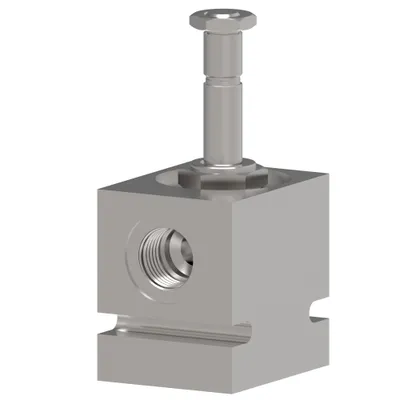

02-167074	SV4-10-C-6T-24D-P	4.750	120.650	2.500	63.500
02-167071	SV4-10-C-8H-115A-P	4.750	120.650	2.500	63.500

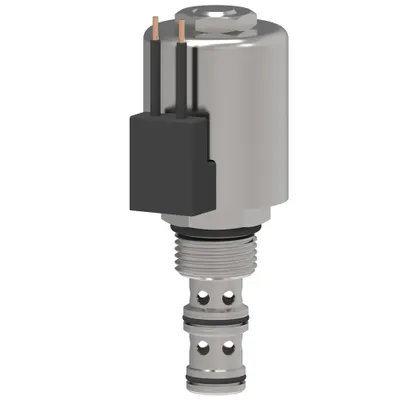

02-167070	SV4-10-3-0-24D-W-B	1.930	49.022	4.810	122.174
02-167056	SV4-10-V-O-0-00	1.930	49.022	3.500	88.900
02-167046	SV4-10-V-3-0-24D-G	1.930	49.022	4.810	122.174
02-167044	SV4-10-V-C-0-00	1.000	25.400	3.500	88.900
02-167018	SV5-10-O-0-12DW	1.920	48.768	4.000	101.600

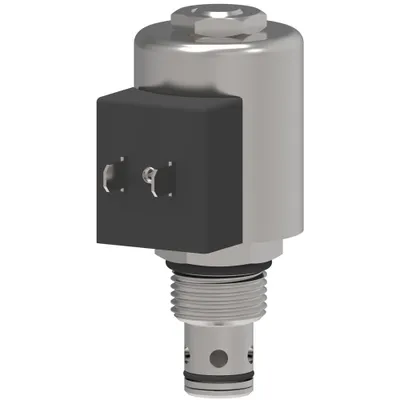

02-167015	SV5-10-O-0-24D-T	1.920	48.768	4.000	101.600
02-166998	SV5-10-O-M-0-00	1.920	48.768	4.000	101.600
02-166997	SV5-10-O-M-0-24DG	1.920	48.768	4.000	101.600
02-166995	SV5-10-V-O-0-00	1.920	48.768	4.000	101.600
02-166940	SV3-10-C-6T-12D-G	4.750	120.650	2.500	63.500

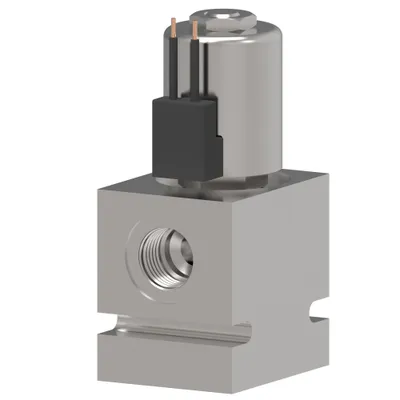

02-166937	SV3-10-O-6T-12D-W-B	5.270	133.858	2.500	63.500
02-166931	SV4-10-C-6T-24D-W-B	4.750	120.650	2.500	63.500

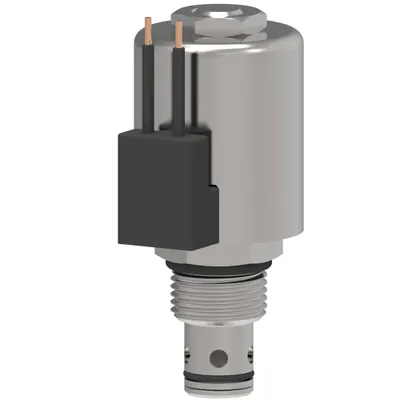

02-166930	SV4-10-O-6T-24D-W-B	4.750	120.650	2.500	63.500
02-166926	SV3-10-C-8H-115AG	4.750	120.650	2.500	63.500
02-166917	SV3-10-O-F-0-00	1.930	49.022	4.000	101.600
02-166908	SV1-10-C-8H-12D-G	4.750	120.650	2.500	63.500
02-166887	SV1-10-4-0-24D-W-B	1.930	49.022	4.700	119.380
02-166861	SV4-10-C-0-12D-T	1.930	49.022	3.500	88.900
02-166854	SV1-10-3-0-20DT	1.920	48.768	4.000	101.600
02-166813	SV3-10-O-6H-115A-G	5.270	133.858	2.500	63.500
02-166725	SV4-10-3-M-6T-24DP	5.970	151.638	2.970	75.438

Common to all listed parts

Installation type

Screw-in Cartridge
