Danfoss 02-166861

Cartridge valve

MPN: 02-166861
Category: Cartridge valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-166861?

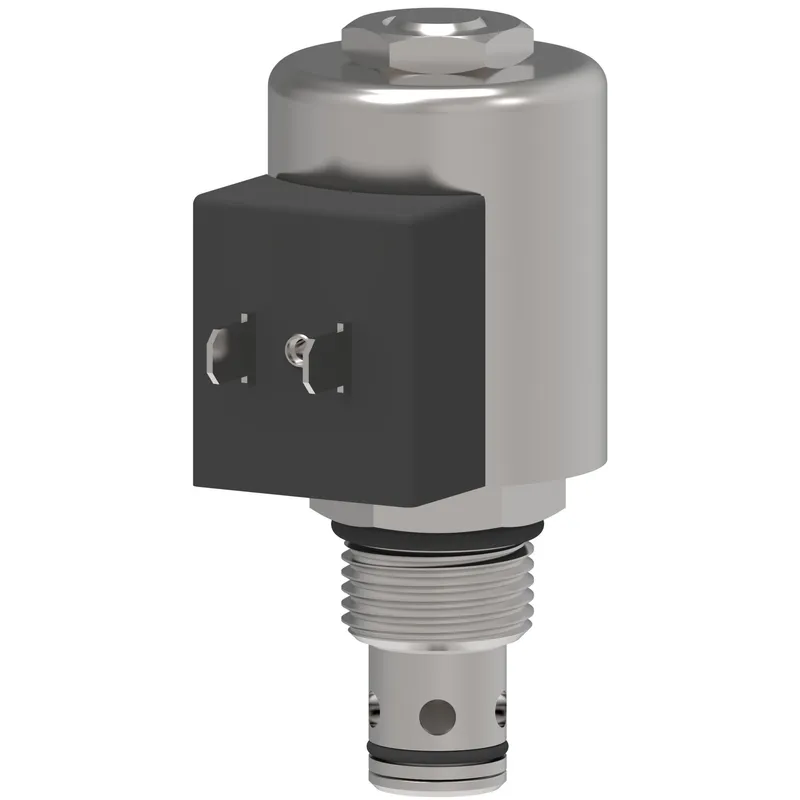

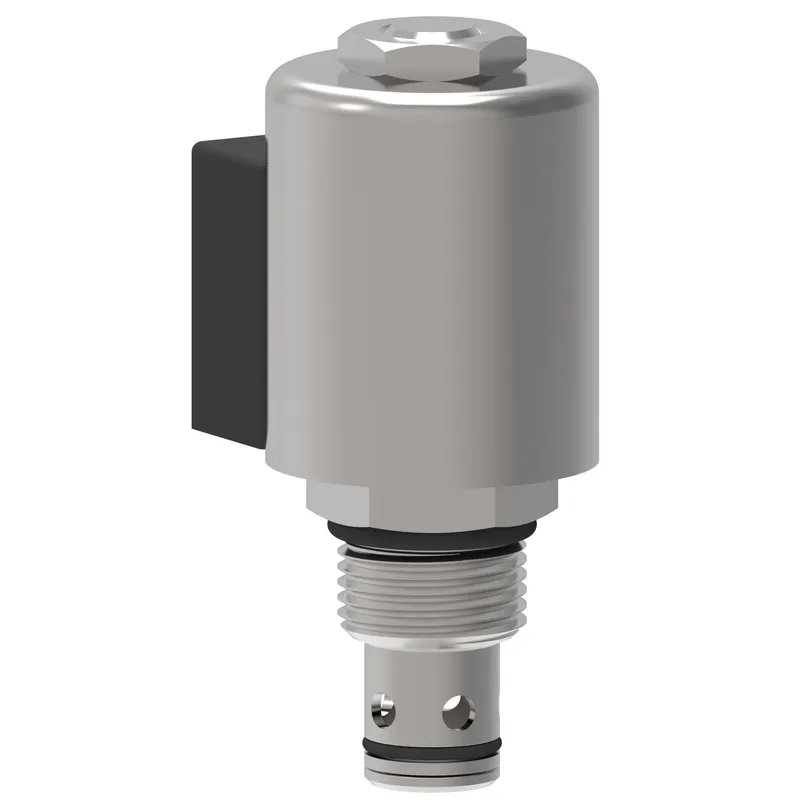

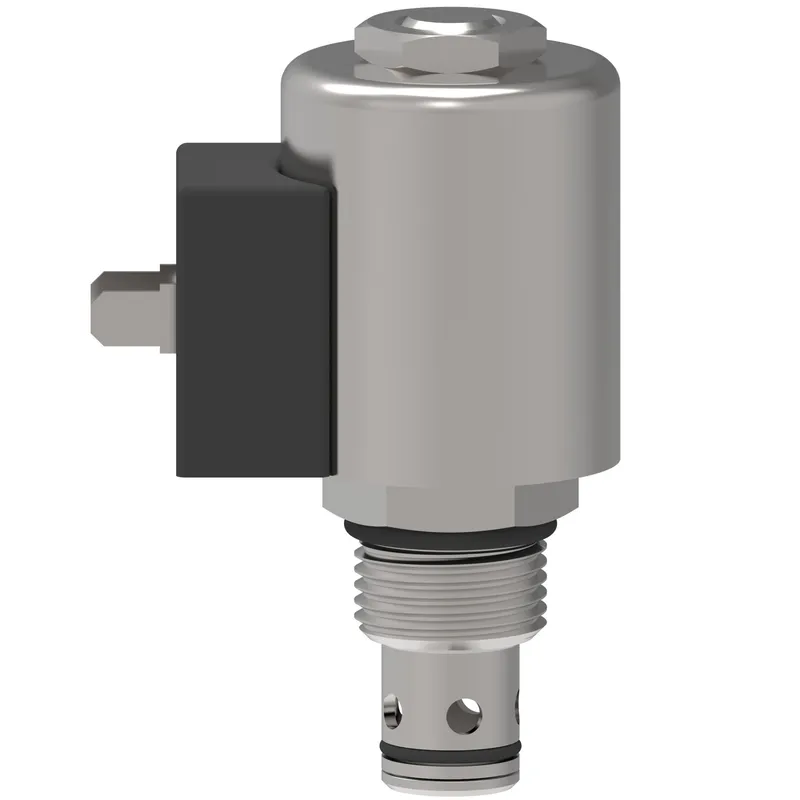

Danfoss SV4-10-C-0-12DT, SV4-10-C-0-12D-T, manufacturer part number 02-166861. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Brand	Vickers by Danfoss
Cavity	C-10-2
Coil series	J Series
Coil termination	Spade
Diode	No
Flow rate GPM	6.00
Flow rate LPM	23.000
Fluid compatibility	MIL-H-5606, SAE10, SAE20, etc
Function	Solenoid Valve
Housing	No
Installation type	Screw-in Cartridge
Leakage	82 cm3/min (5 in3/min) max @ 210 bar
Model Code 1	SV4-10-C-0-12D-T
Operating temperature	-40 C to 120 C (-40 to 248 F)
Operation	Electrically operated
Override type	None
Port size	None
Port type	Cartridge Only
Pressure rating BAR	210.00
Pressure rating PSI	3000.00
Product height in	1.930
Product height mm	49.022
Product length in	3.500
Product length mm	88.900
Product width in	1.530
Product width mm	38.862 mm
Recommended filtration level	18/16/13
Seal type	Buna-N
Special features	None
Style	2-Way, 2-Position, Poppet, NC
Voltage	12 V
Voltage type	DC

02-166861: frequently asked questions

When can 02-166861 be shipped?

02-166861 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 02-166861 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 02-166861 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-166861, subject to availability and destination.
