Danfoss 02-166930

Cartridge valve

MPN: 02-166930
Category: Cartridge valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-166930?

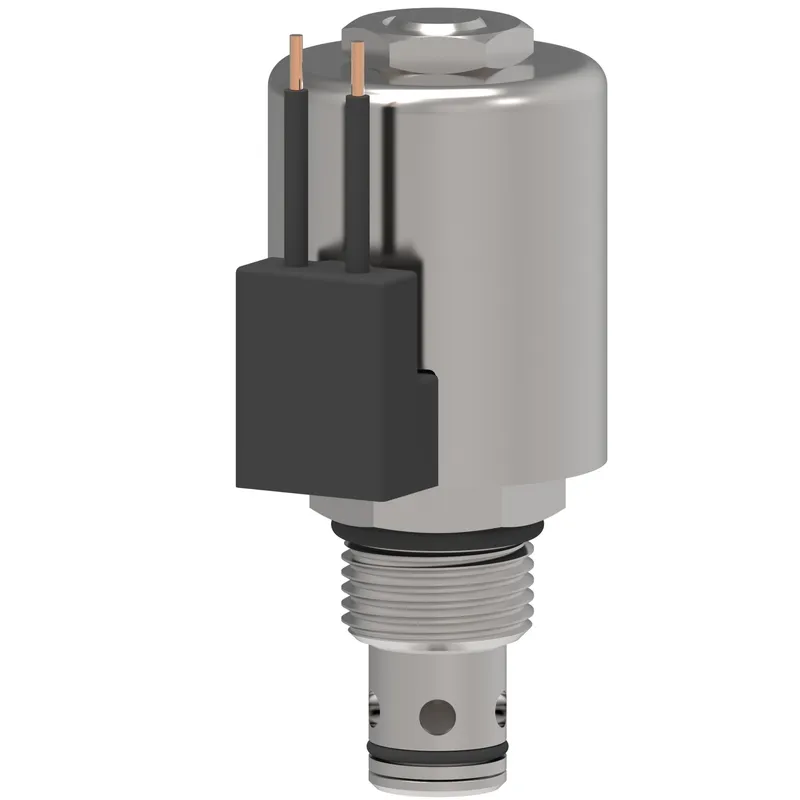

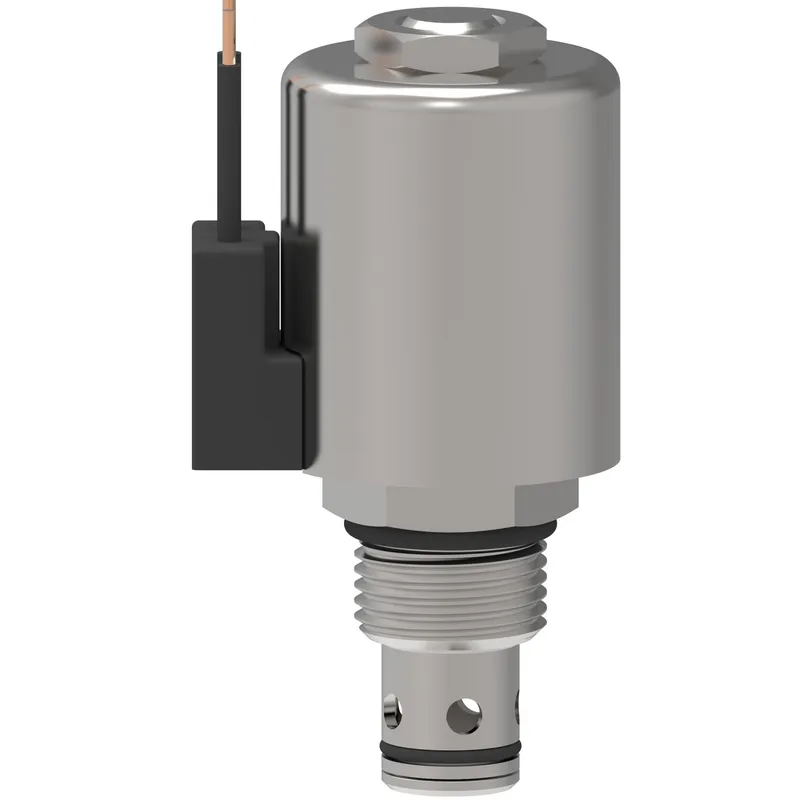

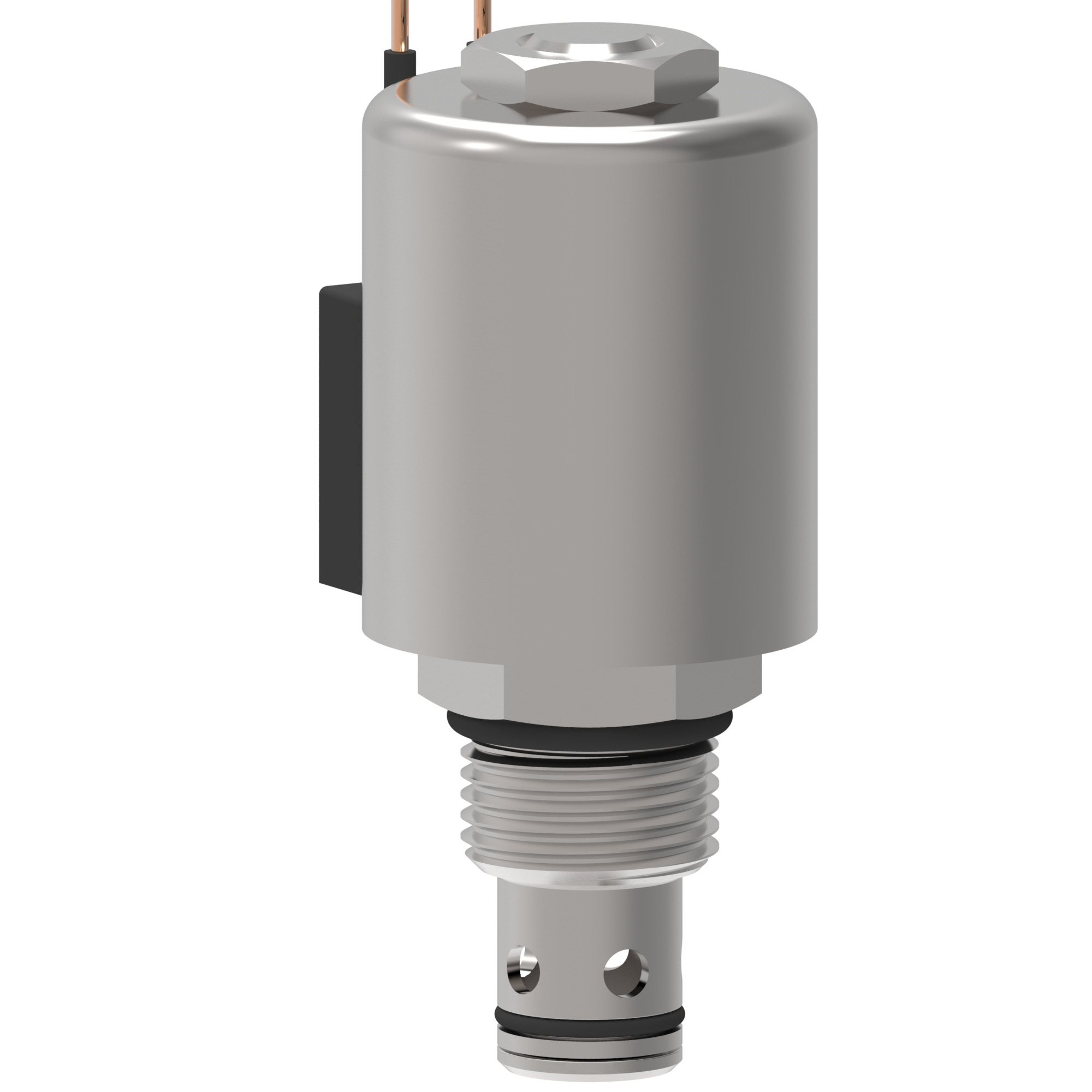

Danfoss SV4-10-0-6T-24DW, SV4-10-O-6T-24D-W-B, manufacturer part number 02-166930. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Brand	Vickers by Danfoss
Cavity	C-10-2
Coil series	J Series
Coil termination	Flying Leads
Diode	No
Flow rate GPM	6.00
Flow rate LPM	23.000
Fluid compatibility	MIL-H-5606, SAE10, SAE20, etc
Function	Solenoid Valve
Housing	Yes
Housing material	Aluminum
Installation type	Screw-in Cartridge
Leakage	8.5 in3/min
Model Code 1	SV4-10-O-6T-24D-W-B
Number of housing ports	2
Number of valve ports	2
Operating temperature	-40 C to 100 C (-40 to 212 F)
Operation	Electrically operated
Override type	None
Port size	3/8"
Port type	SAE
Pressure rating BAR	210.00
Pressure rating PSI	3000.00
Product height in	4.750
Product height mm	120.650
Product length in	2.500
Product length mm	63.500
Product width in	2.000
Product width mm	50.800 mm
Recommended filtration level	18/16/13
Seal type	Buna-N
Special features	None
Style	4-Way 2-Position, Spool
Torque into aluminium cavity	47-54 Nm
Voltage	24 V
Voltage type	DC
