Cartridge valves Parts
Browse Subcategories
Compare Cartridge valves
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Model Code 1 | Product height in | Product height mm | Product length in | Product length mm |
|---|---|---|---|---|---|

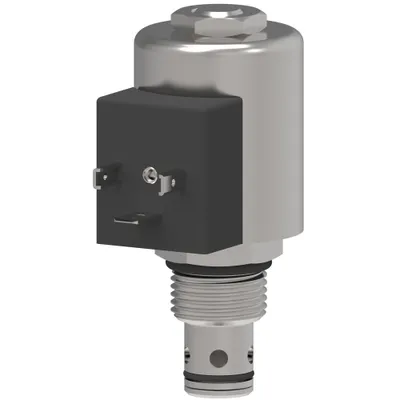

| 02-176487 | SV5-8-C-0-24D-G-S | 1.640 | 41.656 | 3.080 | 78.232 |

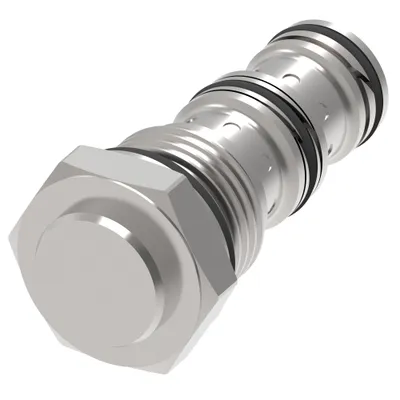

| 02-176469 | PFR5-10-F-0-5.0 | 1.000 | 25.400 | 2.630 | 66.802 |

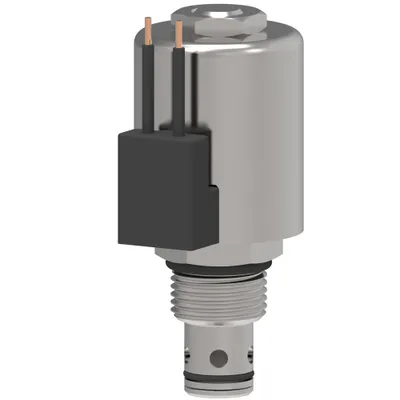

| 02-176456 | SV4-8-C-0-12D-W-B-S | 1.640 | 41.656 | 3.090 | 78.486 |

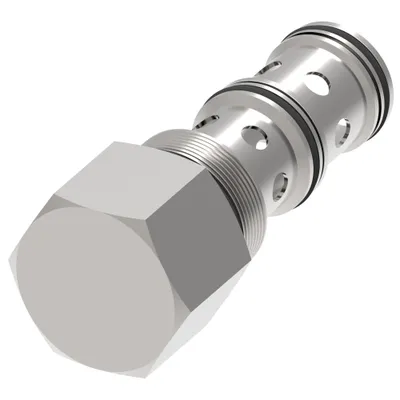

| 02-176417 | PFR1-16-F-0-30.0 | 1.500 | 38.100 | 3.870 | 98.298 |

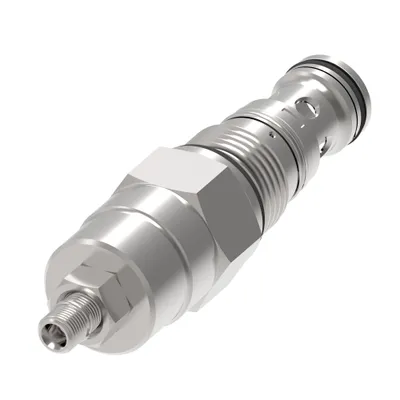

| 02-176414 | CBV1-12-S-0-A-30-30 | 1.250 | 31.750 | 4.070 | 103.378 |
| 02-176346 | DSV3-8-V-B-S-6T | 1.720 | 43.688 | 1.870 | 47.498 |
| 02-176345 | DSV3-8-B-S-6T | 1.720 | 43.688 | 1.870 | 47.498 |
| 02-176344 | DSV3-8-B-S-2 | 1.720 | 43.688 | 1.250 | 31.750 |

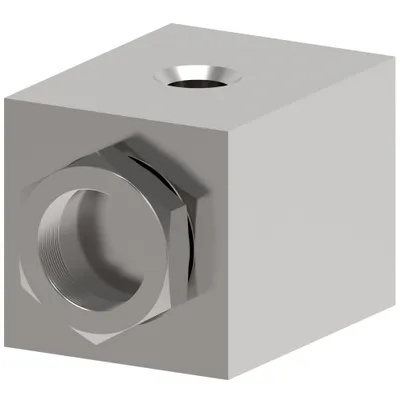

| 02-176336 | DSV3-12-V-B-S-8T | 2.250 | 57.150 | 1.500 | 38.100 |
| 02-176335 | DSV3-12-V-B-A-8T | 2.000 | 50.800 | 2.500 | 63.500 |
| 02-176334 | DSV3-12-B-S-8T | 2.250 | 57.150 | 1.500 | 38.100 |
| 02-176333 | DSV3-12-V-B-A-8T | 2.000 | 50.800 | 2.500 | 63.500 |

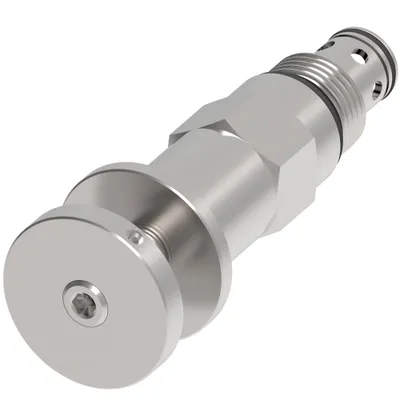

| 02-176312 | RV1-8-K-0-36-36 | 1.250 | 31.750 | 4.210 | 106.934 |

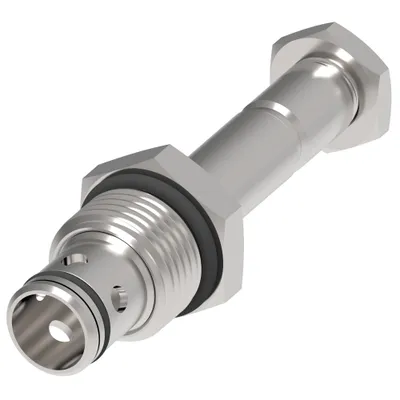

| 02-176266 | SV5-8-C-0-12D-F-S | 1.640 | 41.656 | 3.080 | 78.232 |

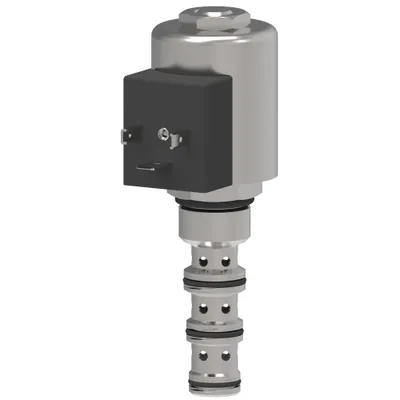

| 02-176126 | SV1-8-4-0-12D-G-S | 1.640 | 41.656 | 4.150 | 105.410 |

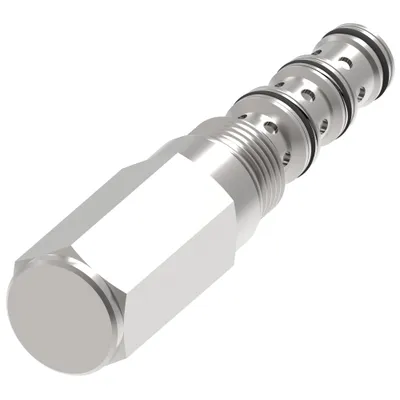

| 02-176118 | PSV8-10-I-0-2-0.50 | 1.000 | 25.400 | 4.720 | 119.888 |

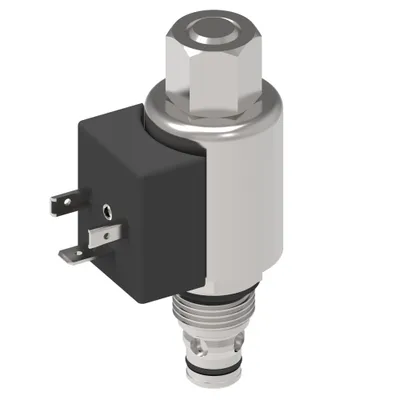

| 02-176105 | SV5-8-O-0-24D-G-S | 1.640 | 41.656 | 3.090 | 78.486 |
| 02-176046 | CBV1-10-S-0-A-30-22 | 1.250 | 31.750 | 4.900 | 124.460 |

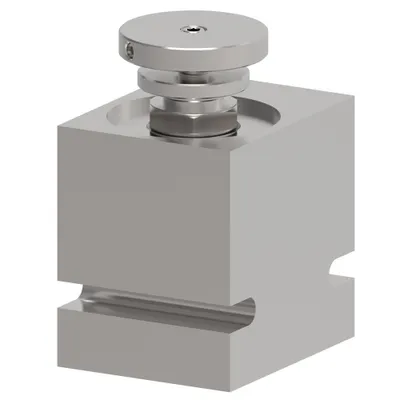

| 02-175981 | NV1-20-K-16T | 6.440 | 163.576 | 4.000 | 101.600 |

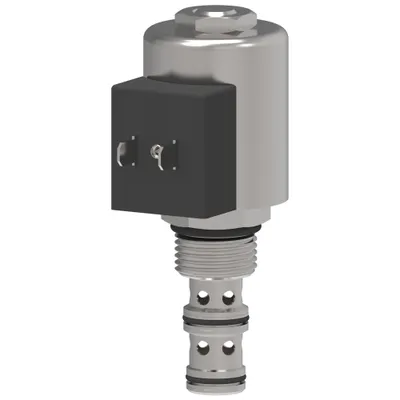

| 02-175972 | SV1-8-3-0-12D-Q-S | 1.620 | 41.148 | 3.600 | 91.440 |

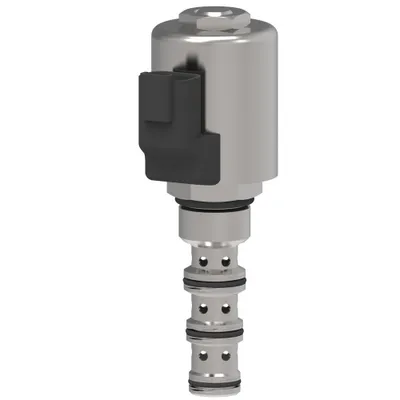

| 02-175897 | SV1-8-4-0-12D-N-S | 1.640 | 41.656 | 4.150 | 105.410 |

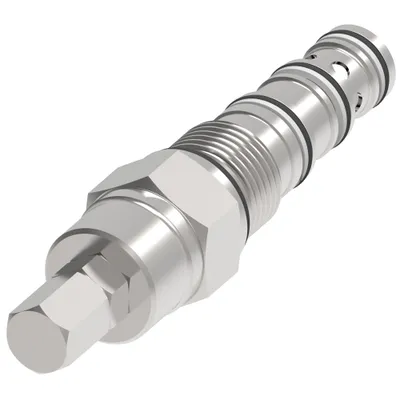

| 02-175834 | VCB1-10-C-0-A-30-XXX | 1.000 | 25.400 | 4.280 | 108.712 |

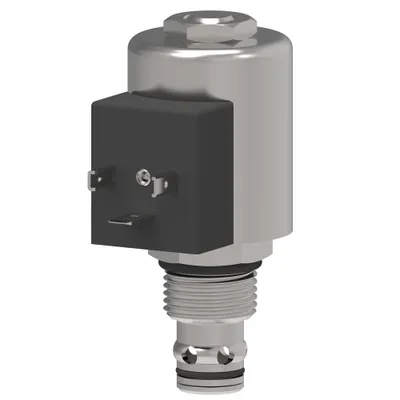

| 02-175824 | SV13-16-V-C-0-00 | 1.920 | 48.768 | 4.280 | 108.712 |
| 02-175813 | SV13-10-O-0-00 | 1.920 | 48.768 | 3.530 | 89.662 |
