Cartridge valves Parts

Browse Subcategories

Directional control (0)Electro-proportional (0)Flow control (0)Load holding (0)Multifunction (0)Pressure control (0)Safety valves (PED) (0)Solenoid on/off (0)

Danfoss

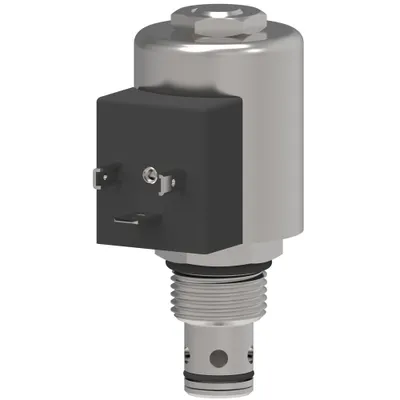

02-177152

Danfoss

02-177119

SV4-8-C-0-24DGS, SV4-8-C-0-24D-G-S

Danfoss

02-177117

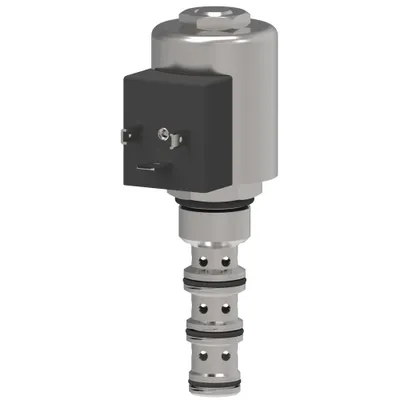

SV1-8-4-0-24DGS 4/2 SOL/OP CART 24VDC, SV1-8-4-0-24D-G-S

Danfoss

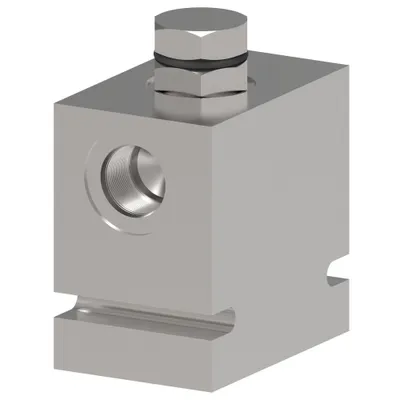

02-177116

PTS7-10-8H-80, PTS7-10-8H-80

Danfoss

02-177107

Danfoss

02-177092

SV14-8-CM-0-00 2/2 SOL/OP CART N/C M/O, SV14-8-C-M-0-00

Danfoss

02-177091

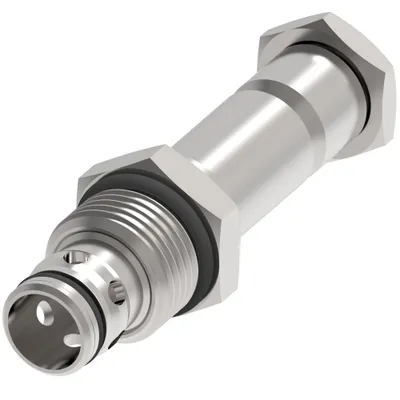

SV14-8-0M-0-002/2 SOL/OP CART N/O M/O, SV14-8-O-M-0-00

Danfoss

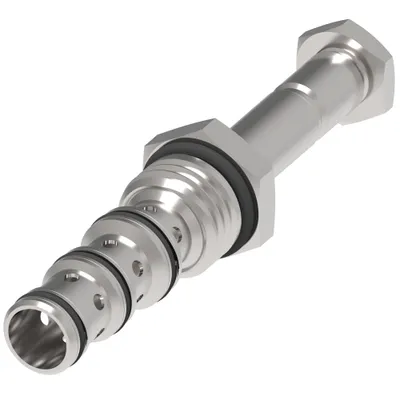

02-177074

SV11-8-4M-0-004/2 SOL/OP CART M/O, SV11-8-4-M-0-00

Danfoss

02-177000

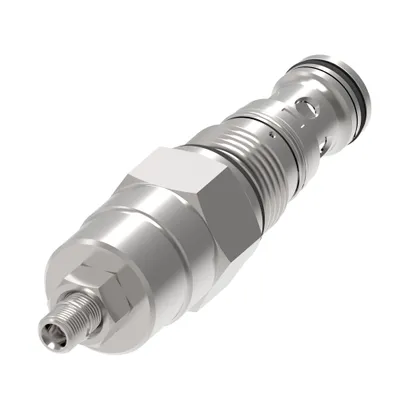

CBV1-10V-S-0-A-30/25 CNTER BLNCE CART4-1, CBV1-10-V-S-0-A-30-25

Danfoss

02-176961

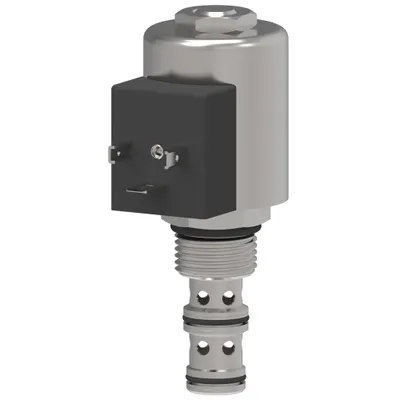

SV11-8-3-0-12DGP 3/2 SOL/OP CART 12VDC, SV11-8-3-0-12D-G-P

Danfoss

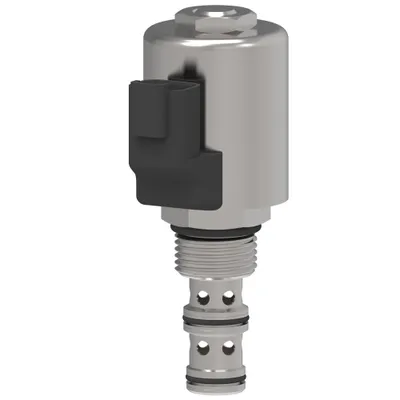

02-176953

SV1-8-3-0-12DNS 3/2 SOL/OP CART 12VDC, SV1-8-3-0-12D-N-S

Danfoss

02-176909

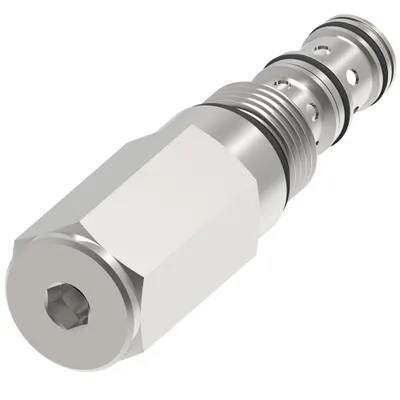

PRV2-10-I-0-20/6, PRV2-10-I-0-20-6

Danfoss

02-176847

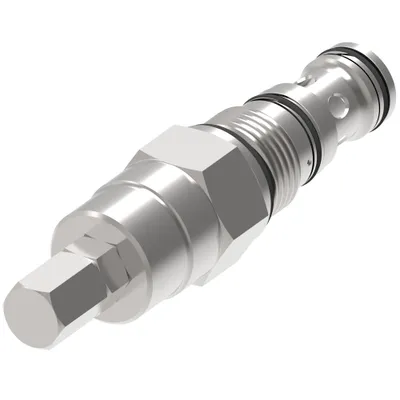

CBV1-10-C-0-A-30/27.5CNTRBLNCE CART 4-1, CBV1-10-C-0-A-30-27.5

Danfoss

02-176838

Danfoss

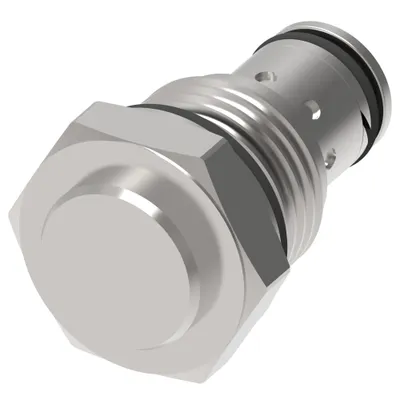

02-176797

CV3-8V-P-0-060 CHECK CART POPPET TYPE, CV3-8-V-P-0-060

Danfoss

02-176785

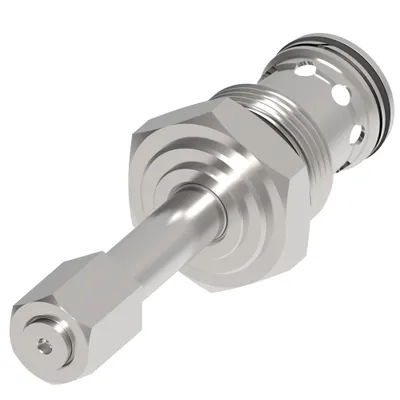

ERV1-16-8.00-0-00, ERV1-16-8.00-0-00

Danfoss

02-176784

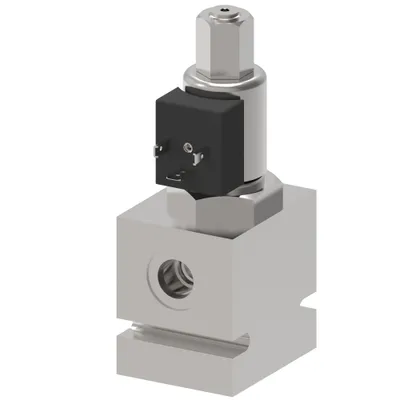

ERV1-16-8.00-12T-24DG, ERV1-16-8.00-12T-24D-G

Danfoss

02-176631

PFR5-10-F-0-6.00, PFR5-10-F-0-6.0

Danfoss

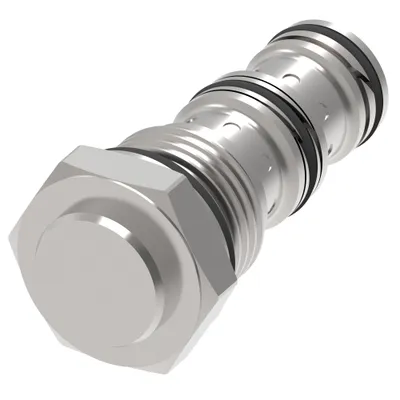

02-176630

PFR5-10-F-0-3.00, PFR5-10-F-0-3.0

Danfoss

02-176577

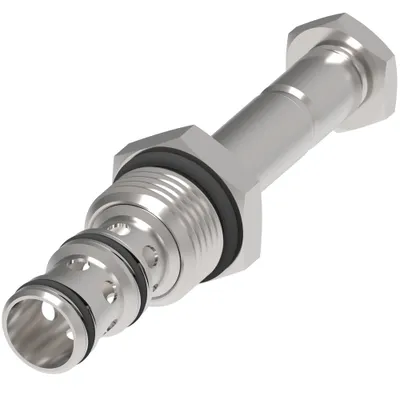

SV11-8-3M-0-003/2 SOL/OP CART M/O, SV11-8-3-M-0-00

Danfoss

Danfoss

Danfoss

Danfoss

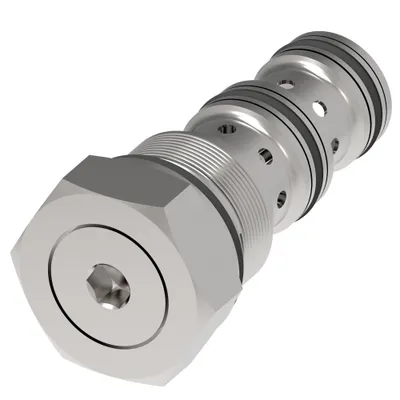

DSV2-8V-B-0SHUTTLE CART, DSV2-8-V-B-0

Compare Cartridge valves

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Model Code 1	Product height in	Product height mm	Product length in	Product length mm
02-177152	SV3-10-C-0-100A-G	1.920	48.768	3.500	88.900
02-177119	SV4-8-C-0-24D-G-S	1.640	41.656	3.090	78.486
02-177117	SV1-8-4-0-24D-G-S	1.640	41.656	4.150	105.410
02-177116	PTS7-10-8H-80	3.720	94.488	3.000	76.200
02-177107	SV11-8-4-0-24D-G-P	1.640	41.656	4.150	105.410
02-177092	SV14-8-C-M-0-00	3.000	76.200	1.640	41.656
02-177091	SV14-8-O-M-0-00	1.640	41.656	3.390	86.106
02-177074	SV11-8-4-M-0-00	1.640	41.656	4.150	105.410
02-177000	CBV1-10-V-S-0-A-30-25	1.250	31.750	4.900	124.460
02-176961	SV11-8-3-0-12D-G-P	1.640	41.656	3.600	91.440
02-176953	SV1-8-3-0-12D-N-S	1.620	41.148	3.600	91.440
02-176909	PRV2-10-I-0-20-6	1.000	25.400	3.890	98.806
02-176847	CBV1-10-C-0-A-30-27.5	1.250	31.750	4.900	124.460
02-176838	SV4-10-3-0-24D-Q	1.930	49.022	4.810	122.174
02-176797	CV3-8-V-P-0-060	0.870	22.098	1.430	36.322
02-176785	ERV1-16-8.00-0-00	—	—	—	—
02-176784	ERV1-16-8.00-12T-24D-G	6.500	165.100	3.500	88.900
02-176631	PFR5-10-F-0-6.0	1.000	25.400	2.630	66.802
02-176630	PFR5-10-F-0-3.0	1.000	25.400	2.630	66.802
02-176577	SV11-8-3-M-0-00	1.640	41.656	3.600	91.440
02-176557	SV4-8-V-C-0-00	0.870	22.098	3.090	78.486

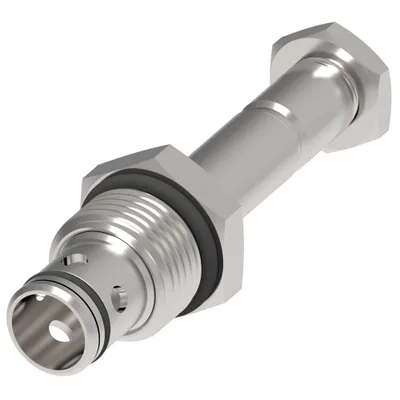

02-176555	SV4-8-V-O-0-00	1.640	41.656	3.090	78.486
02-176528	SV13-10-C-0-24D-G-H	1.920	48.768	3.530	89.662
02-176523	DSV2-8-V-B-0	0.875	22.225	1.940	49.276

Common to all listed parts

Installation type

Screw-in Cartridge
