Danfoss
02-175827
Danfoss 02-175834

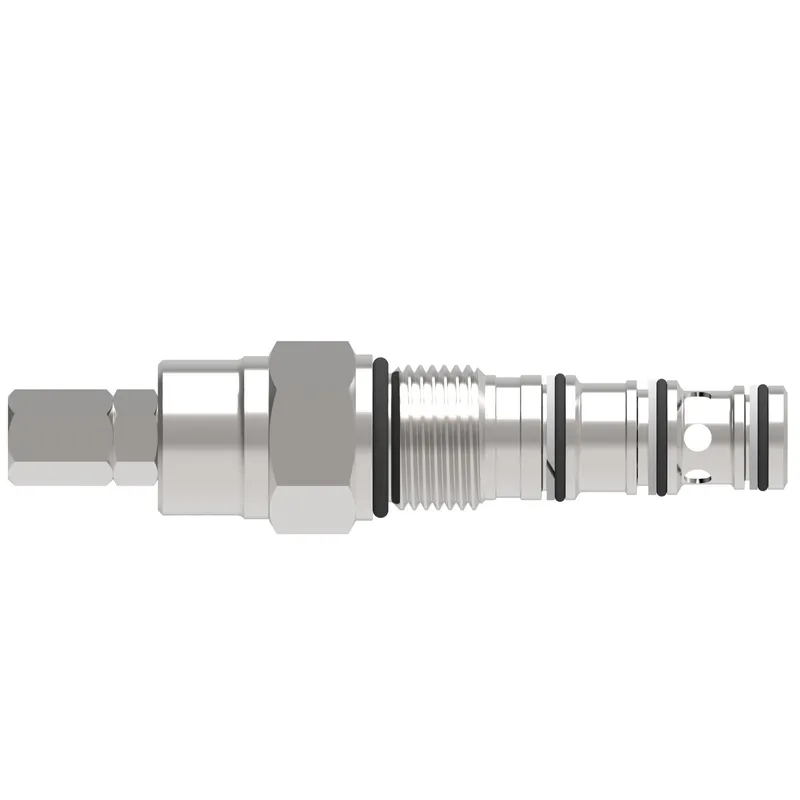

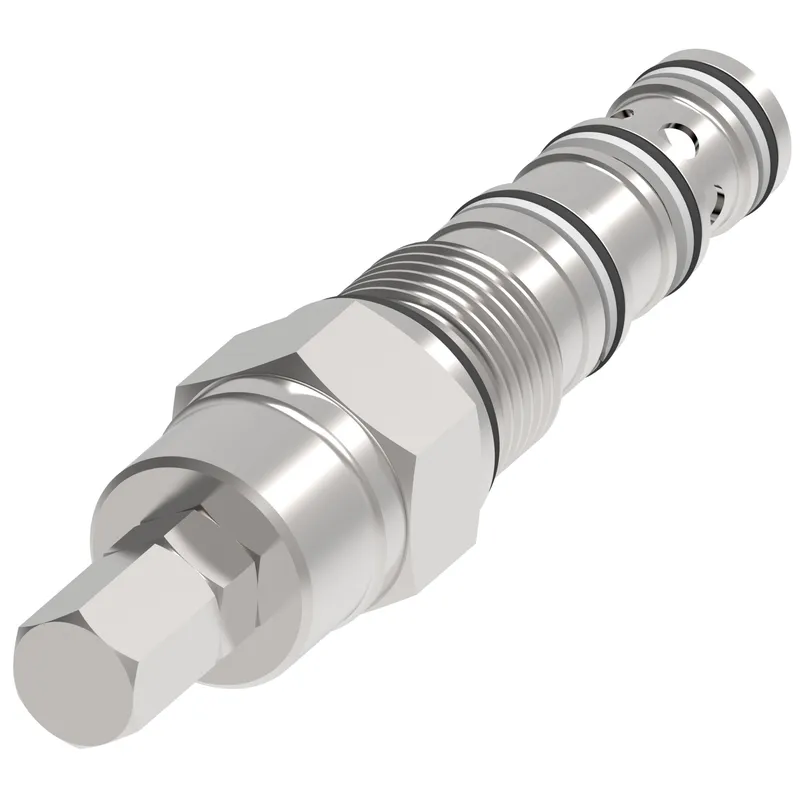

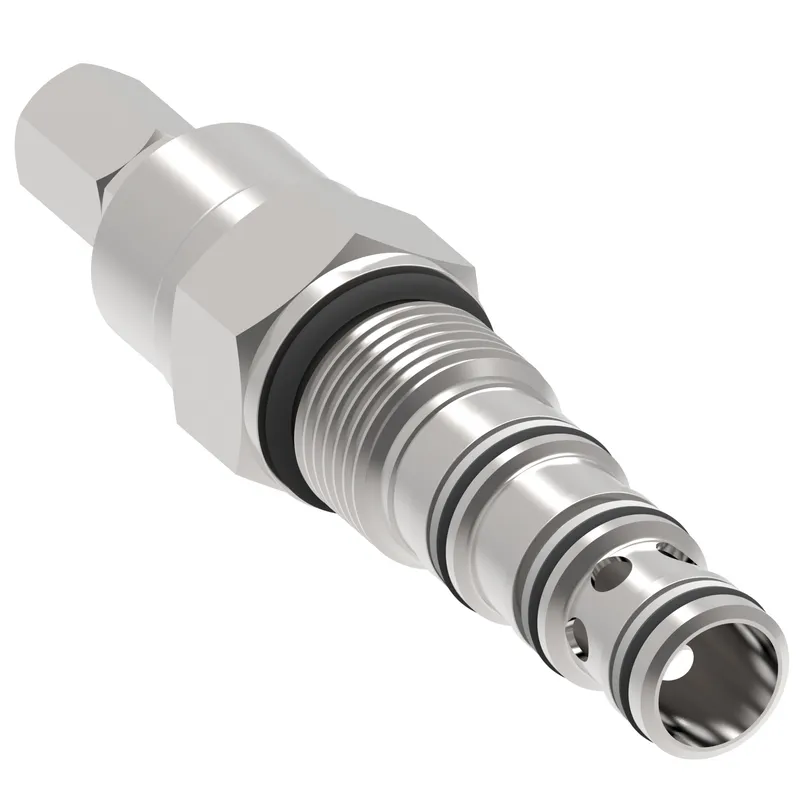

VCB1-10-C-0-A-30/, VCB1-10-C-0-A-30-XXX
- MPN
- 02-175834
- Category
- Cartridge valves
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Danfoss 02-175834?
Danfoss VCB1-10-C-0-A-30/, VCB1-10-C-0-A-30-XXX, manufacturer part number 02-175834. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Adjustment type | Cap |
| Brand | Vickers by Danfoss |
| Cavity | C-10-3-S |
| Flow rate GPM | 16.00 |
| Flow rate LPM | 60.000 |
| Fluid compatibility | MIL-H-5606, SAE10, SAE20, etc |
| Function | Counterbalance Valve |
| Housing | No |
| Installation type | Screw-in Cartridge |
| Leakage | 5 dpm |
| Max pilot adjust p BAR | 37.000 |
| Max pilot adjust p PSI | 544.000 |
| Max relief press BAR | 350.000 |
| Max relief press PSI | 5000.000 |
| Min pilot adjust p BAR | 31.000 |
| Min pilot adjust p PSI | 445.000 |
| Model Code 1 | VCB1-10-C-0-A-30-XXX |
| Number of housing ports | 4 |
| Number of valve ports | 4 |
| Operating temperature | -40 C to 120 C (-40 to 248 F) |
| Operation | Pilot operated |
| Pilot ratio | 4:1 |
| Port size | None |
| Port type | Cartridge Only |
| Pressure rating BAR | 350.000 |
| Pressure rating PSI | 5000.000 |
| Product height in | 1.000 |
| Product height mm | 25.400 |
| Product length in | 4.280 |
| Product length mm | 108.712 |
| Product width in | 1.000 |
| Product width mm | 25.400 mm |
| Recommended filtration level | 18/16/13 |
| Seal type | Buna-N |
| Special features | None |
| Style | Pilot assisted relief with check |
| Valve torque into cavity | 47-54 Nm |
No matching specifications
02-175834: frequently asked questions
When can 02-175834 be shipped?
02-175834 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 02-175834 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 02-175834 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-175834, subject to availability and destination.
