Danfoss 02-176118

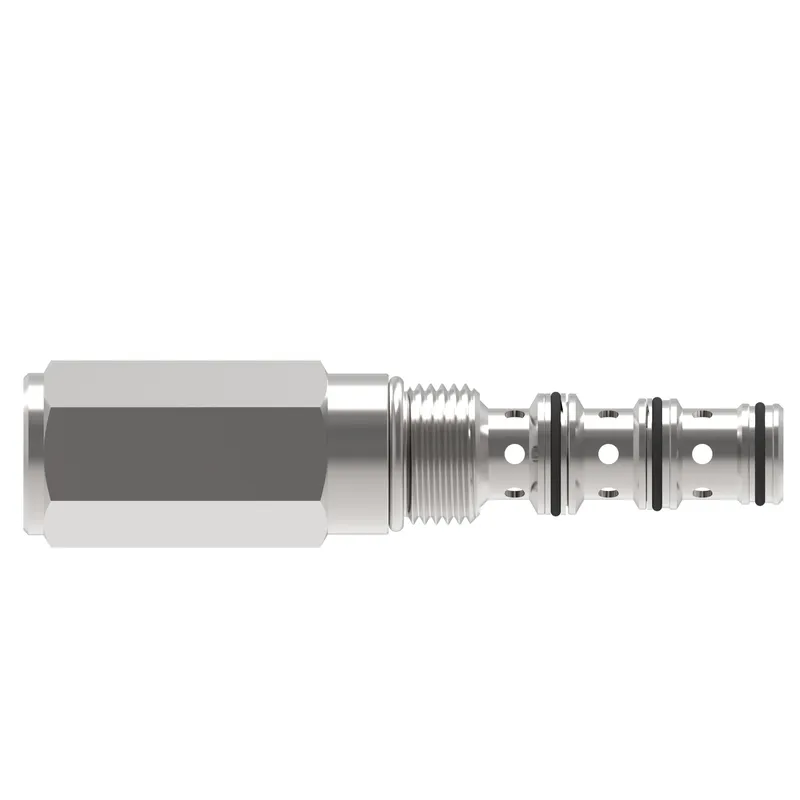

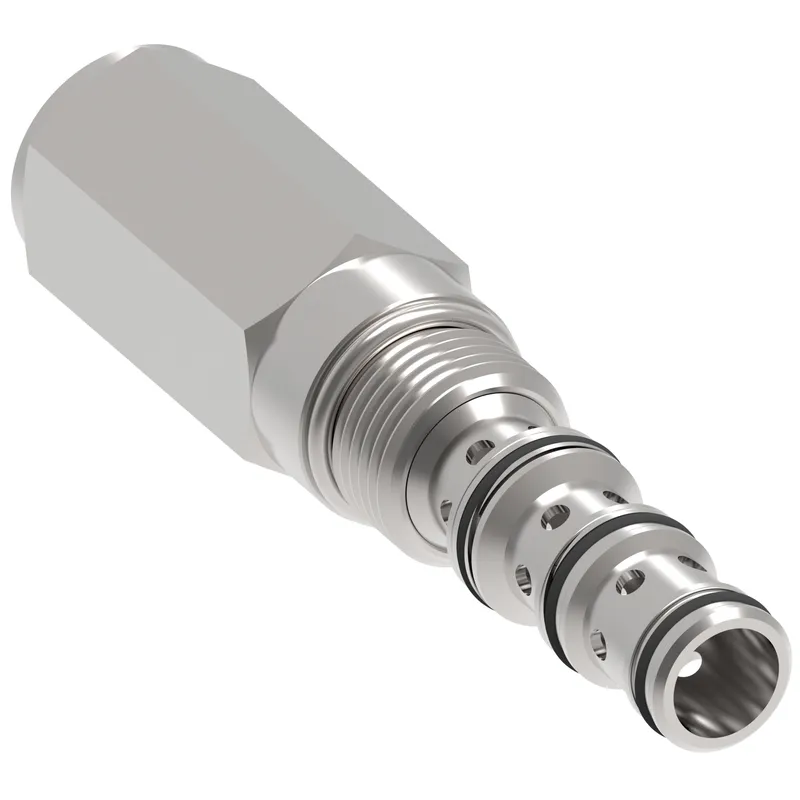

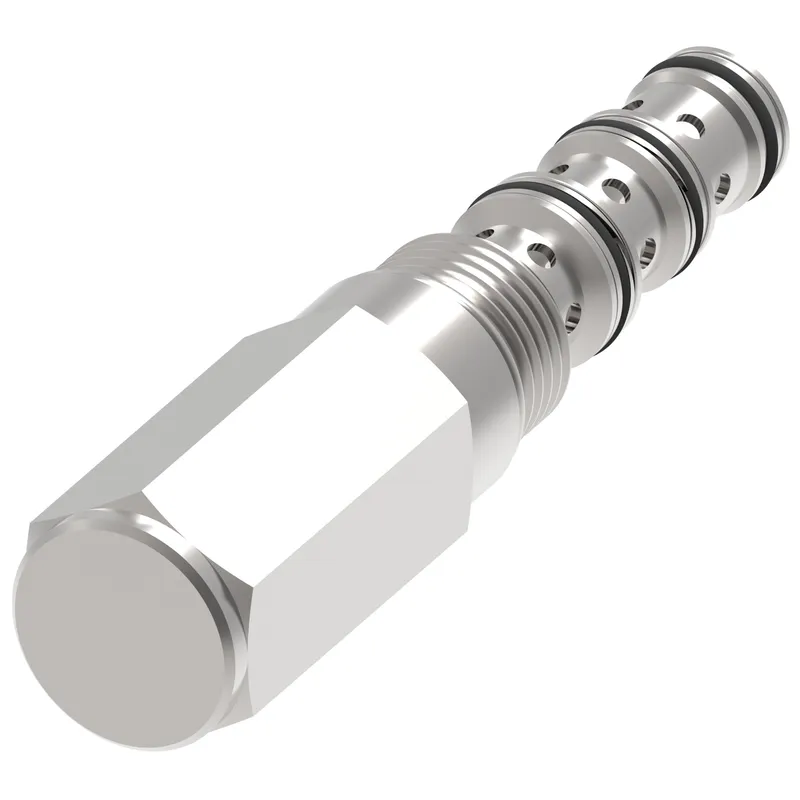

PSV8-10-I-0-2/0.50, PSV8-10-I-0-2-0.50

MPN: 02-176118
Category: Cartridge valves

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-176118?

Danfoss PSV8-10-I-0-2/0.50, PSV8-10-I-0-2-0.50, manufacturer part number 02-176118. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Adjustment type	Internal
Brand	Vickers by Danfoss
Cavity	C-10-4
Factory set pressrue BAR	3.000
Factory set pressrue PSI	50.000
Flow rate GPM	6.00
Flow rate LPM	23.000
Fluid compatibility	MIL-H-5606, SAE10, SAE20, etc
Function	Pressure Sequence Valve
Housing	No
Housing material	None
Installation type	Screw-in Cartridge
Leakage	164 cc/min
Max working pressure BAR	14.000
Max working pressure PSI	204.000
Min working pressure BAR	4.000
Min working pressure PSI	51.000
Model Code 1	PSV8-10-I-0-2-0.50
Number of housing ports	4
Number of valve ports	4
Operating temperature	-40 C to 120 C (-40 to 248 F)
Operation	Direct acting
Port size	None
Port type	Cartridge Only
Product height in	1.000
Product height mm	25.400
Product length in	4.720
Product length mm	119.888
Product width in	1.000
Product width mm	25.400 mm
Recommended filtration level	18/16/13
Seal type	Buna-N
Special features	None
Style	Spool
