Industrial hose and fittings Parts
Compare Industrial hose and fittings
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Bend radius min (inch) | Bend radius min (mm) | Burst pressure (psi) | Outside diameter (inch) | Outside diameter (mm) |
|---|---|---|---|---|---|
| EH08008 | 7.000 | 177.800 | 2500 | 1.09 | 27.69 |
| EH06612 | 5.980 | 152.000 | 1200 | 1.14 | 28.96 |
| EH06608 | 3.980 | 101.000 | 1200 | 0.85 | 21.59 |
| EH00116 | — | — | 450 | 1.52 | 38.61 |
| EC910-16C50 | 12.000 | 304.800 | 25500 | 1.51 | 38.40 |
| EC910-16 | 12.000 | 304.800 | 25500 | 1.51 | 38.40 |
| EC910-12C50 | 11.000 | 279.400 | 36250 | 1.26 | 32.00 |
| EC910-12 | 11.000 | 279.400 | 36259 | 1.29 | 32.77 |
| EC910-08C66 | 9.000 | 228.600 | 40000 | 0.97 | 24.60 |
| EC910-08C50 | 9.000 | 228.600 | 40000 | 0.97 | 24.60 |
| EC910-08 | 9.000 | 228.600 | 40000 | 0.97 | 24.60 |
| EC556-32 | 24.800 | 630.000 | 20400 | 2.81 | 71.37 |
| EC556-24MT60 | 19.690 | 500.000 | 20400 | 2.22 | 56.39 |
| EC556-24 | 19.690 | 500.000 | 20400 | 2.22 | 56.39 |
| EC556-20MT60 | 18.110 | 460.000 | 20400 | 1.78 | 45.21 |
| EC556-20 | 18.110 | 460.000 | 20400 | 1.78 | 45.21 |
| EC556-16MT61 | 13.390 | 340.000 | 20400 | 1.51 | 38.35 |
| EC556-16 | 13.390 | 340.000 | 20400 | 1.51 | 38.35 |

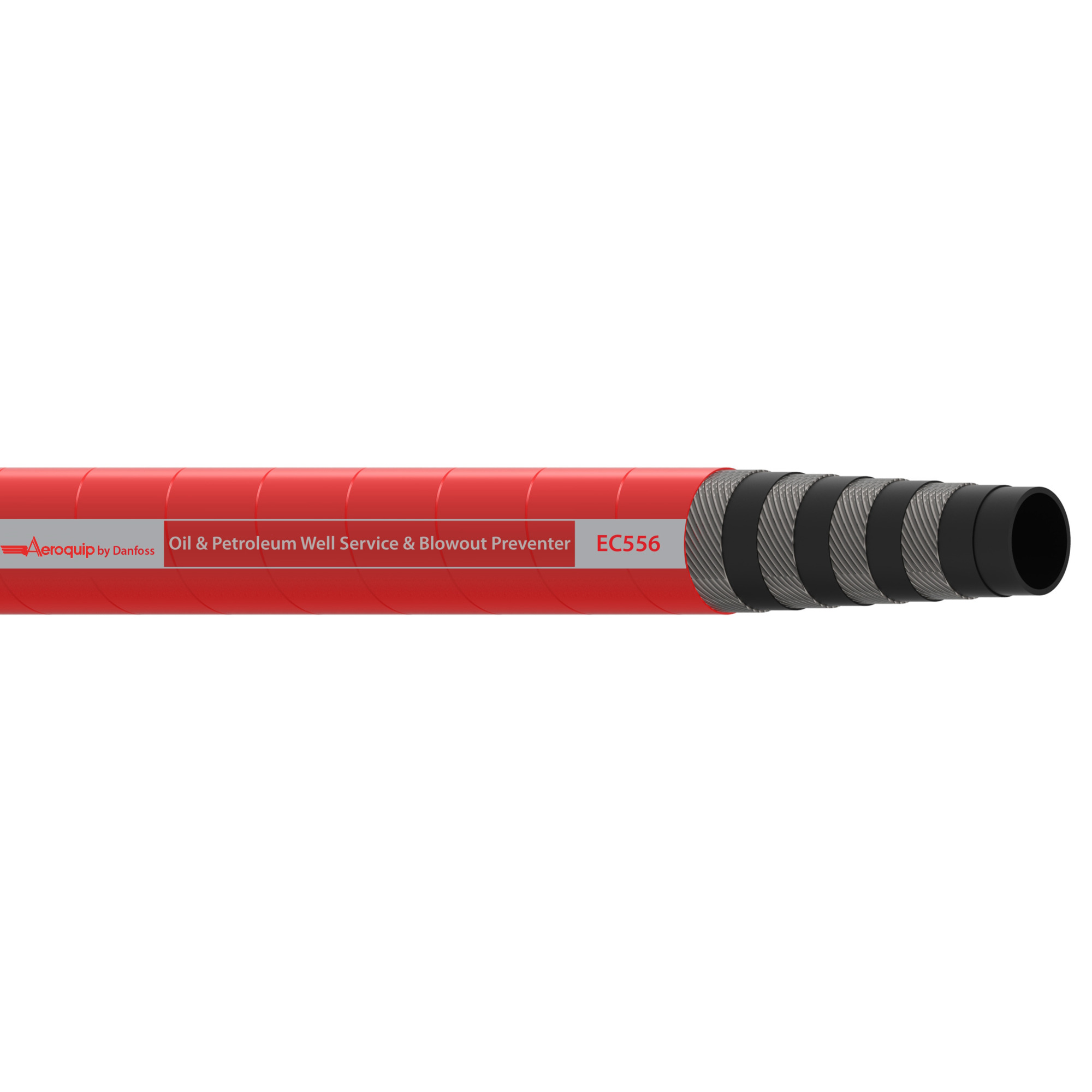

| EC556-12MT61 | 11.020 | 280.000 | 20400 | 1.26 | 32.00 |
| EC556-12 | 11.020 | 280.000 | 20400 | 1.26 | 32.00 |

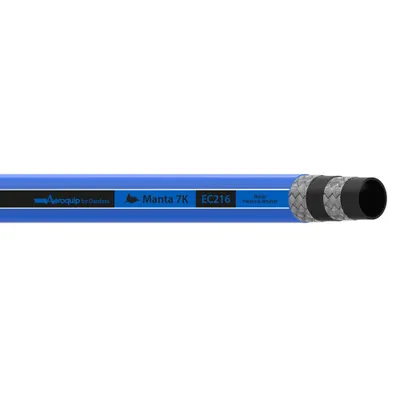

| EC216-08GYMT50 | 5.120 | 130.000 | 21750 | 0.83 | 21.00 |
| EC216-08GY | 5.120 | 130.000 | 21750 | 0.83 | 21.00 |

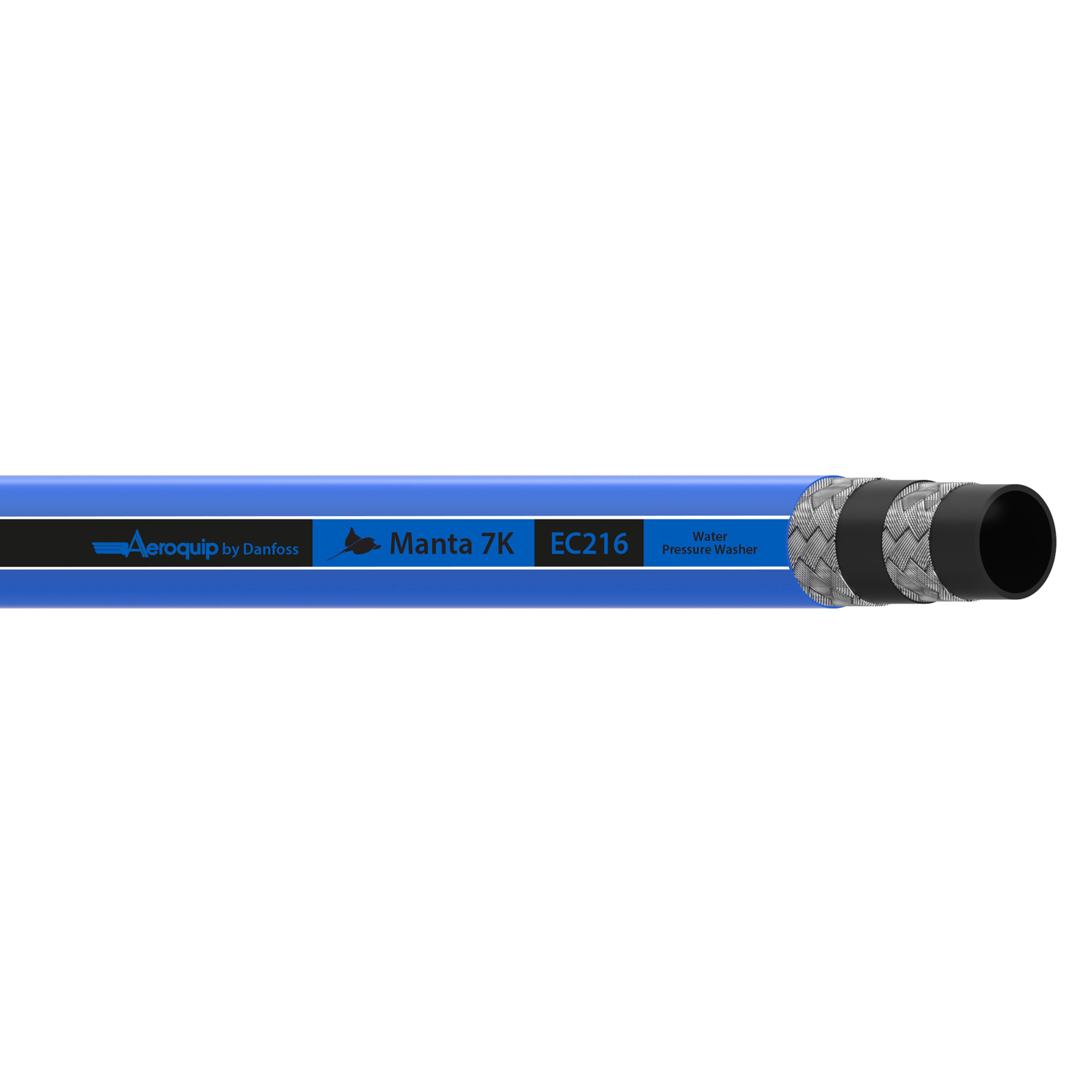

| EC216-08BUMT50 | 5.120 | 130.000 | 21750 | 0.83 | 21.00 |
| EC216-08BU-500R | 5.120 | 130.000 | 21750 | 0.83 | 21.00 |
Common to all listed parts
| Working temperature min (C) | -40 |
| Working temperature min (F) | -40.0 |
