Industrial hose and fittings Parts
Compare Industrial hose and fittings
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Bend radius min (inch) | Bend radius min (mm) | Inside diameter (inch) | Inside diameter (mm) | Outside diameter (mm) |
|---|---|---|---|---|---|
| EC116-08GY | 5.120 | 130.000 | 0.50 | 12.70 | 19.30 |
| EC116-08BUMT50 | 5.120 | 130.000 | 0.50 | 12.70 | 19.30 |
| EC116-08BU-500R | 5.120 | 130.000 | 0.50 | 12.70 | 19.30 |
| EC116-08BU-50 | 5.120 | 130.000 | 0.50 | 12.70 | 19.30 |
| EC116-08BU-100 | 5.120 | 130.000 | 0.50 | 12.70 | 19.30 |
| EC116-08BU | 5.120 | 130.000 | 0.50 | 12.70 | 19.30 |
| EC116-08BK | 5.120 | 130.000 | 0.50 | 12.70 | 19.30 |
| EC116-06GYMT50 | 3.540 | 90.000 | 0.38 | 9.50 | 15.80 |
| EC116-06GY | 3.540 | 90.000 | 0.38 | 9.50 | 15.80 |
| EC116-06BUMT50 | 3.540 | 90.000 | 0.38 | 9.50 | 15.75 |
| EC116-06BU-500R | 3.540 | 90.000 | 0.38 | 9.50 | 15.75 |
| EC116-06BU-50 | 3.540 | 90.000 | 0.38 | 9.50 | 15.75 |
| EC116-06BU-100 | 3.540 | 90.000 | 0.38 | 9.50 | 15.80 |
| EC116-06BU | 3.540 | 90.000 | 0.38 | 9.50 | 15.80 |
| EC116-06BK | 3.540 | 90.000 | 0.38 | 9.50 | 15.80 |
| EC116-05GYMT50 | 3.350 | 85.000 | 0.31 | 7.90 | 13.90 |
| EC116-05GY | 3.350 | 85.000 | 0.31 | 7.90 | 13.97 |
| EC116-05BUMT50 | 3.350 | 85.000 | 0.31 | 7.90 | 13.90 |
| EC116-05BU | 3.350 | 85.000 | 0.31 | 7.90 | 13.90 |
| EC116-05BK | 3.350 | 85.000 | 0.31 | 7.90 | 13.90 |
| EC116-04GYMT50 | 2.950 | 75.000 | 0.25 | 6.40 | 12.50 |
| EC116-04GY | 2.950 | 75.000 | 0.25 | 6.40 | 12.45 |

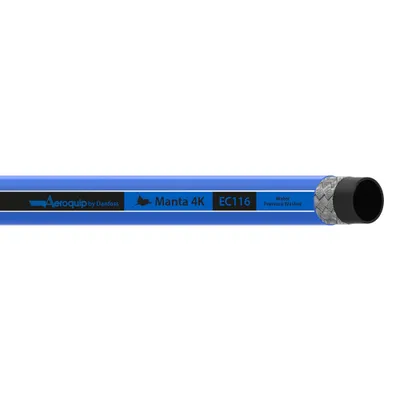

| EC116-04BUMT50 | 2.950 | 75.000 | 0.25 | 6.40 | 12.50 |
| EC116-04BU-500R | 2.950 | 75.000 | 0.25 | 6.40 | 12.50 |
Common to all listed parts
| Application | Hot water discharge |
| Burst pressure (bar) | 900 |
| Burst pressure (psi) | 13050 |
| Construction | 1 Wire Braid |
| Cover material | Nitrile (NBR) |
| Impulse cycle (cycles) | 200000 |
| Lay line style | Ink transfer |
| Reinforcement material | Brass plated steel wire |
