Industrial hose and fittings Parts
Compare Industrial hose and fittings
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Bend radius min (inch) | Bend radius min (mm) | Inside diameter (inch) | Outside diameter (inch) | Outside diameter (mm) |
|---|---|---|---|---|---|
| EC216-08BU-50 | 5.120 | 130.000 | 0.50 | 0.83 | 21.00 |
| EC216-08BU-100 | 5.120 | 130.000 | 0.50 | 0.83 | 21.00 |
| EC216-08BU | 5.120 | 130.000 | 0.50 | 0.83 | 21.00 |
| EC216-08BK | 5.120 | 130.000 | 0.50 | 0.83 | 21.00 |
| EC216-06GYMT50 | 3.540 | 90.000 | 0.38 | 0.69 | 17.50 |
| EC216-06GY | 3.540 | 90.000 | 0.38 | 0.69 | 17.50 |
| EC216-06BUMT50 | 3.540 | 90.000 | 0.38 | 0.69 | 17.50 |
| EC216-06BU-500R | 3.540 | 90.000 | 0.38 | 0.62 | 15.75 |
| EC216-06BU-50 | 3.540 | 90.000 | 0.38 | 0.62 | 15.75 |

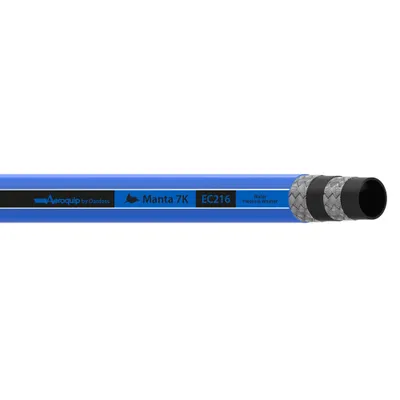

| EC216-06BU-100 | 3.540 | 90.000 | 0.38 | 0.69 | 17.50 |
| EC216-06BU | 3.540 | 90.000 | 0.38 | 0.69 | 17.50 |
| EC216-06BK | 3.540 | 90.000 | 0.38 | 0.69 | 17.50 |
| EC216-05GYMT50 | 3.350 | 85.000 | 0.31 | 0.60 | 15.30 |
| EC216-05GY | 3.350 | 85.000 | 0.31 | 0.60 | 15.30 |
| EC216-05BUMT50 | 3.350 | 85.000 | 0.31 | 0.60 | 15.24 |
| EC216-05BU | 3.350 | 85.000 | 0.31 | 0.60 | 15.30 |
| EC216-05BK | 3.350 | 85.000 | 0.31 | 0.60 | 15.30 |
| EC216-04BUMT50 | 2.950 | 75.000 | 0.25 | 0.54 | 13.72 |
| EC216-04BU-500R | 2.950 | 75.000 | 0.25 | 0.54 | 13.60 |
| EC216-04BU-50 | 2.950 | 75.000 | 0.25 | 0.54 | 13.60 |
| EC216-04BU-100 | 2.950 | 75.000 | 0.25 | 0.54 | 13.72 |
| EC216-04BU | 2.950 | 75.000 | 0.25 | 0.54 | 13.60 |
| EC216-04BK | 2.950 | 75.000 | 0.25 | 0.54 | 13.60 |

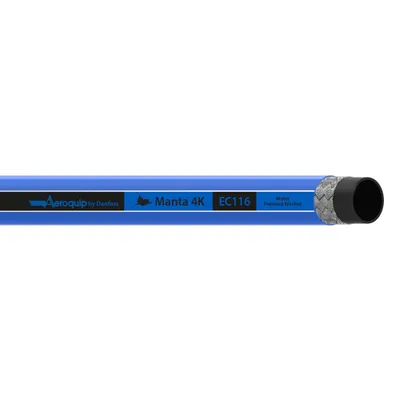

| EC116-08GYMT50 | 5.120 | 130.000 | 0.50 | 0.76 | 19.30 |
Common to all listed parts
| Cover material | Nitrile (NBR) |
| Lay line style | Ink transfer |
| Reinforcement material | Brass plated steel wire |
| Tube material | Nitrile (NBR) |
| Working temperature max (C) | 150 |
| Working temperature max (F) | 302.0 |
| Working temperature min (C) | -40 |
| Working temperature min (F) | -40.0 |
