Danfoss EC556-20MT60

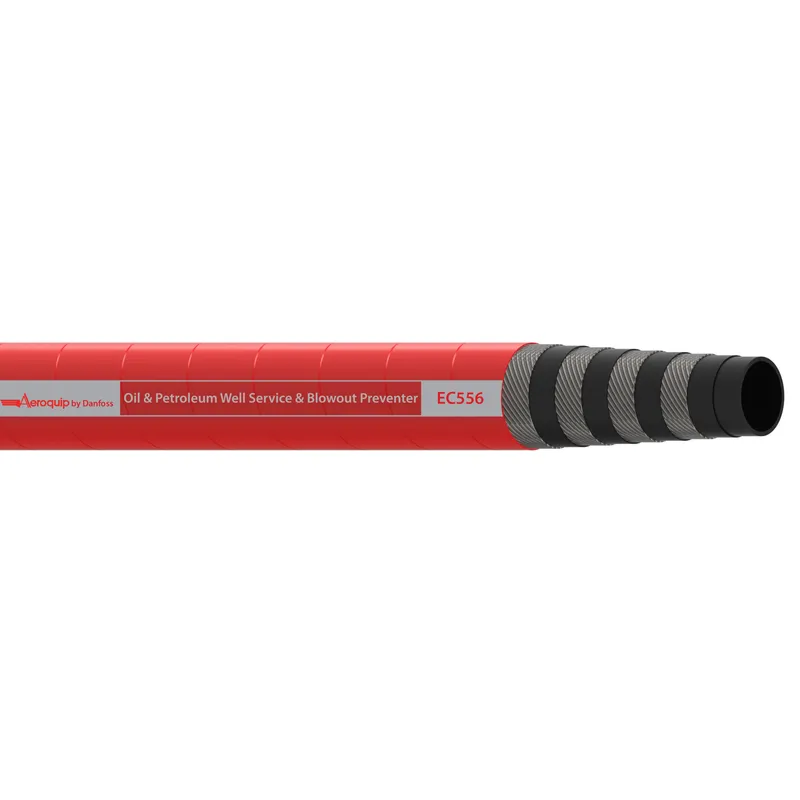

HOSE-BOS,EC556,-20,OIL/PETROL,RD,60M
- MPN
- EC556-20MT60
- Category
- Industrial hose and fittings
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Danfoss EC556-20MT60?
Danfoss HOSE-BOS,EC556,-20,OIL/PETROL,RD,60M, manufacturer part number EC556-20MT60. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Abrasion resistance | Standard |
| Application | Petroleum oilfield explore |
| Bend radius min (inch) | 18.110 |
| Bend radius min (mm) | 460.000 |
| Brand | Boston by Danfoss |
| Burst pressure (bar) | 1400 |
| Burst pressure (psi) | 20400 |
| Certifications | LR |
| Color | Red |
| Compliances | EN856 Type 4SH & 6SP |
| Construction | 4 Wire Spiral |
| Cover material | Chlorosulfonated polyethylene |
| Fixed Length | 60.000 |
| Inside diameter (inch) | 1.25 |
| Inside diameter (mm) | 31.80 |
| Lay line style | Ink transfer |
| Length (in) | 2362.00000 |
| Length (mm) | 60000.00000 |
| Outside diameter (inch) | 1.78 |
| Outside diameter (mm) | 45.21 |
| Package form | Reel |
| Product height in | 1.250 |
| Product height mm | 31.800 |
| Product width in | 1.250 |
| Product width mm | 31.800 mm |
| Reinforcement material | Brass plated steel wire |
| Series | EC556 Series |
| Size | -20 |
| Tube material | Nitrile (NBR) |
| Working pressure max (bar) | 350 |
| Working pressure max (psi) | 5100 |
| Working temperature max (C) | 100 |
| Working temperature max (F) | 212.0 |
| Working temperature min (C) | -40 |
| Working temperature min (F) | -40.0 |
EC556-20MT60: frequently asked questions
When can EC556-20MT60 be shipped?
EC556-20MT60 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up EC556-20MT60 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for EC556-20MT60 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for EC556-20MT60, subject to availability and destination.
