Industrial hose and fittings Parts
Compare Industrial hose and fittings
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Bend radius min (inch) | Bend radius min (mm) | Inside diameter (mm) | Outside diameter (inch) | Outside diameter (mm) |
|---|---|---|---|---|---|
| EHP502-32-M61 | 10.430 | 265.000 | 50.80 | 2.56 | 65.00 |
| EHP502-24-M61 | 7.090 | 180.000 | 38.00 | 2.00 | 51.00 |
| EHP500-80BK-M61 | 21.650 | 550.000 | 127.00 | 5.71 | 145.00 |
| EHP500-64BK-M61 | 15.750 | 400.000 | 101.60 | 4.61 | 117.00 |
| EHP500-48BK-M61 | 9.060 | 230.000 | 76.20 | 3.50 | 89.00 |
| EHP500-32BK-M61 | 6.690 | 170.000 | 50.80 | 2.48 | 63.00 |
| EHP500-24BK-M61 | 4.330 | 110.000 | 38.00 | 1.93 | 49.00 |
| EHP151-96BK-100 | 31.100 | 790.000 | 152.40 | 6.77 | 171.96 |
| EHP151-64BK-100 | 20.080 | 510.000 | 101.60 | 4.67 | 118.62 |

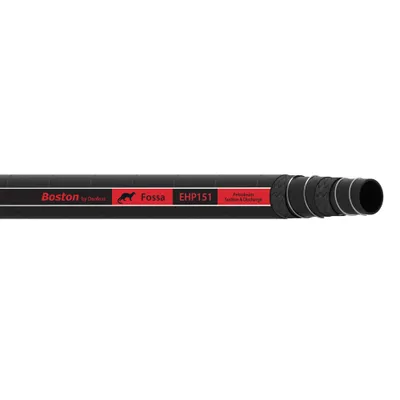

| EHP151-48BK-100 | 14.960 | 380.000 | 76.20 | 3.56 | 90.42 |
| EHP151-40BK-100 | 12.200 | 310.000 | 63.50 | 3.09 | 78.49 |
| EHP151-32BK-100 | 9.840 | 250.000 | 50.80 | 2.53 | 64.26 |
| EHP151-24BK-100 | 6.690 | 170.000 | 38.10 | 1.97 | 50.04 |
| EHP151-20BK-100 | 5.510 | 140.000 | 31.80 | 1.74 | 44.20 |
| EHP151-16BK-100 | — | — | 25.00 | 1.41 | 36.00 |
| EHP151-12BK-100 | 3.540 | 90.000 | 19.00 | 1.20 | 30.48 |
| EHP150-96BK-M61 | 31.100 | 790.000 | 152.40 | 6.77 | 172.00 |
| EHP150-96BK-100 | — | — | 152.40 | 6.69 | 170.00 |
| EHP150-96BK | 31.100 | 790.000 | 152.40 | 6.77 | 172.00 |
| EHP150-64BK-M61 | 20.800 | 510.000 | 101.60 | 4.67 | 118.62 |
| EHP150-64BK-100 | — | — | 101.60 | 4.60 | 117.00 |
| EHP150-64BK | 20.080 | 510.000 | 101.60 | 4.67 | 118.60 |
| EHP150-48BK-M61 | 14.960 | 380.000 | 76.20 | 3.56 | 90.40 |
| EHP150-48BK-100 | — | — | 76.20 | 3.50 | 89.00 |
Common to all listed parts
| Color | Black |
