Danfoss
EHP009-40-100Industrial hose and fittings Parts
Compare Industrial hose and fittings
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Inside diameter (inch) | Outside diameter (inch) | Outside diameter (mm) | Bend radius min (inch) | Bend radius min (mm) |
|---|---|---|---|---|---|
| EHP009-40-100 | 63.50 | 3.14 | 80.00 | — | — |
| EHP009-32-100 | 2.00 | 2.41 | 61.21 | 5.710 | 145.000 |

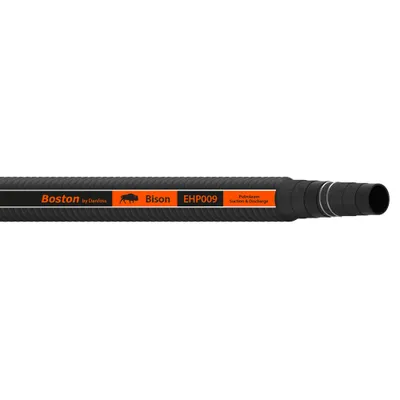

| EHP009-24-100 | 1.50 | 1.78 | 45.21 | 4.530 | 115.000 |

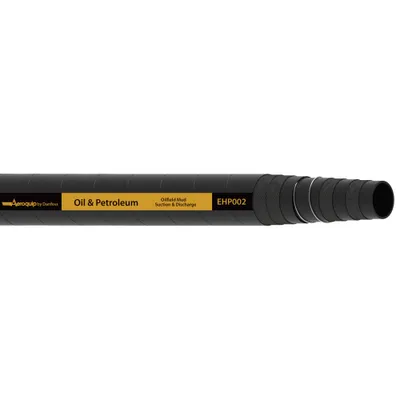

| EHP002-48 | 3.00 | 3.50 | 88.90 | 13.390 | 340.000 |

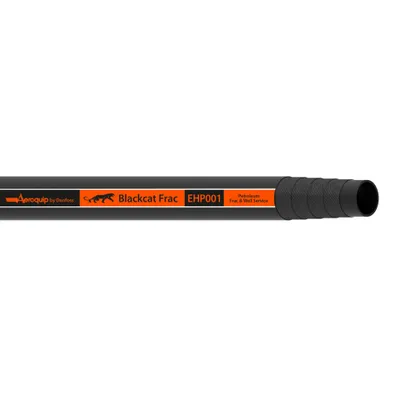

| EHP00164-100 | 4.00 | 4.67 | 118.62 | 40.000 | 1016.000 |
| EHP00164 | 4.00 | 4.67 | 118.62 | 40.000 | 1016.000 |
| EHP00148-100 | 3.00 | 3.69 | 93.73 | 30.000 | 762.000 |
| EHP00148 | 3.00 | 3.69 | 93.73 | 30.000 | 762.000 |
| EHN008-24 | 1.50 | 2.07 | 52.58 | 20.000 | 508.000 |

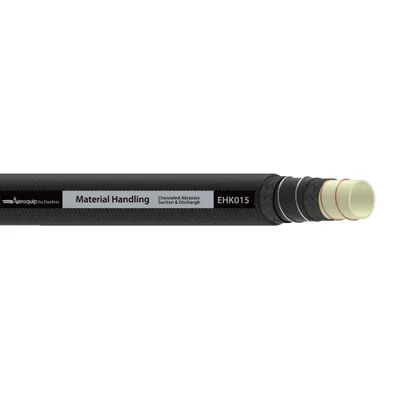

| EHK015-64 | 4.00 | 4.66 | 118.30 | 10.240 | 260.000 |
| EHK007-96MT4 | 6.00 | 7.09 | 180.09 | 25.590 | 650.000 |
| EHK007-96-100 | 6.00 | 7.09 | 180.09 | 25.590 | 650.000 |
| EHK007-96 | 6.00 | 7.09 | 180.09 | 25.590 | 650.000 |
| EHK007-80MT6 | 5.00 | 6.10 | 154.94 | 16.730 | 425.000 |
| EHK007-80MT4 | 5.00 | 6.10 | 154.94 | 16.730 | 425.000 |
| EHK007-80MT3.5 | 5.00 | 6.10 | 154.94 | 16.730 | 425.000 |
| EHK007-80MT3 | 5.00 | 6.10 | 154.94 | 16.730 | 425.000 |
| EHK007-80-M61 | 5.00 | 6.10 | 154.94 | 16.730 | 425.000 |
| EHK007-80-BK | 5.00 | 6.10 | 154.94 | 16.730 | 424.940 |
| EHK007-80-100 | 5.00 | 6.10 | 154.94 | 16.730 | 425.000 |
| EHK007-80 | 5.00 | 6.10 | 154.94 | 16.730 | 425.000 |
| EHK007-64BK | 4.00 | 5.11 | 129.79 | 13.770 | 349.760 |
| EHK007-64-M61 | 4.00 | 5.12 | 130.05 | 15.750 | 400.000 |
| EHK007-64-100 | 4.00 | 5.12 | 130.05 | 15.750 | 400.000 |
Common to all listed parts
| Color | Black |
