Industrial hose and fittings Parts
Compare Industrial hose and fittings
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Bend radius min (inch) | Bend radius min (mm) | Inside diameter (mm) | Outside diameter (inch) | Outside diameter (mm) |
|---|---|---|---|---|---|
| EHS001-32RD-M61 | 13.780 | 350.000 | 50.80 | 2.64 | 67.00 |
| EHS001-24RD-M61 | 9.840 | 250.000 | 38.10 | 2.05 | 52.00 |
| EHS001-20RD-M61 | 7.870 | 200.000 | 31.80 | 1.81 | 46.00 |
| EHS001-16RD-M61 | 5.510 | 140.000 | 25.40 | 1.52 | 38.50 |
| EHS001-12RD-M61 | 3.940 | 100.000 | 19.00 | 1.26 | 32.00 |
| EHS001-12-RD | 3.940 | 100.000 | 19.00 | 1.26 | 32.00 |
| EHS001-08RD-M61 | 2.760 | 70.000 | 12.70 | 0.94 | 24.00 |
| EHS001-08-RD | 2.760 | 70.000 | 12.70 | 0.94 | 24.00 |
| EHP524-80-M61 | — | — | 127.00 | 5.71 | 145.00 |

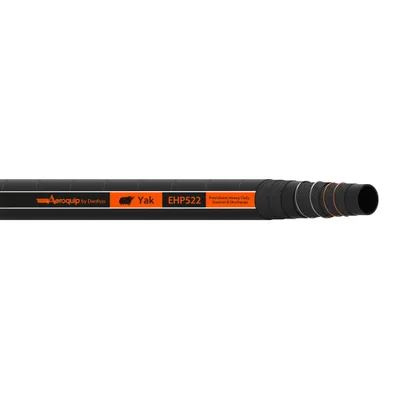

| EHP522-32-100 | 7.870 | 200.000 | 50.80 | 2.63 | 66.80 |
| EHP519-96-100 | — | — | 152.40 | 6.93 | 176.00 |
| EHP519-64-100 | 13.390 | 340.000 | 101.60 | 4.60 | 116.84 |
| EHP519-48-100 | 9.450 | 240.000 | 76.20 | 3.60 | 91.44 |
| EHP519-40-100 | 7.680 | 195.000 | 63.50 | 3.08 | 78.23 |
| EHP519-32-100 | 5.710 | 145.000 | 50.80 | 2.47 | 62.74 |
| EHP519-24-100 | 4.530 | 115.000 | 38.00 | 1.94 | 49.20 |
| EHP519-20-100 | 3.540 | 90.000 | 31.80 | 1.70 | 43.18 |
| EHP519-16-100 | 2.950 | 75.000 | 25.40 | 1.39 | 35.31 |

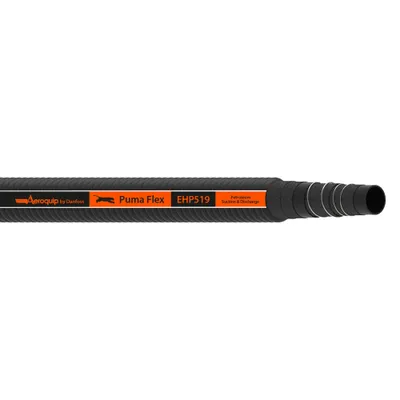

| EHP519-12-100 | 2.170 | 55.000 | 19.00 | 1.12 | 28.45 |

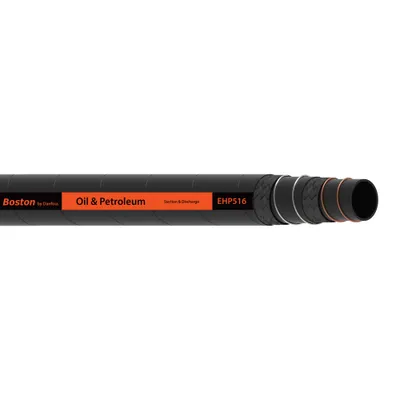

| EHP516-32-M61 | 7.480 | 190.000 | 50.80 | 2.64 | 67.00 |

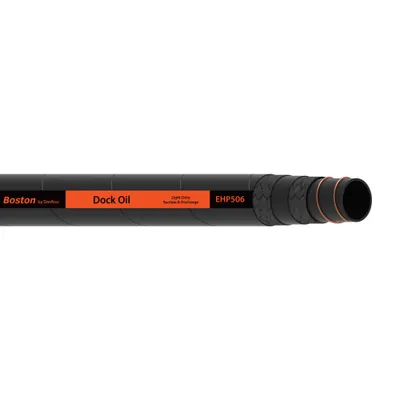

| EHP506-64-M40 | 19.680 | 500.000 | 101.60 | 5.04 | 128.00 |
| EHP504-48BK-M61 | 30.000 | 762.000 | 76.20 | 3.54 | 90.00 |
| EHP502-48-M61 | 15.750 | 400.000 | 76.20 | 3.62 | 92.00 |
| EHP502-40-M61 | 13.000 | 330.000 | 63.50 | 3.11 | 79.00 |
