Industrial hose and fittings Parts
Compare Industrial hose and fittings
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Bend radius min (inch) | Bend radius min (mm) | Inside diameter (inch) | Outside diameter (inch) | Outside diameter (mm) |
|---|---|---|---|---|---|

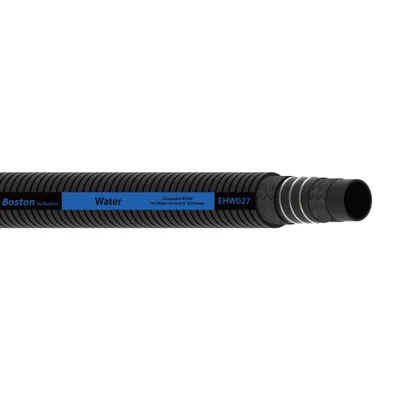

| EHW027-14 | 1.770 | 45.000 | 0.88 | 1.26 | 32.00 |

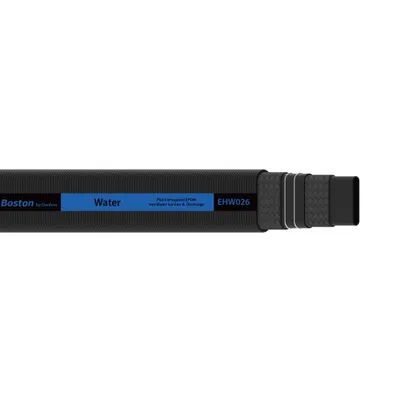

| EHW026-32-M61 | 5.510 | 140.000 | 2.00 | 2.40 | 61.00 |
| EHW021-05 | 3.150 | 80.000 | 0.31 | 0.55 | 13.97 |
| EHW002-M20 | 11.810 | 299.970 | 0.79 | 1.02 | 26.00 |

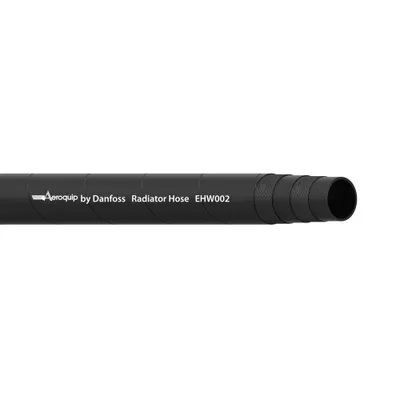

| EHW002-M18 | 11.810 | 299.970 | 0.71 | 0.94 | 24.00 |
| EHW002-10 | 11.810 | 299.970 | 0.62 | 0.87 | 22.00 |
| EHW001-32-M61 | — | — | 2.00 | 2.24 | 57.00 |
| EHT200-64-M30 | 11.810 | 300.000 | 4.00 | 4.56 | 115.75 |
| EHT200-48-M30 | 7.680 | 195.000 | 3.00 | 3.54 | 90.00 |
| EHT200-40-M30 | 5.910 | 150.000 | 2.50 | 2.99 | 75.85 |
| EHT200-32-M30 | 4.920 | 125.000 | 2.00 | 2.38 | 60.50 |
| EHT200-24-M30 | 3.540 | 90.000 | 1.50 | 1.83 | 46.45 |
| EHT200-20-M30 | 2.950 | 75.000 | 1.25 | 1.57 | 39.84 |
| EHT200-16-M50 | 2.360 | 60.000 | 1.00 | 1.33 | 33.70 |
| EHT200-12-M50 | 1.970 | 50.000 | 0.75 | 0.99 | 25.20 |
| EHS540-20-M200 | 5.120 | 130.000 | 1.25 | 1.89 | 48.01 |
| EHS540-12-M240 | 3.540 | 90.000 | 0.75 | 1.24 | 31.60 |
| EHS540-12 | 3.540 | 90.000 | 0.75 | 1.24 | 31.60 |
| EHS540-08-M240 | 2.560 | 65.000 | 0.50 | 0.98 | 25.00 |
| EHS005-24-RD | 9.840 | 250.000 | 1.50 | 2.05 | 52.00 |
| EHS005-20-RD | 7.870 | 200.000 | 1.25 | 1.81 | 46.00 |
| EHS005-16-RD | 5.510 | 140.000 | 1.00 | 1.52 | 38.50 |
| EHS005-12-RD | 3.940 | 100.000 | 0.75 | 1.26 | 32.00 |
| EHS005-08-RD | 2.760 | 70.000 | 0.50 | 0.94 | 24.00 |
