Industrial hose and fittings Parts
Compare Industrial hose and fittings
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Inside diameter (mm) | Outside diameter (inch) | Outside diameter (mm) | Product height mm | Product width mm |
|---|---|---|---|---|---|
| EHW035-96-M61 | 152.40 | 6.85 | 174.00 | 152.400 | 152.400 mm |
| EHW035-64-M61 | 101.60 | 4.73 | 120.20 | 101.600 | 101.600 mm |
| EHW035-48-M61 | 76.20 | 3.57 | 90.60 | 76.200 | 76.200 mm |
| EHW035-32-M61 | 50.80 | 2.52 | 64.00 | 50.800 | 50.800 mm |

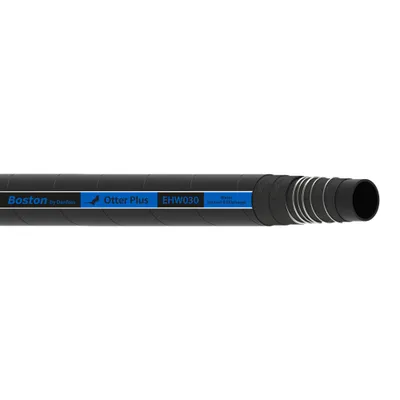

| EHW030-64-100 | 101.60 | 4.72 | 119.89 | 101.600 | 101.600 mm |
| EHW030-48-100 | 76.20 | 3.70 | 93.98 | 76.200 | 76.200 mm |
| EHW029-96-100 | 152.40 | 6.38 | 162.05 | 152.400 | 152.400 mm |
| EHW029-80-100 | 127.00 | 5.35 | 135.89 | 127.000 | 127.000 mm |
| EHW029-64-100 | 101.60 | 4.29 | 108.97 | 101.600 | 101.600 mm |
| EHW029-48-100 | 76.20 | 3.27 | 83.06 | 76.200 | 76.200 mm |
| EHW029-40-100 | 63.00 | 2.75 | 70.00 | — | — |
| EHW029-32-100 | 50.80 | 2.24 | 56.90 | 50.800 | 50.800 mm |
| EHW029-24-100 | 38.10 | 1.73 | 43.94 | 38.100 | 38.100 mm |
| EHW029-128-100 | 203.20 | 8.52 | 216.41 | 203.200 | 203.200 mm |
| EHW028-32YW | 50.80 | 2.44 | 62.00 | 50.800 | 50.800 mm |
| EHW028-32-100 | 50.80 | 2.44 | 61.98 | 50.800 | 50.800 mm |
| EHW028-24YW | 38.00 | 1.89 | 48.00 | 38.000 | 38.000 mm |
| EHW028-24-100 | 38.10 | 1.89 | 48.01 | 38.100 | 38.100 mm |
| EHW028-20YW | 31.75 | 1.63 | 41.40 | 31.750 | 31.750 mm |
| EHW028-20-100 | 31.80 | 1.63 | 41.40 | 31.800 | 31.800 mm |
| EHW028-16YW | 25.40 | 1.35 | 34.30 | 25.400 | 25.400 mm |
| EHW028-16-100 | 25.40 | 1.35 | 34.29 | 25.400 | 25.400 mm |
| EHW028-12YW | 19.00 | 1.10 | 28.00 | 19.000 | 19.000 mm |
| EHW028-12-100 | 19.00 | 1.10 | 27.94 | 19.000 | 19.000 mm |
