Braided hose and fittings Parts
Compare Braided hose and fittings
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | A dimension IN | Hose cut off factor IN | Hose cut off factor MM | Product length in | Product length mm |
|---|---|---|---|---|---|
| 24211Y-06-04TZ | 2.030 | 0.930 | 23.500 | 2.421 | 61.493 |
| 24211Y-04-06Z | 2.066 | 0.885 | 22.500 | 2.400 | 60.960 |
| 24211Y-04-04Z | 1.990 | 0.890 | 22.500 | 2.323 | 59.004 |
| 24211Y-04-04CNZ | — | — | — | 2.320 | 58.928 |
| 24211DY-10-10SMJRZ | — | 1.300 | 33.020 | 3.140 | 79.756 |
| 24211DY-08-08Z | 2.657 | 1.417 | 36.000 | 3.090 | 78.486 |
| 24211DY-08-06SASMZ | — | 1.290 | 32.766 | 2.913 | 73.990 |
| 24211DY-06-06SMZ | 2.362 | 1.181 | 30.000 | 2.755 | 69.977 |
| 24211DY-04-04Z | 2.204 | 1.100 | 28.000 | 2.539 | 64.491 |
| 24211D-16-16ZF | 3.780 | 1.930 | 49.000 | 3.228 | 82.001 |
| 24211D-16-16Z | 3.780 | 3.780 | 96.000 | 4.370 | 110.998 |
| 24211D-16-14Z | 3.464 | 1.889 | 48.000 | 4.047 | 102.794 |
| 24211D-16-12ZF | 3.410 | 1.890 | 48.000 | 2.894 | 73.500 |
| 24211D-12-16ZF | 3.680 | 1.830 | 46.500 | 3.268 | 83.000 |
| 24211D-12-12ZF | 3.310 | 1.790 | 45.500 | 2.894 | 73.500 |
| 24211D-12-12Z | 3.310 | 1.790 | 45.500 | 3.877 | 98.476 |
| 24211D-12-10ZF | 3.130 | 1.790 | 45.500 | 2.579 | 65.499 |
| 24211D-12-10Z | 3.130 | 1.790 | 45.500 | 3.720 | 94.488 |
| 24211D-12-08ZF | 2.980 | 1.740 | 44.300 | 2.441 | 61.999 |
| 24211D-10-12ZF | 3.208 | 1.692 | 43.000 | 2.835 | 72.001 |
| 24211D-10-10ZF | 2.990 | 1.650 | 42.000 | 2.638 | 67.000 |
| 24211D-10-08ZF | 2.850 | 1.610 | 41.000 | 2.402 | 61.001 |

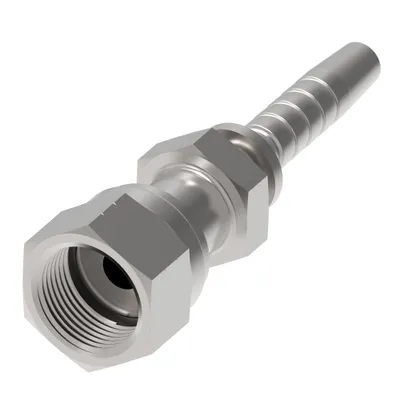

| 24211D-08-10ZF | 2.800 | 1.460 | 37.000 | 3.230 | 82.042 |
| 24211D-08-08ZF | 2.657 | 1.417 | 36.000 | 2.342 | 59.499 |
Common to all listed parts
| Angle shape | Straight |
| Construction Style | Crimp |
| End Type 1 | Female ORFS swivel |
| Product material | Carbon steel |
| Thread sealant | No |
