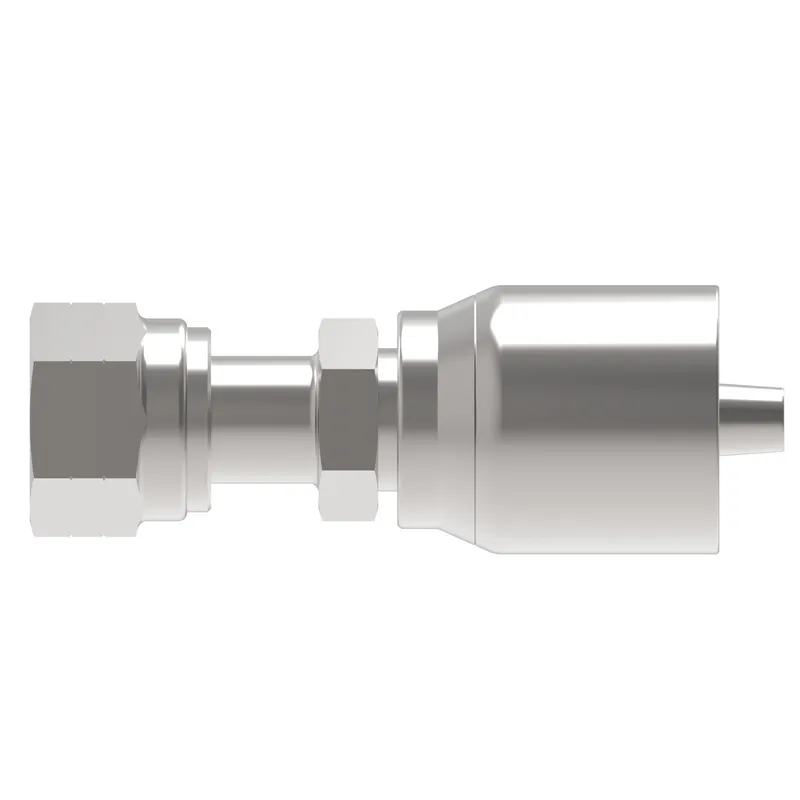

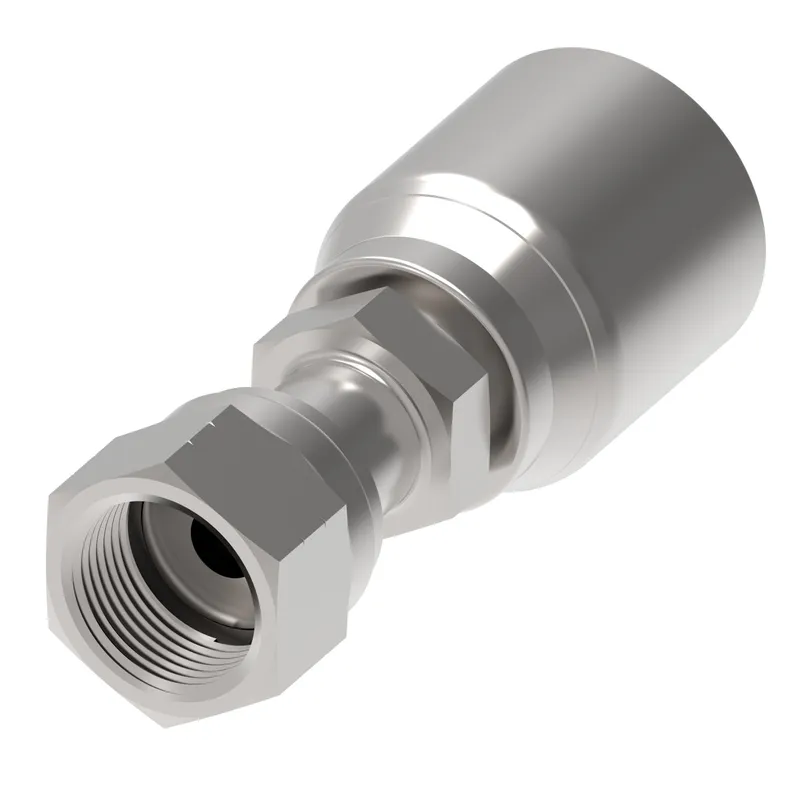

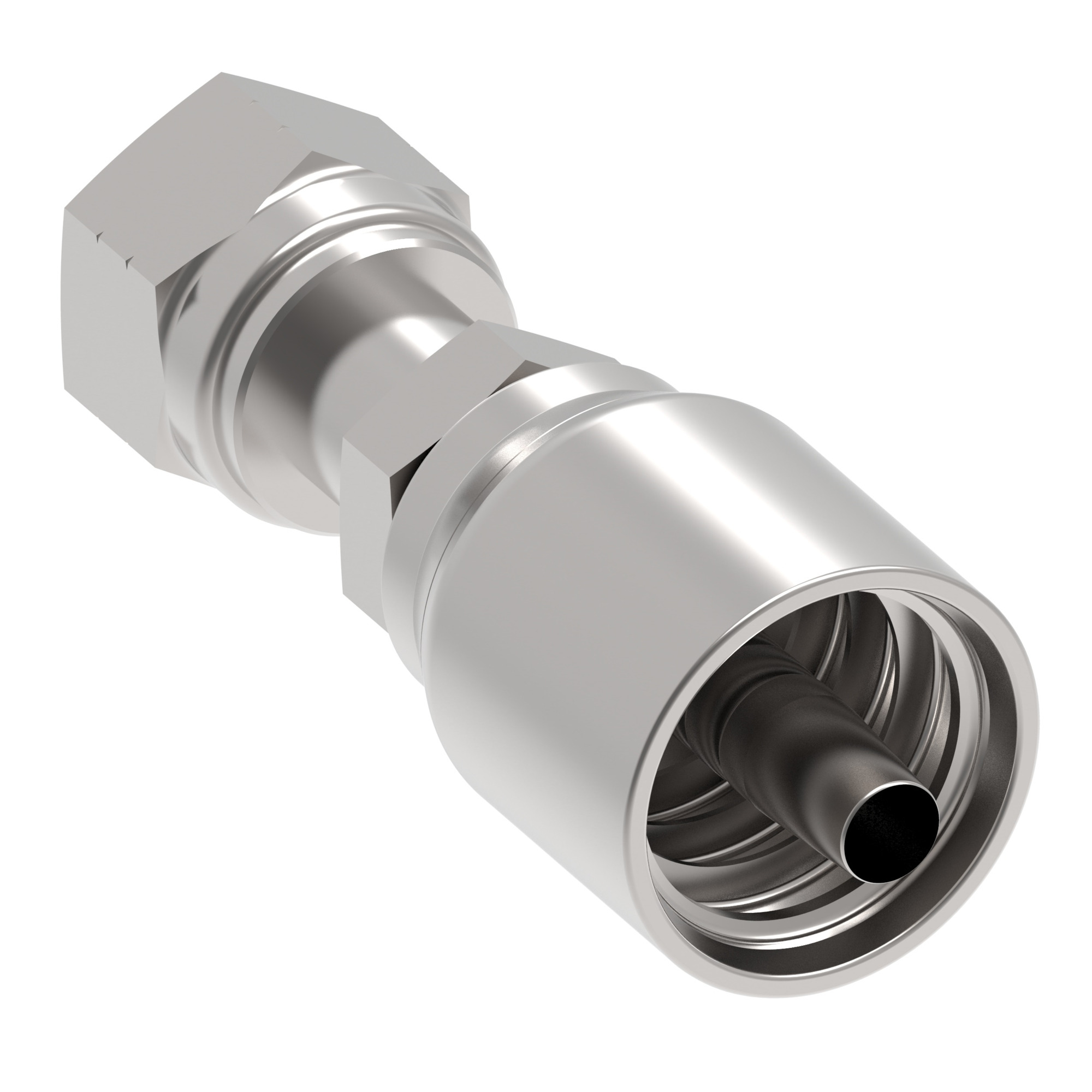

Danfoss 24211DY-04-04Z

HOSE NIPPLE ASSY,2P/04,ORS-F/04,CS,STR

MPN
24211DY-04-04Z
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 24211DY-04-04Z?

Danfoss HOSE NIPPLE ASSY,2P/04,ORS-F/04,CS,STR, manufacturer part number 24211DY-04-04Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN2.204
A dimension MM56.000
Angle shapeStraight
BrandWinner by Danfoss
Compatible hose ID IN0.250
Compatible hose ID MM6.350
Compatible hoses EC110, EC210, FC686, FC687, GH663, GH781, GH793
Construction StyleCrimp
End size 1-4
End Type 1Female ORFS swivel
Finish platingZinc plating
Hex size 1 IN0.669
Hex size 1 MM17.000
Hex size 2 IN0.748
Hex size 2 MM19.000
Hose cut off factor IN1.100
Hose cut off factor MM28.000
Hose size-4
Inside diameter IN0.157
Inside diameter MM4.000
Product height in0.897
Product height mm22.784
Product length in2.539
Product length mm64.491
Product materialCarbon steel
Product width in0.897
Product width mm22.784
Thread sealantNo
Thread size 19/16-18 UNF
Working pressure max BAR621
Working pressure max PSI9100
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40
