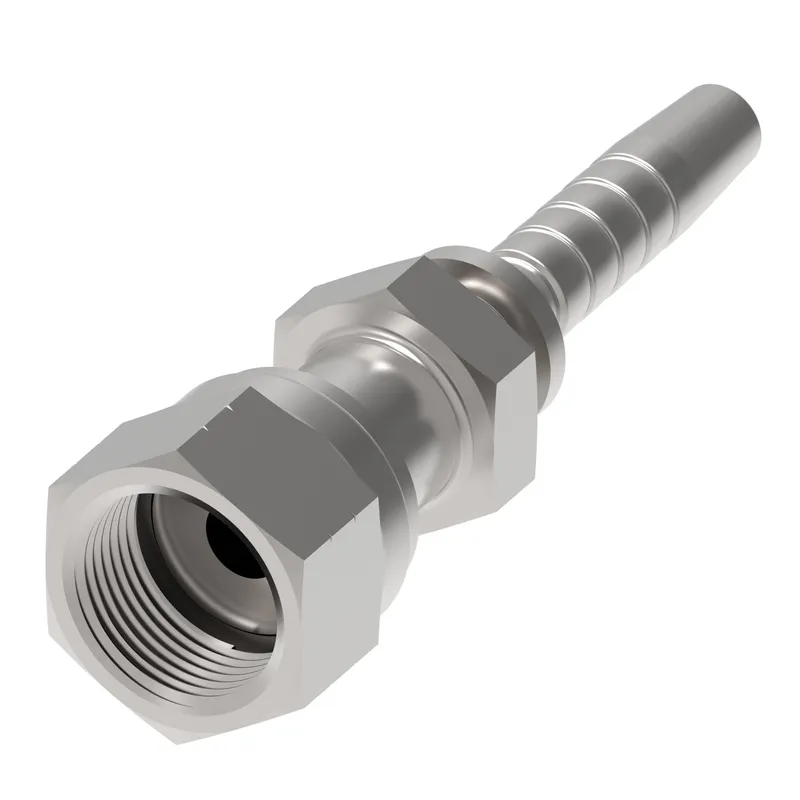

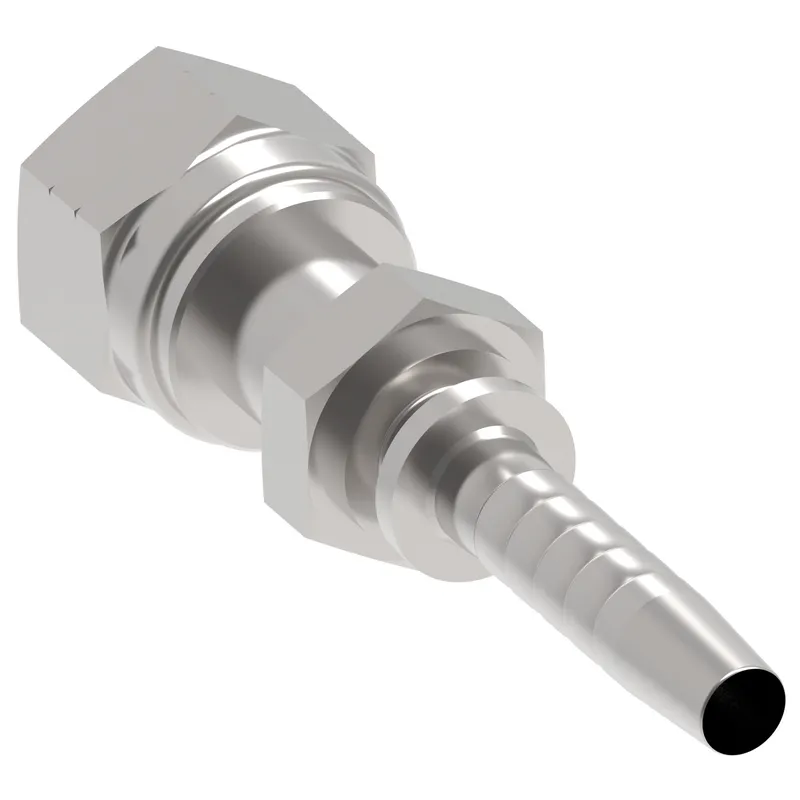

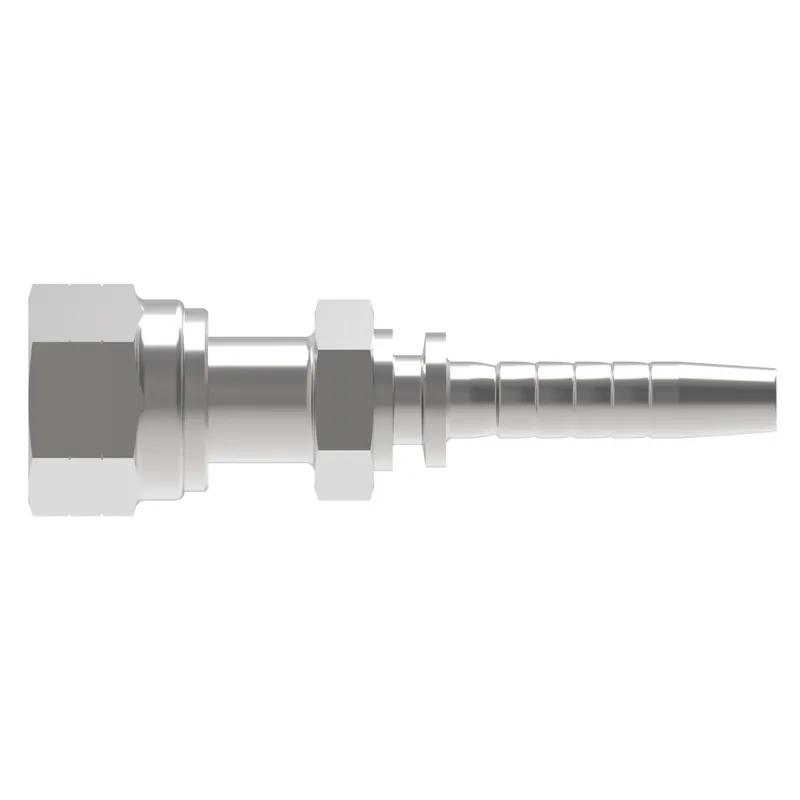

Danfoss 24211D-16-12ZF

HOSE NIPPLE ASSY,2P/12,ORS-F/16,CS,STR

MPN
24211D-16-12ZF
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 24211D-16-12ZF?

Danfoss HOSE NIPPLE ASSY,2P/12,ORS-F/16,CS,STR, manufacturer part number 24211D-16-12ZF. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

EAN/UPC678146191960
A dimension IN3.410
A dimension MM86.500
Angle shapeStraight
Compatible hose ID IN0.750
Compatible hose ID MM19.050
Compatible hoses EC110, EC115, EC210, EC215
Construction StyleCrimp
End size 1-16
End Type 1Female ORFS swivel
Finish platingZinc plating
Hex size 1 IN1.614
Hex size 1 MM41.000
Hex size 2 IN1.614
Hex size 2 MM41.000
Hose cut off factor IN1.890
Hose cut off factor MM48.000
Hose size-12
Inside diameter IN0.590
Inside diameter MM14.900
Product height in1.614
Product height mm41.001
Product length in2.894
Product length mm73.500
Product materialCarbon steel
Product width in1.614
Product width mm41.001
Thread sealantNo
Thread size 11 7/16-12 UN
Working pressure max BAR414
Working pressure max PSI6000
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40

24211D-16-12ZF: frequently asked questions

When can 24211D-16-12ZF be shipped?

24211D-16-12ZF is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 24211D-16-12ZF in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 24211D-16-12ZF and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 24211D-16-12ZF, subject to availability and destination.

More Danfoss (Drives) parts

Danfoss 24211D-12-10ZF – HOSE NIPPLE ASSY,2P/10,ORS-F/12,CS,STR
Danfoss
24211D-12-10ZF

HOSE NIPPLE ASSY,2P/10,ORS-F/12,CS,STR

Danfoss 24211D-12-12Z – HOSE NIPPLE, 2P/12, ORS-F/12, CS, STR
Danfoss
24211D-12-12Z

HOSE NIPPLE, 2P/12, ORS-F/12, CS, STR

Danfoss 24211D-12-12ZF – HOSE NIPPLE ASSY,2P/12,ORS-F/12,CS,STR
Danfoss
24211D-12-12ZF

HOSE NIPPLE ASSY,2P/12,ORS-F/12,CS,STR

Danfoss 24211D-12-16ZF – HOSE NIPPLE ASSY,2P/16,ORS-F/12,CS,STR
Danfoss
24211D-12-16ZF

HOSE NIPPLE ASSY,2P/16,ORS-F/12,CS,STR

Danfoss 24211D-16-14Z – HOSE NIPPLE, 2P/14, ORS-F/16, CS, STR
Danfoss
24211D-16-14Z

HOSE NIPPLE, 2P/14, ORS-F/16, CS, STR

Danfoss 24211D-16-16Z – HOSE NIPPLE, 2P/16, ORS-F/16, CS, STR
Danfoss
24211D-16-16Z

HOSE NIPPLE, 2P/16, ORS-F/16, CS, STR

Danfoss 24211D-16-16ZF – HOSE NIPPLE ASSY,2P/16,ORS-F/16,CS,STR
Danfoss
24211D-16-16ZF

HOSE NIPPLE ASSY,2P/16,ORS-F/16,CS,STR

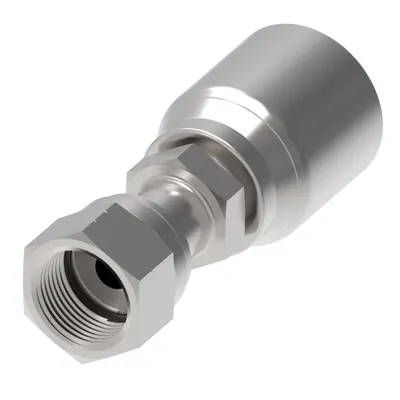

Danfoss 24211DY-04-04Z – HOSE NIPPLE ASSY,2P/04,ORS-F/04,CS,STR
