Braided hose and fittings Parts

Danfoss

26711D-06-06ZF

HOSE NIPPLE ASSY,2P/06,JIC-F/06,CS,STR

Danfoss

26711D-06-06Z

HOSE NIPPLE ASSY,2P/06,JIC-F/06,CS,STR

Danfoss

26711D-06-06SMZ

HOSE NIPPLE ASSY,2P/06,JIC-F/06,CS,STR

Danfoss

26711D-06-05ZF

HOSE NIPPLE ASSY,2P/05,JIC-F/06,CS,STR

Danfoss

26711D-06-05Z

HOSE NIPPLE ASSY,2P/05,JIC-F/06,CS,STR

Danfoss

26711D-06-04ZF

HOSE NIPPLE ASSY,2P/04,JIC-F/06,CS,STR

Danfoss

26711D-06-04Z

HOSE NIPPLE ASSY,2P/04,JIC-F/06,CS,STR

Danfoss

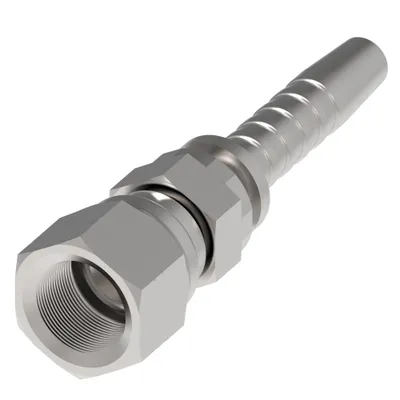

26711D-06-04SMZ

HOSE NIPPLE ASSY,2P/04,JIC-F/06,CS,STR

Danfoss

26711D-05-05ZF

HOSE NIPPLE ASSY,2P/05,JIC-F/05,CS,STR

Danfoss

26711D-05-05Z

HOSE NIPPLE ASSY,2P/05,JIC-F/05,CS,STR

Danfoss

26711D-04-06Z

HOSE NIPPLE ASSY,2P/06,JIC-F/04,CS,STR

Danfoss

26711D-04-04ZF

HOSE NIPPLE ASSY,2P/04,JIC-F/04,CS,STR

Danfoss

26711D-04-04Z

HOSE NIPPLE ASSY,2P/04,JIC-F/04,CS,STR

Danfoss

26711D-04-04LTZ

HOSE NIPPLE ASSY,2P/04,JIC-F/04,CS,STR

Danfoss

26711-32-32WZ

HOSE NIPPLE ASSY,2P/32,JIC-F/32,CS,STR

Danfoss

26711-32-32SRW

HOSE NIPPLE ASSY,2P/32,JIC-F/32,AN,STR

Danfoss

26711-32-29TZ

HOSE NIPPLE ASSY,2P/29,JIC-F/32,CS,STR

Danfoss

26711-32-28TZ

HOSE NIPPLE ASSY,2P/28,JIC-F/32,CS,STR

Danfoss

26711-32-24TZ

HOSE NIPPLE ASSY,2P/24,JIC-F/32,CS,STR

Danfoss

26711-24-24SRWLT

HOSE NIPPLE ASSY,2P/24,JIC-F/24,AN,STR

Danfoss

26711-24-24SRW

HOSE NIPPLE ASSY,2P/24,JIC-F/24,AN,STR

Danfoss

26711-24-24SAWZ

HOSE NIPPLE ASSY,2P/24,JIC-F/24,CS,STR

Danfoss

26711-24-22WZ

HOSE NIPPLE ASSY,2P/22,JIC-F/24,CS,STR

Danfoss

26711-20-18TZ

HOSE NIPPLE ASSY,2P/18,JIC-F/20,CS,STR

Compare Braided hose and fittings

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	A dimension IN	A dimension MM	Hose cut off factor IN	Product length in	Product length mm
26711D-06-06ZF	2.397	61.000	1.218	2.007	51.000
26711D-06-06Z	2.007	51.000	0.826	2.401	60.985
26711D-06-06SMZ	2.007	51.000	0.826	2.401	60.985
26711D-06-05ZF	1.929	49.000	0.826	2.240	56.896
26711D-06-05Z	1.929	49.000	0.826	2.320	58.928
26711D-06-04ZF	2.319	59.000	1.218	1.929	49.000
26711D-06-04Z	1.929	49.000	0.826	2.322	58.978
26711D-06-04SMZ	1.929	49.000	0.826	2.322	58.978
26711D-05-05ZF	1.968	50.000	0.866	2.080	52.832
26711D-05-05Z	1.968	50.000	0.866	2.340	59.436
26711D-04-06Z	1.980	50.300	0.799	1.980	50.292
26711D-04-04ZF	2.240	57.000	1.140	2.047	51.993
26711D-04-04Z	1.692	43.000	0.590	2.244	56.997
26711D-04-04LTZ	1.692	43.000	0.590	2.240	56.896
26711-32-32WZ	4.050	103.000	1.220	4.980	126.492
26711-32-32SRW	4.050	103.000	1.220	4.822	122.479
26711-32-29TZ	3.740	95.000	1.062	4.665	118.491
26711-32-28TZ	3.740	95.000	1.062	4.665	118.491
26711-32-24TZ	3.740	95.000	1.062	4.665	118.491
26711-24-24SRWLT	3.700	94.000	1.023	3.700	93.980
26711-24-24SRW	3.700	94.000	1.023	4.452	113.081
26711-24-24SAWZ	3.700	94.000	1.023	4.452	113.081
26711-24-22WZ	3.169	80.500	1.043	3.901	99.085
26711-20-18TZ	2.755	70.000	0.905	3.385	85.979

Common to all listed parts

Angle shape	Straight
Construction Style	Crimp
End Type 1	Female 37 degree swivel
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
