Home / Hoses and fittings / Hydraulic hose and fittings / Braided hose and fittings

Braided hose and fittings Parts

Danfoss

FC310-03

HOSE-AER, FC310, -3, HI-PAC

Danfoss

FC279-08

HOSE-AER, FC279, -8, R1/1SC

Danfoss

FC279-06

HOSE-AER, FC279, -6, R1/1SC

Danfoss

FC279-04

HOSE-AER, FC279, -4, R1/1SC

Danfoss

FC2542-12S

SOCKET-REUS, FC/12, CS

Danfoss

FC2542-08S

SOCKET-REUS, FC/08, CS

Danfoss

FC2542-06S

SOCKET-REUS, FC/06, CS

Danfoss

FC2542-04S

SOCKET-REUS, FC/04, CS

Danfoss

FC194-06

HOSE-AER, FC194, -6, HI-PAC,BU

Danfoss

FC1346-40S

SOCKET-PERM, FC/40, CS

Danfoss

EC981-8-06000

HOSE-AER, EC981, -8, 600IN, CL, R16

Danfoss

EC981-8

HOSE-AER, EC981, -8, R16

Danfoss

EC881B-8MT50

HOSE-AER, EC881B, -8, 50M, RL, R2/2SC

Danfoss

EC881B-8

HOSE-AER, EC881B, -8, R2/2SC

Danfoss

EC881B-6MT50

HOSE-AER, EC881B, -6, 50M, RL, R2/2SC

Danfoss

EC881B-5MT50

HOSE-AER, EC881B, -5, 50M, RL, R2/2SC

Danfoss

EC881B-5

HOSE-AER, EC881B, -5, R2/2SC

Danfoss

EC881B-4MT50

HOSE-AER, EC881B, -4, 50M, RL, R2/2SC

Danfoss

EC881B-4

HOSE-AER, EC881B, -4, R2/2SC

Danfoss

EC881B-32MT46

HOSE-AER, EC881B, -32, 46M, RL, R2/2SC

Danfoss

EC881B-32

HOSE-AER, EC881B, -32, R2/2SC

Danfoss

EC881B-24MT46

HOSE-AER, EC881B, -24, 46M, RL, R2/2SC

Danfoss

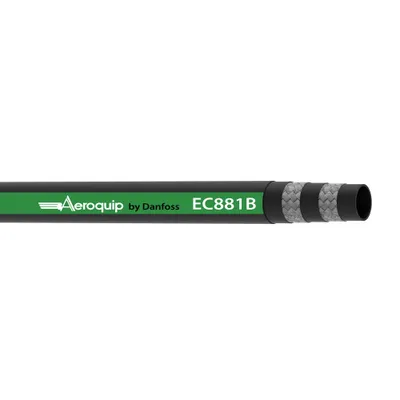

EC881B-24

HOSE-AER, EC881B, -24, R2/2SC

Danfoss

EC881B-20MT46

HOSE-AER, EC881B, -20, 46M, RL, R2/2SC

Compare Braided hose and fittings

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Bend radius min (inch)	Product height in	Product height mm	Product width in	Product width mm
FC310-03	1.770	0.190	4.760	0.190	4.76
FC279-08	7.000	0.500	12.700	0.500	12.7
FC279-06	5.000	0.380	9.500	0.380	9.5
FC279-04	4.000	0.250	6.400	0.250	6.4
FC2542-12S	—	0.055	1.420	0.055	1.42
FC2542-08S	—	1.080	4.200	4.200	1.08
FC2542-06S	—	0.039	1.015	0.039	1.015
FC2542-04S	—	0.817	20.751	0.750	19.05
FC194-06	4.920	0.380	9.500	0.380	9.5
FC1346-40S	—	3.500	88.900	3.500	88.9
EC981-8-06000	3.540	0.500	12.700	0.500	12.7
EC981-8	3.540	0.500	12.700	0.500	12.7
EC881B-8MT50	2.360	0.500	12.700	0.500	12.7
EC881B-8	2.360	0.500	12.700	0.500	12.7
EC881B-6MT50	1.650	0.380	9.500	0.380	9.5
EC881B-5MT50	1.500	0.310	7.900	0.310	7.9
EC881B-5	1.500	0.310	7.900	0.310	7.9
EC881B-4MT50	1.300	0.250	6.400	0.250	6.4
EC881B-4	1.300	0.250	6.400	0.250	6.4
EC881B-32MT46	12.400	2.000	50.800	2.000	50.8
EC881B-32	12.400	2.000	50.800	2.000	50.8
EC881B-24MT46	9.840	1.500	38.100	1.500	38.1
EC881B-24	9.840	1.500	38.100	1.500	38.1
EC881B-20MT46	8.270	1.250	31.800	1.250	31.8
