Braided hose and fittings Parts
Compare Braided hose and fittings
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Bend radius min (inch) | Bend radius min (mm) | Burst pressure (psi) | Outside diameter (mm) | EAN/UPC |
|---|---|---|---|---|---|

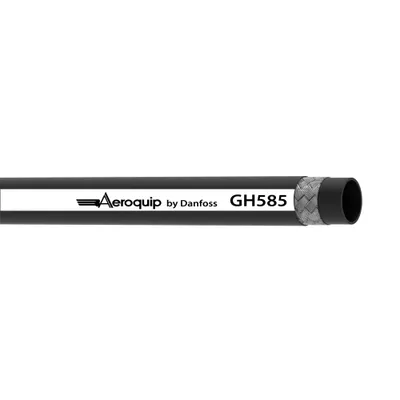

| GH585-3MT50 | 1.380 | 35.000 | 4600 | 11.68 | — |
| GH585-3 | 1.380 | 35.000 | 4600 | 11.68 | — |
| GH585-16MT50 | 5.910 | 150.000 | 2320 | 34.29 | — |
| GH585-16 | 5.910 | 150.000 | 2320 | 34.29 | — |
| GH585-12MT50 | 4.330 | 110.000 | 2620 | 26.92 | — |
| GH585-12 | 4.330 | 110.000 | 2620 | 26.92 | — |
| GH585-10MT50 | 3.540 | 90.000 | 2900 | 23.88 | — |
| GH585-10 | 3.540 | 90.000 | 2900 | 23.88 | 678146214249 |
| GH25864-32 | — | — | — | — | — |
| GH196-32 | 24.800 | 630.000 | 6100 | 67.82 | — |
| GH196-24 | 19.680 | 500.000 | 7200 | 55.12 | 678146214188 |
| GH195-8RL | 7.010 | 178.000 | 17000 | 22.10 | 678146149732 |
| GH195-8 | 7.010 | 178.000 | 17000 | 22.10 | 678146073341 |
| GH195-6RL | 5.000 | 127.000 | 20000 | 19.20 | 678146149725 |
| GH195-6 | 5.000 | 127.000 | 20000 | 19.20 | 678146066688 |
| GH195-4RL | 4.020 | 102.000 | 23200 | 15.10 | 678146149718 |
| GH195-4 | 4.020 | 102.000 | 23200 | 15.10 | 678146167804 |
| GH195-32 | 25.000 | 635.000 | 6100 | 67.80 | 678146071972 |
| GH195-24 | 20.000 | 508.000 | 7250 | 55.10 | 678146149688 |
| GH195-20 | 16.500 | 419.000 | 9000 | 48.50 | 678146149671 |
| GH195-16RL | 12.010 | 305.000 | 10200 | 37.80 | 678146149664 |
| GH195-16 | 12.010 | 305.000 | 10200 | 37.80 | 678146167811 |
| GH195-12RL | 9.490 | 241.000 | 12500 | 29.50 | 678146073051 |
| GH195-12 | 9.490 | 241.000 | 12500 | 29.50 | 678146068408 |
