Braided hose and fittings Parts
Compare Braided hose and fittings
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | A dimension IN | A dimension MM | Inside diameter IN | Inside diameter MM | Product height in |
|---|---|---|---|---|---|
| 00710-20Z | 2.120 | 54.000 | 1.4900 | 38.0000 | 1.961 |
| 00710-16Z | 1.800 | 45.900 | 1.2200 | 31.0000 | 1.512 |
| 00710-12Z | 1.490 | 38.000 | 0.9700 | 24.7000 | 1.244 |
| 00710-10Z | 1.370 | 35.000 | 0.8600 | 22.0000 | 1.150 |

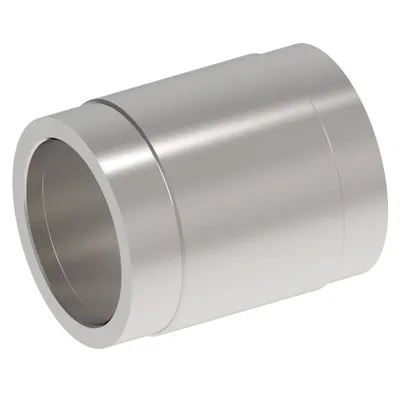

| 00710-08Z | 1.180 | 30.000 | 0.7400 | 18.8000 | 0.960 |

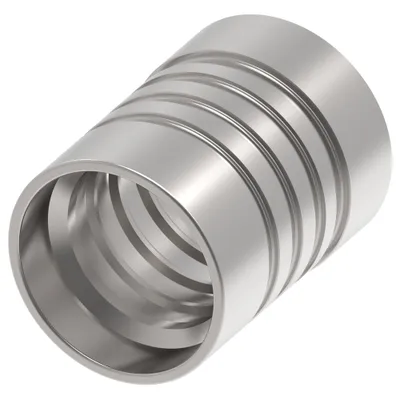

| 00621-32Z | 4.250 | 108.000 | 2.5300 | 64.5000 | 3.370 |
| 00621-32SR | 4.250 | 108.000 | 2.539 | 64.500 | 3.370 |
| 00621-24ZN | 3.970 | 101.000 | 1.9400 | 49.5000 | 2.732 |
| 00621-24Z | 3.970 | 101.000 | 1.9400 | 49.5000 | 2.732 |
| 00621-24SV | 4.010 | 102.000 | 1.940 | 49.500 | 2.732 |
| 00621-24SR | 4.010 | 102.000 | 1.940 | 49.500 | 2.732 |
| 00621-20Z | 3.480 | 88.500 | 1.7000 | 43.4000 | 2.362 |
| 00621-20SV | 3.480 | 88.500 | 1.700 | 43.400 | 2.362 |
| 00621-16Z | 2.598 | 66.000 | 1.4700 | 37.4000 | 2.008 |
| 00621-12Z | 2.090 | 53.000 | 1.1100 | 28.3000 | 1.575 |
| 00518S-02SV | — | 102.000 | 1.9400 | 49.5000 | — |
| 00518S-02SR | — | 88.500 | 1.7000 | 43.4000 | — |

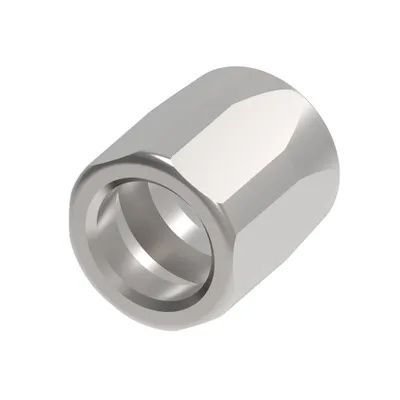

| 00518-32Z | 2.240 | 57.000 | 2.1500 | 54.8000 | 2.756 |
| 00518-24Z | 1.850 | 47.000 | 1.6700 | 42.5000 | 2.126 |
| 00518-16Z | 1.650 | 42.000 | 1.1700 | 29.8000 | 1.535 |

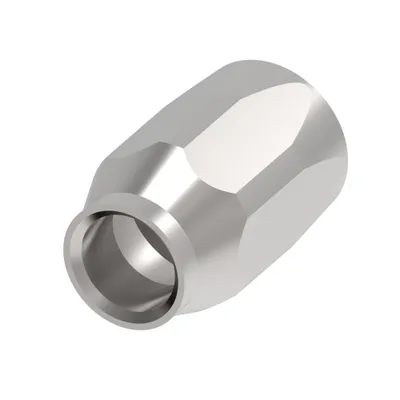

| 00518-10Z | 1.790 | 45.500 | 0.8700 | 22.1000 | 1.252 |

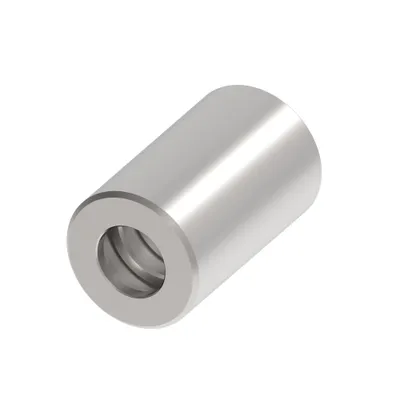

| 00407-08Z | 2.360 | 60.000 | 0.6400 | 16.5000 | 1.330 |
Common to all listed parts
| Angle shape | Straight |
| Thread sealant | No |
