Braided hose and fittings Parts

Danfoss

GH663-16R150

HOSE-AER, GH663, -16, 150FT, RL, R1/1SN

Danfoss

GH663-16-18000

HOSE-AER, GH663, -16, 150FT, CL, R1/1SN

Danfoss

GH663-16

HOSE-AER, GH663, -16, R1/1SN

Danfoss

GH663-12RL

HOSE-AER, GH663, -12, RL, R1/1SN

Danfoss

GH663-12R250US

HOSE-AER, GH663, -12, 250FT, RL, R1/1SN

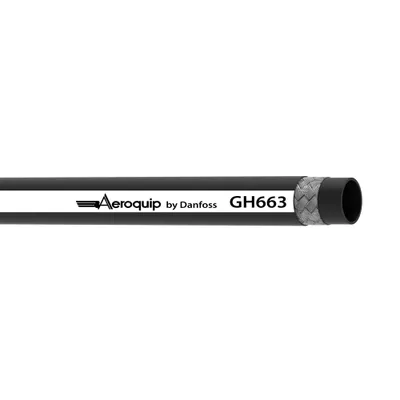

Danfoss

GH663-12R250

HOSE-AER, GH663, -12, 250FT, RL, R1/1SN

Danfoss

GH663-12-06000

HOSE-AER, GH663, -12, 600IN, CL, R1/1SN

Danfoss

GH663-12

HOSE-AER, GH663, -12, R1/1SN

Danfoss

GH586-8

HOSE-AER, GH586, -8, EN854-3T

Danfoss

GH586-6

HOSE-AER, GH586, -6, EN854-3T

Danfoss

GH586-5

HOSE-AER, GH586, -5, EN854-3T

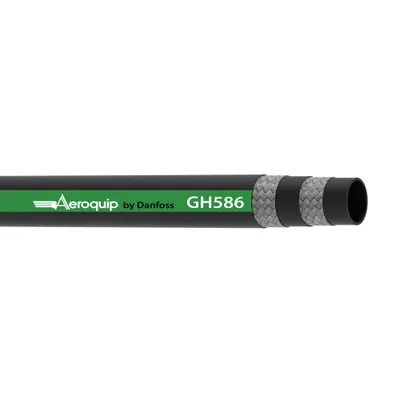

Danfoss

GH586-4

HOSE-AER, GH586, -4, EN854-3T

Danfoss

GH586-20MT46

HOSE-AER, GH586, -20, 46M, RL, EN854-3T

Danfoss

GH586-20

HOSE-AER, GH586, -20, EN854-3T

Danfoss

GH586-16

HOSE-AER, GH586, -16, EN854-3T

Danfoss

GH586-12

HOSE-AER, GH586, -12, EN854-3T

Danfoss

GH586-10

HOSE-AER, GH586, -10, EN854-3T

Danfoss

GH585-8MT50

HOSE-AER, GH585, -8, 50M, RL, EN854-2T

Danfoss

GH585-8

HOSE-AER, GH585, -8, EN854-2T

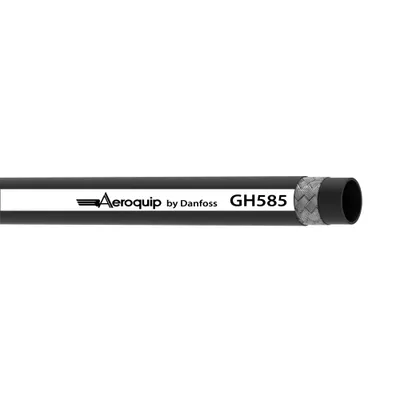

Danfoss

GH585-6MT50

HOSE-AER, GH585, -6, 50M, RL, EN854-2T

Danfoss

GH585-6

HOSE-AER, GH585, -6, EN854-2T

Danfoss

GH585-5MT50

HOSE-AER, GH585, -5, 50M, RL, EN854-2T

Danfoss

GH585-4MT50

HOSE-AER, GH585, -4, 50M, RL, EN854-2T

Danfoss

GH585-4

HOSE-AER, GH585, -4, EN854-2T

Compare Braided hose and fittings

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Burst pressure (bar)	Burst pressure (psi)	Outside diameter (inch)	Outside diameter (mm)	Working pressure max (bar)
GH663-16R150	412	5970	1.40	35.56	103
GH663-16-18000	412	5970	1.40	35.56	103
GH663-16	412	5970	1.40	35.56	103
GH663-12RL	552	8000	1.09	27.69	138
GH663-12R250US	552	8000	1.09	27.69	138
GH663-12R250	552	8000	1.09	27.69	138
GH663-12-06000	552	8000	1.09	27.69	138
GH663-12	552	8000	1.09	27.69	138
GH586-8	372	5400	0.85	21.59	93
GH586-6	440	6400	0.73	18.54	110
GH586-5	520	7600	0.67	17.02	130
GH586-4	580	8400	0.57	14.48	145
GH586-20MT46	180	2620	1.67	42.42	45
GH586-20	180	2620	1.67	42.42	45
GH586-16	220	3200	1.41	35.81	55
GH586-12	280	4000	1.14	28.96	70
GH586-10	320	4600	1.02	25.91	80
GH585-8MT50	232	3360	0.78	19.81	58
GH585-8	232	3360	0.78	19.81	58
GH585-6MT50	252	3660	0.65	16.51	63
GH585-6	252	3660	0.65	16.51	63
GH585-5MT50	272	3940	0.59	14.99	68
GH585-4MT50	300	4400	0.53	13.46	75
GH585-4	300	4400	0.53	13.46	75

Common to all listed parts

Abrasion resistance	Standard
Color	Black
Conductivity	Conductive
Tube material	Nitrile (NBR)
