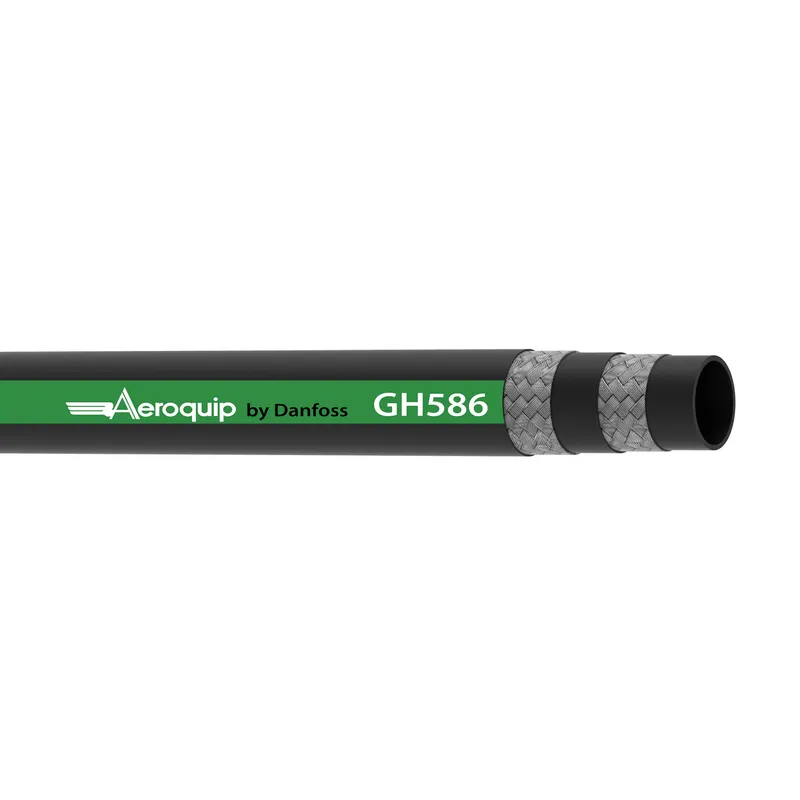

Danfoss GH586-20MT46

HOSE-AER, GH586, -20, 46M, RL, EN854-3T

MPN: GH586-20MT46
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss GH586-20MT46?

Danfoss HOSE-AER, GH586, -20, 46M, RL, EN854-3T, manufacturer part number GH586-20MT46. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Abrasion resistance	Standard
Application	Water
Bend radius min (inch)	7.480
Bend radius min (mm)	190.000
Brand	Aeroquip by Danfoss
Burst pressure (bar)	180
Burst pressure (psi)	2620
Color	Black
Compliances	EN854 Type 3TE
Conditional temp range	125C [257F] Intermittently
Conductivity	Conductive
Construction	2 Ply braid
Cover material	Chloroprene (CR)
Fixed Length	46.000
Impulse cycle (cycles)	200000
Inside diameter (inch)	1.25
Inside diameter (mm)	31.80
Lay line style	Embossed
Length (in)	1811.00000
Length (mm)	46000.00000
Outside diameter (inch)	1.67
Outside diameter (mm)	42.42
Package form	Reel
Product height in	1.250
Product height mm	31.800
Product width in	1.250
Product width mm	31.8
Qualified hose fittings	FJ
Reinforcement material	Fabric
Series	GH586 Series
Size	-20
Tube material	Nitrile (NBR)
Tube wall thickness (inch)	0.74
Tube wall thickness (mm)	18.80
Vacuum rating (inHg)	18
Vacuum rating (mmHg)	457.20
Working pressure max (bar)	45
Working pressure max (psi)	655
Working temperature max (C)	100
Working temperature max (F)	212.0
Working temperature min (C)	-40
Working temperature min (F)	-40.0
