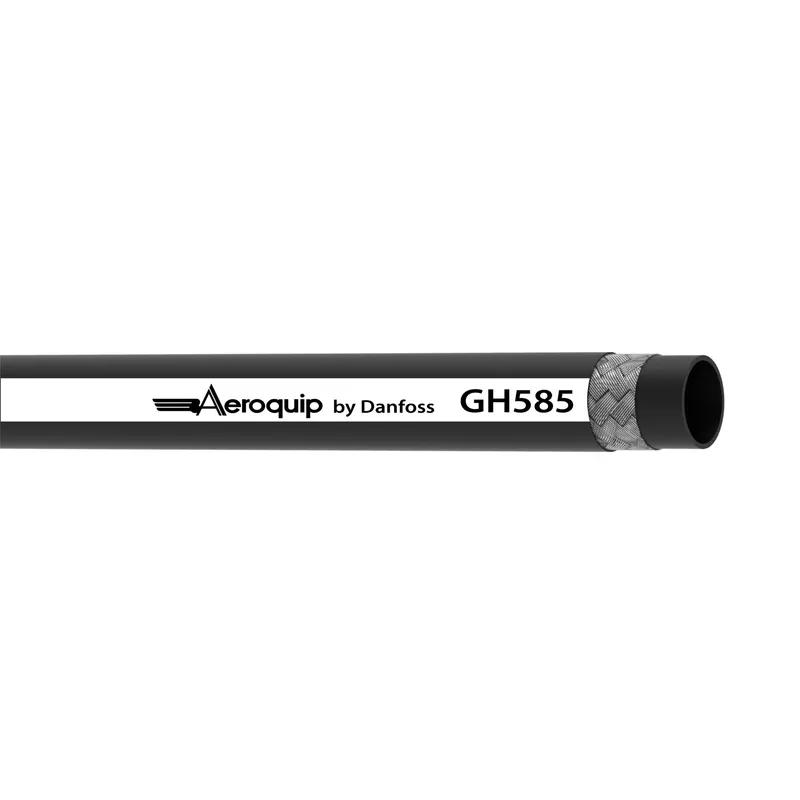

Danfoss GH585-6MT50

HOSE-AER, GH585, -6, 50M, RL, EN854-2T

MPN: GH585-6MT50
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss GH585-6MT50?

Danfoss HOSE-AER, GH585, -6, 50M, RL, EN854-2T, manufacturer part number GH585-6MT50. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Abrasion resistance	Standard
Application	Water
Bend radius min (inch)	2.360
Bend radius min (mm)	60.000
Brand	Aeroquip by Danfoss
Burst pressure (bar)	252
Burst pressure (psi)	3660
Certifications	DIN 20021 Type 2TE, EN854 Type 2TE
Color	Black
Compliances	EN854 Type 2TE
Conditional temp range	125C [257F] Intermittently
Conductivity	Conductive
Construction	2 Ply braid
Cover material	Chloroprene (CR)
Fixed Length	50.000
Impulse cycle (cycles)	100000
Inside diameter (inch)	0.38
Inside diameter (mm)	9.50
Lay line style	Embossed
Length (in)	1968.00000
Length (mm)	50000.00000
Outside diameter (inch)	0.65
Outside diameter (mm)	16.51
Package form	Reel
Product height in	0.380
Product height mm	9.500
Product width in	0.380
Product width mm	9.5
Qualified hose fittings	FJ
Reinforcement material	Fabric
Series	GH585 Series
Size	-6
Tube material	Nitrile (NBR)
Tube wall thickness (inch)	1.25
Tube wall thickness (mm)	31.75
Vacuum rating (inHg)	18
Vacuum rating (mmHg)	457.20
Working pressure max (bar)	63
Working pressure max (psi)	915
Working temperature max (C)	100
Working temperature max (F)	212.0
Working temperature min (C)	-40
Working temperature min (F)	-40.0
