Danfoss 06Z-108

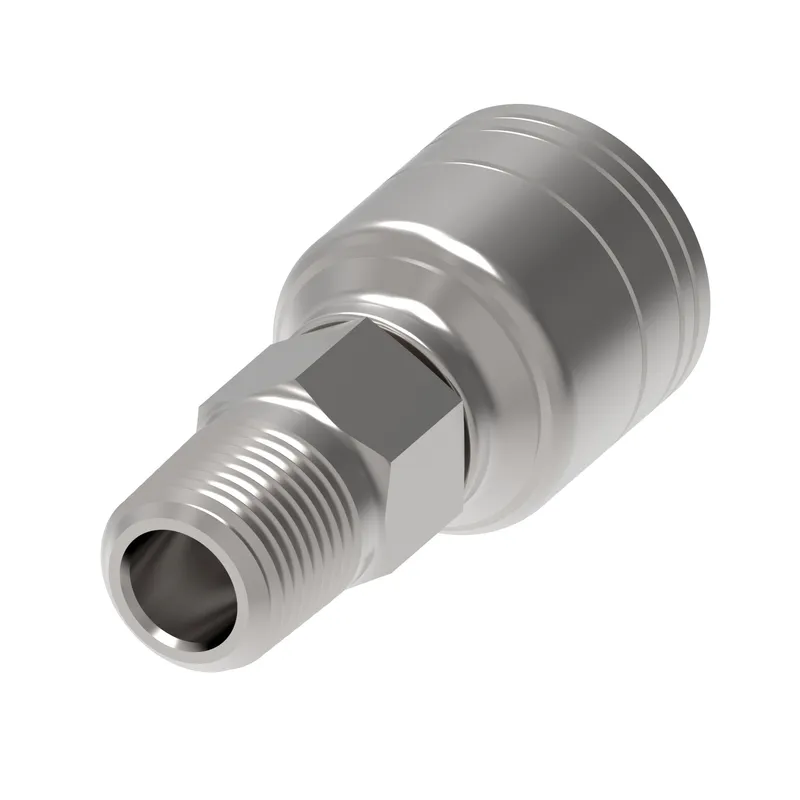

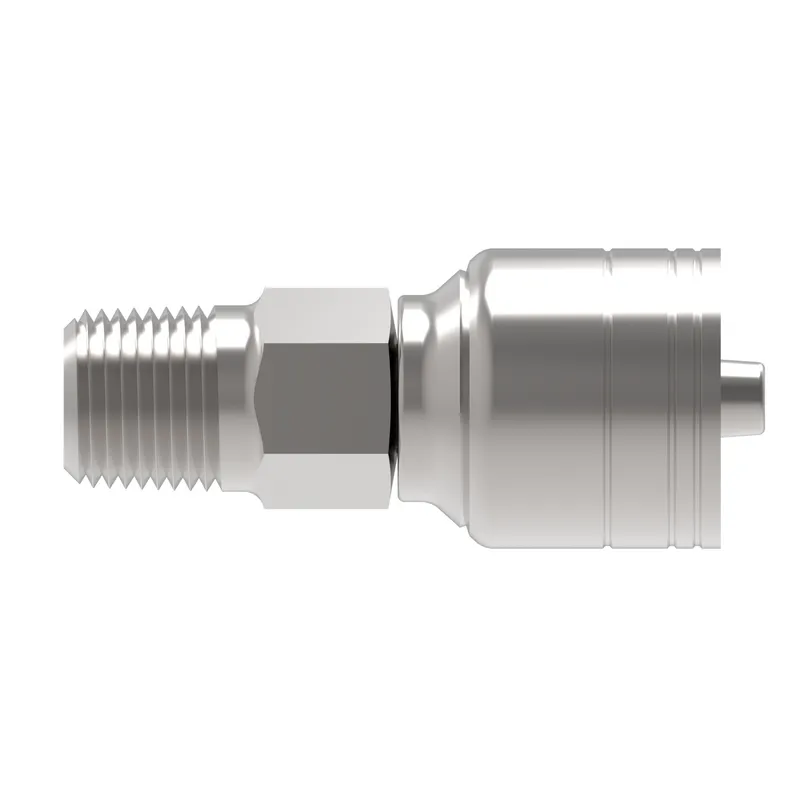

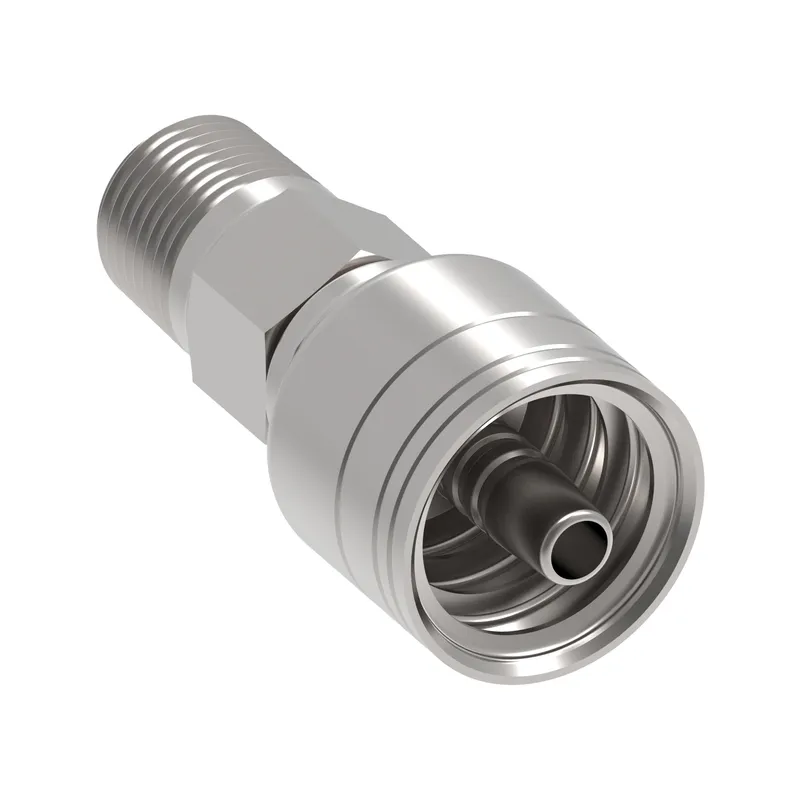

Hose End (perm) 1S/1R Str -08 M Pipe

MPN: 06Z-108
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 06Z-108?

Danfoss Hose End (perm) 1S/1R Str -08 M Pipe, manufacturer part number 06Z-108. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	639789292698
A dimension IN	2.110
A dimension MM	53.700
Angle shape	Straight
Brand	Weatherhead by Danfoss
Compatible hose ID IN	0.380
Compatible hose ID MM	9.500
Compatible tube OD IN	0.38
Compatible tube OD MM	9.525
Compliances	SAE J1176
Construction Style	Crimp
End size 1	-8
End type 1	Male pipe (NPTF)
Finish plating	Dura-Kote
Hex size 1 IN	0.880
Hex size 1 MM	22.400
Hex size 2 MM	21.000
Hose cut off factor IN	1.280
Hose cut off factor MM	32.512
Hose size	-6
Inside diameter IN	0.2600
Inside diameter MM	6.6040
Product material	Carbon steel
Series	1A/Z Series
Thread sealant	No
Thread size 1	1/2-14 NPTF
Tube OD 1 IN	0.375
Tube OD 1 MM	9.525
Working pressure max BAR	414
Working pressure max PSI	6000
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
