Braided hose and fittings Parts

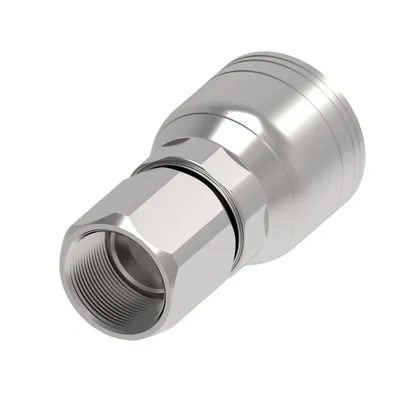

Danfoss

1A6FJ6

HOSE FTG, 1A/06, JIC-F/06, CS, STR

Danfoss

1A6FJ5

HOSE FTG, 1A/05, JIC-F/06, CS, STR

Danfoss

1A6FJ4

HOSE FTG, 1A/04, JIC-F/06, CS, STR

Danfoss

1A6FC6

HOSE FTG, 1A/06, STC-F/06, CS, STR

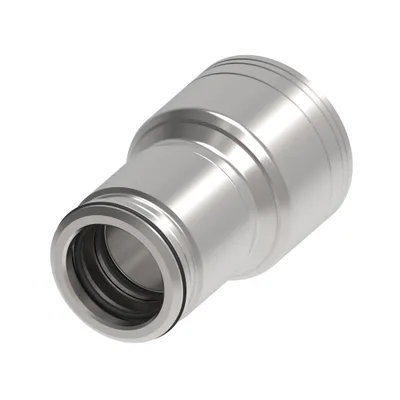

Danfoss

1A6FC4

HOSE FTG, 1A/04, STC-F/06, CS, STR

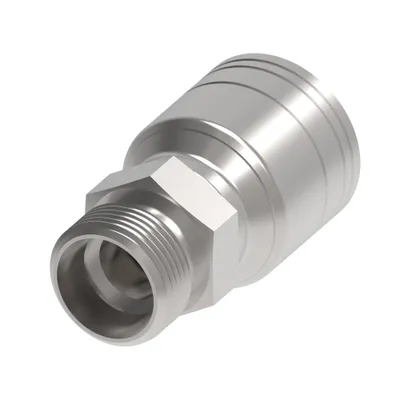

Danfoss

1A6EK6

HOSE FTG, 1A/06, DKH-M/06, CS, STR

Danfoss

1A6EK4

HOSE FTG, 1A/04, DKH-M/06, CS, STR

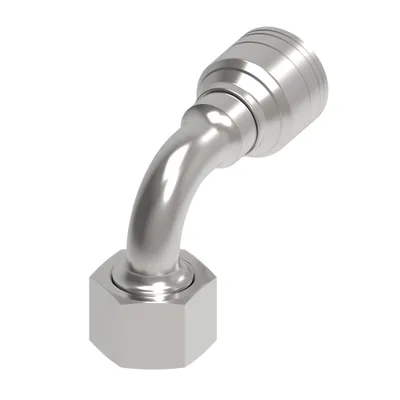

Danfoss

1A6DSB6

HOSE FTG, 1A/06, DKOH-B/06, CS, 90D

Danfoss

1A6DSB5

HOSE FTG, 1A/05, DKOH-B/06, CS, 90D

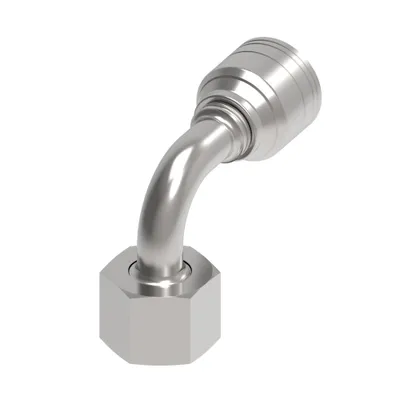

Danfoss

1A6DSB4

HOSE FTG, 1A/04, DKOH-B/06, CS, 90D

Danfoss

1A6DSA6

HOSE FTG, 1A/06, DKOH-B/06, CS, 45D

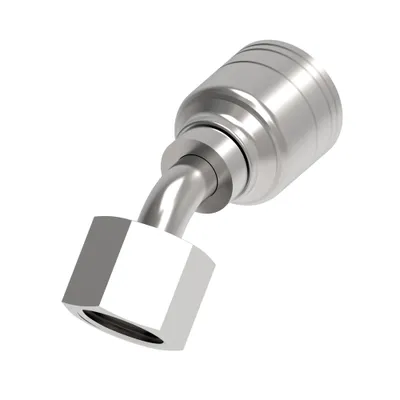

Danfoss

1A6DSA5

HOSE FTG, 1A/05, DKOH-B/06, CS, 45D

Danfoss

1A6DSA4

HOSE FTG, 1A/04, DKOH-B/06, CS, 45D

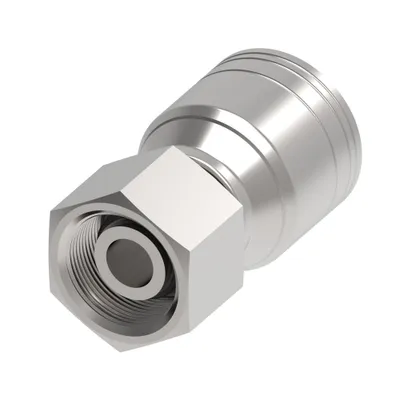

Danfoss

1A6DS6

HOSE FTG, 1A/06, DKOH-B/06, CS, STR

Danfoss

1A6DS5AH

HOSE FTG, 1A/05, DKOH-B/06, CS, STR

Danfoss

1A6DS5

HOSE FTG, 1A/05, DKOH-B/06, CS, STR

Danfoss

1A6DS4

HOSE FTG, 1A/04, DKOH-B/06, CS, STR

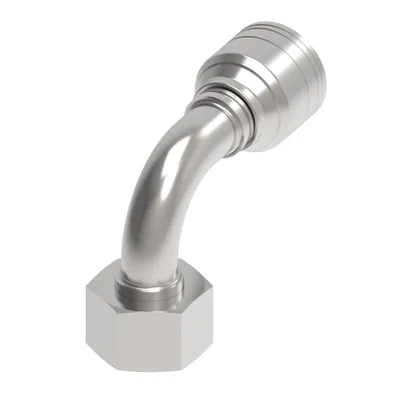

Danfoss

1A6DLB5

HOSE FTG, 1A/05, DKOL/06, CS, 90D

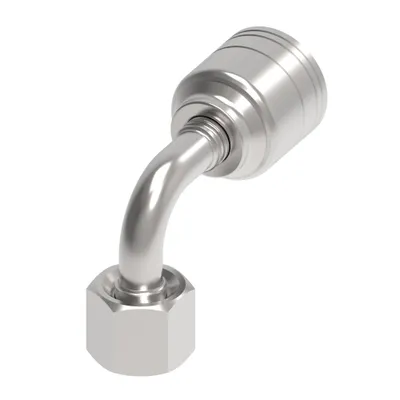

Danfoss

1A6DLB4AH

HOSE FTG, 1A/04, DKOL/06, CS, 90D

Danfoss

1A6DLA4AH

HOSE FTG, 1A/04, DKOL/06, CS, 45D

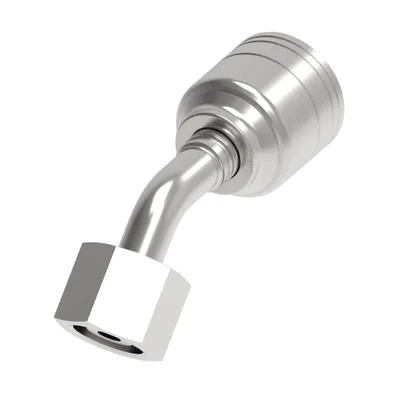

Danfoss

1A6DLA4

HOSE FTG, 1A/04, DKOL/06, CS, 45D

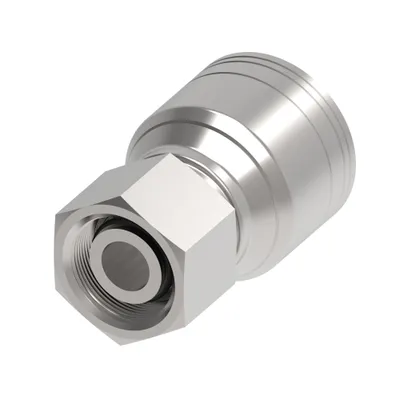

Danfoss

1A6DL6

HOSE FTG, 1A/06, DKOL/06, CS, STR

Danfoss

1A6DL5

HOSE FTG, 1A/05, DKOL/06, CS, STR

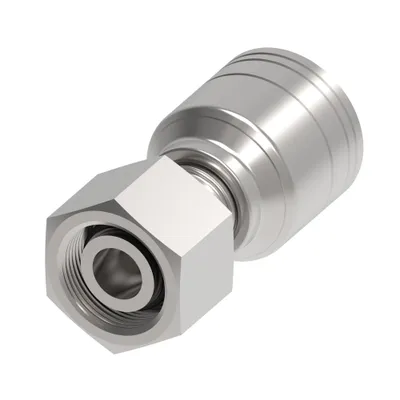

Danfoss

1A6DL4AH

HOSE FTG, 1A/04, DKOL/06, CS, STR

Compare Braided hose and fittings

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	A dimension IN	A dimension MM	Hose cut off factor MM	Product length in	Product length mm
1A6FJ6	2.090	53.000	32.200	2.262	57.470
1A6FJ5	2.100	53.300	31.700	2.187	55.570
1A6FJ4	1.670	42.300	30.600	2.087	53.020
1A6FC6	1.130	28.800	28.702	2.130	54.102
1A6FC4	1.710	43.400	23.114	1.830	46.482
1A6EK6	1.950	49.500	24.200	1.950	49.530
1A6EK4	1.850	47.000	23.600	1.850	46.990
1A6DSB6	2.520	63.900	38.600	2.950	74.930
1A6DSB5	2.120	53.900	30.000	2.555	64.900
1A6DSB4	2.140	54.400	31.000	2.570	65.278
1A6DSA6	2.580	65.600	40.300	3.010	76.454
1A6DSA5	2.450	62.300	38.400	2.885	73.300
1A6DSA4	2.360	60.100	36.700	2.790	70.866
1A6DS6	2.080	52.900	27.600	2.080	52.832
1A6DS5AH	2.020	51.400	27.500	2.020	51.308
1A6DS5	2.020	51.400	27.500	2.023	51.400
1A6DS4	2.000	50.800	27.400	2.000	50.800
1A6DLB5	2.170	55.100	31.200	2.504	63.600
1A6DLB4AH	2.020	51.200	27.700	2.350	59.700
1A6DLA4AH	2.460	62.500	39.100	2.850	72.390
1A6DLA4	2.460	62.500	39.100	2.790	70.866
1A6DL6	1.910	48.500	23.200	1.910	48.500
1A6DL5	1.820	46.200	22.300	1.819	46.200
1A6DL4AH	1.810	46.000	24.100	1.811	46.000

Common to all listed parts

Construction Style	Crimp
Product material	Carbon steel
Series	1A/Z Series
