Home / Motion control / ACOPOSmicro / Terminal blocks

Terminal blocks Parts

B&R

0TB2102.4121-01

Accessory terminal block, 2-pin, AX1

B&R

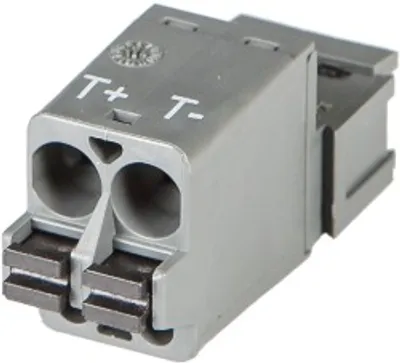

0TB2102.4122-01

Accessory terminal block, 2-pin, AX2

B&R

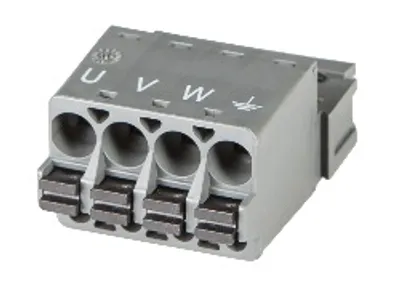

0TB2104.4121-01

Accessory terminal block, 4-pin, AX1

B&R

0TB2104.4122-01

Accessory terminal block, 4-pin, AX2

B&R

0TB2105.4121-01

Accessory terminal block, 5-pin, AX1

B&R

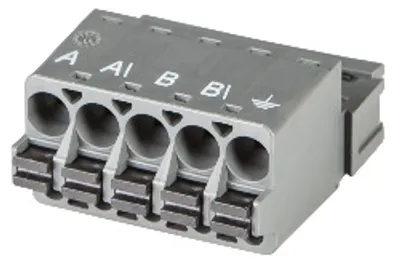

0TB2105.4122-01

Accessory terminal block, 5-pin, AX2

B&R

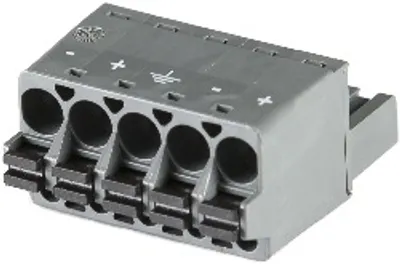

0TB2105.9121-01

Accessory terminal block, 5-pin, DC

B&R

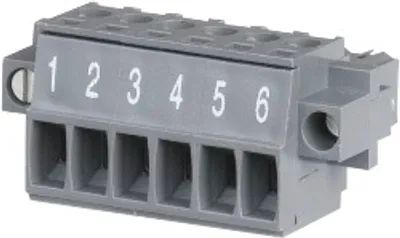

0TB1106.8010

Accessory terminal block, 6-pin

B&R

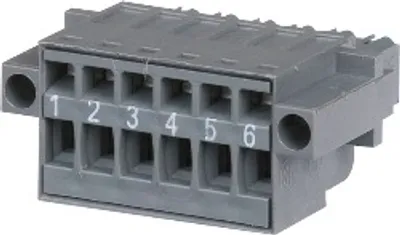

0TB1106.8110

Accessory terminal block, 6-pin, cage clamp terminal block

B&R

0TB1310.3100

Accessory terminal block, 3x 10-pin

B&R

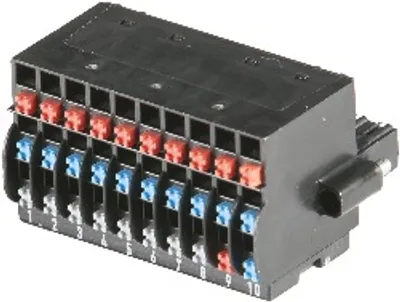

0TB1310.8110

Accessory terminal block, 3x 10-pin

B&R

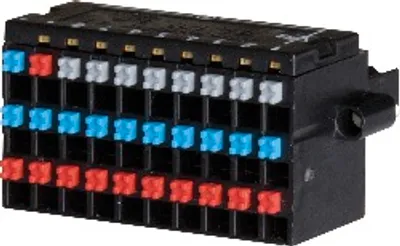

0TB1410.8110-01

Accessory terminal block, 3x 10-pin

B&R

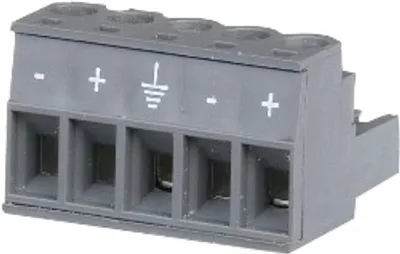

0TB2105.9021

Accessory terminal block, 5-pin, DC

B&R

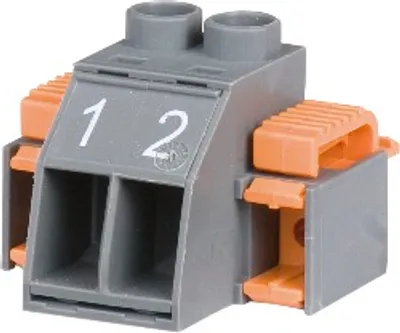

0TB3102-7010

Accessory terminal block, 2-pin

B&R

0TB2105.4031

Accessory terminal block, 5-pin, AX1

B&R

0TB2105.4032

Accessory terminal block, 5-pin, AX2

B&R

0TB2105.4131

Accessory terminal block, 5-pin, AX1

B&R

0TB2105.4132

Accessory terminal block, 5-pin, AX2

Compare Terminal blocks

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Connection cross section – AWG wire	Connection cross section – Wire end sleeves with plastic covering	Connection cross section – With wire end sleeve	Number of pins	Contact resistance
0TB2102.4121-01	26 to 12 AWG	0.20 to 1.50 mm²	0.20 to 2.50 mm²	2	≤5 mΩ
0TB2102.4122-01	26 to 12 AWG	0.20 to 1.50 mm²	0.20 to 2.50 mm²	2	≤5 mΩ
0TB2104.4121-01	26 to 12 AWG	0.20 to 1.50 mm²	0.20 to 2.50 mm²	4	≤5 mΩ
0TB2104.4122-01	26 to 12 AWG	0.20 to 1.50 mm²	0.20 to 2.50 mm²	4	≤5 mΩ
0TB2105.4121-01	26 to 12 AWG	0.20 to 1.50 mm²	0.20 to 2.50 mm²	5	≤5 mΩ
0TB2105.4122-01	26 to 12 AWG	0.20 to 1.50 mm²	0.20 to 2.50 mm²	5	≤5 mΩ
0TB2105.9121-01	26 to 12 AWG	0.20 to 1.50 mm²	0.20 to 2.50 mm²	5	≤5 mΩ
0TB1106.8010	28 to 14 AWG	0.20 to 1.50 mm²	0.20 to 1.50 mm²	6	≤4.2 mΩ
0TB1106.8110	26 to 14 AWG	0.20 to 1.00 mm²	0.20 to 1.50 mm²	6	≤4.2 mΩ
0TB1310.3100	24 to 16 AWG	0.20 to 0.75 mm²	0.20 to 1.00 mm²	30	≤4.2 mΩ
0TB1310.8110	22 to 16 AWG	0.20 to 1.50 mm²	0.20 to 1.50 mm²	30	≤4.2 mΩ
0TB1410.8110-01	22 to 16 AWG	0.20 to 1.50 mm²	0.20 to 1.50 mm²	30	≤4.2 mΩ
0TB2105.9021	26 to 12 AWG	0.25 to 2.50 mm²	0.20 to 2.50 mm²	5	≤2 mΩ
0TB3102-7010	22 to 10 AWG	0.25 to 6 mm²	0.25 to 6 mm²	2	≤4.5 mΩ
0TB2105.4031	26 to 12 AWG	0.25 to 2.50 mm²	0.20 to 2.50 mm²	5	≤2 mΩ
0TB2105.4032	26 to 12 AWG	0.25 to 2.50 mm²	0.20 to 2.50 mm²	5	≤2 mΩ
0TB2105.4131	26 to 12 AWG	0.20 to 1.50 mm²	0.20 to 2.50 mm²	5	≤5 mΩ
0TB2105.4132	26 to 12 AWG	0.20 to 1.50 mm²	0.20 to 2.50 mm²	5	≤5 mΩ

Common to all listed parts

Cable type

Only copper wires (no aluminum wires!)
