B&R 0TB1410.8110-01

Name: B&R 0TB1410.8110-01
Brand: B&R
SKU: 0TB1410.8110-01

MPN: 0TB1410.8110-01 · Brand: B&R

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Terminal blocks
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 0TB1410.8110-01 be shipped?

0TB1410.8110-01 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 0TB1410.8110-01 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 0TB1410.8110-01 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 0TB1410.8110-01, subject to availability and destination.

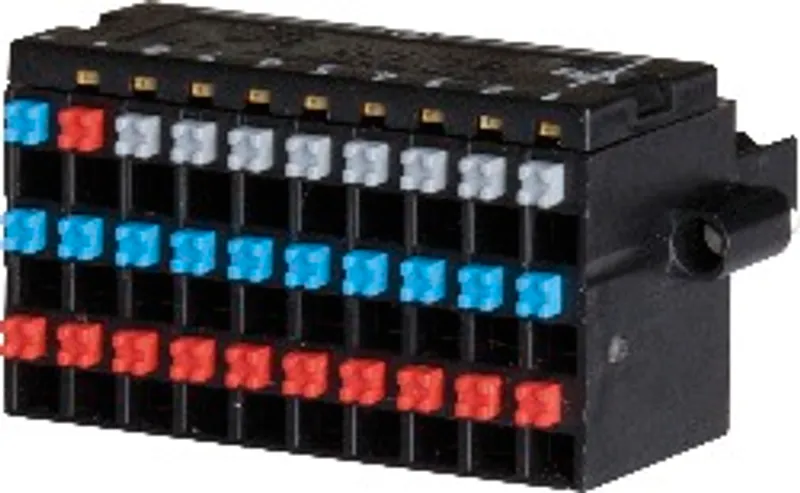

Accessory terminal block, 3x 10-pin, cage clamp terminal block 1.5 mm², protected against vibration by the screw flange, with labeling and LED

Specifications

Note	With LED display, nominal data per UL
Number of pins	30
Type of terminal block	Cage clamp terminal block variant
Cable type	Only copper wires (no aluminum wires!)
Pitch	3.5 mm
AWG wire	22 to 16 AWG
Wire end sleeves with plastic covering	0.20 to 1.50 mm²
Single-wire	0.20 to 1.50 mm²
Fine-stranded wires	0.20 to 1.50 mm²
With wire end sleeve	0.20 to 1.50 mm²
Nominal voltage	50 V
Nominal current	5 A / contact or busbar
Contact resistance	≤4.2 mΩ
