SIRIUS 3RA2 load feeders Parts
























Compare SIRIUS 3RA2 load feeders
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | manufacturer's article number — of the supplied contactor | manufacturer's article number — of the supplied circuit-breakers | Net Weight | adjustable current response value current of the current-dependent overload release | response value current of instantaneous short-circuit trip unit |
|---|---|---|---|---|---|
| 3RA2110-0FH15-1BB4 | 3RT2015-2BB41 | 3RV2011-0FA20 | 0.902 kg | 0.35 ... 0.5 A | 6.5 A |
| 3RA2110-0FH15-1AP0 | 3RT2015-2AP01 | 3RV2011-0FA20 | 0.857 kg | 0.35 ... 0.5 A | 6.5 A |
| 3RA2110-0FE15-1BB4 | 3RT2015-2BB41 | 3RV2011-0FA20 | 0.638 kg | 0.35 ... 0.5 A | 6.5 A |

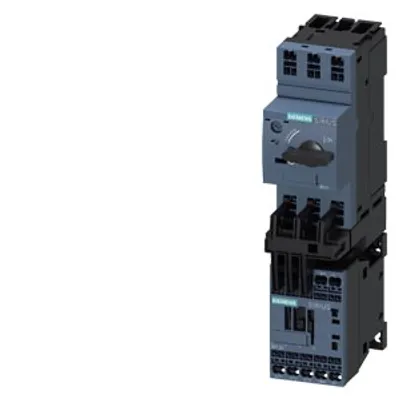

| 3RA2110-0FE15-1AP0 | — | — | 621.95 g | 0.35 ... 0.5 A | 6.5 A |
| 3RA2110-0FD15-1FB4 | — | — | 0.821 kg | 0.35 ... 0.5 A | 6.5 A |
| 3RA2110-0FD15-1BB4 | 3RT2015-1BB41 | 3RV2011-0FA10 | 0.798 kg | 0.35 ... 0.5 A | 6.5 A |
| 3RA2110-4AA18-1BB4 | 3RT2018-1BB41 | 3RV2011-4AA10 | 0.57 kg | 10 ... 16 A | 208 A |
| 3RA2110-4AA18-1AP0 | — | — | 0.514 kg | 10 ... 16 A | 208 A |
| 3RA2110-1KA17-1AP0 | — | — | 0.508 kg | 9 ... 12.5 A | 163 A |
| 3RA2110-1JH16-1BB4 | 3RT2016-2BB41 | 3RV2011-1JA20 | 1.007 kg | 7 ... 10 A | 130 A |
| 3RA2110-1JH16-1AP0 | 3RT2016-2AP01 | 3RV2011-1JA20 | 0.952 kg | 7 ... 10 A | 130 A |
| 3RA2110-1JE16-1BB4 | 3RT2016-2BB41 | 3RV2011-1JA20 | 0.711 kg | 7 ... 10 A | 130 A |
| 3RA2110-0BE15-1AP0 | 3RT2015-2AP01 | 3RV2011-0BA20 | 0.572 kg | 0.14 ... 0.2 A | 2.6 A |
| 3RA2110-0BD15-1FB4 | — | — | 0.764 kg | 0.14 ... 0.2 A | 2.6 A |

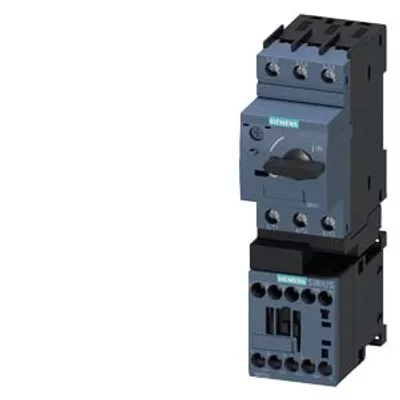

| 3RA2110-0BA15-1AP0 | — | — | 0.434 kg | 0.14 ... 0.2 A | 2.6 A |
| 3RA2125-4BE27-0FB4 | 3RT2027-2FB40 | 3RV2021-4BA25 | 1.05 kg | 13 ... 20 A | 260 A |
| 3RA2110-1DH15-1BB4 | 3RT2015-2BB41 | 3RV2011-1DA20 | 0.997 kg | 2.2 ... 3.2 A | 42 A |
| 3RA2110-1DH15-1AP0 | 3RT2015-2AP01 | 3RV2011-1DA20 | 0.925 kg | 2.2 ... 3.2 A | 42 A |
| 3RA2110-1DE15-1BB4 | 3RT2015-2BB41 | 3RV2011-1DA20 | 709.444 g | 2.2 ... 3.2 A | 42 A |
| 3RA2110-1DE15-1AP0 | 3RT2015-2AP01 | 3RV2011-1DA20 | 0.645 kg | 2.2 ... 3.2 A | 42 A |
| 3RA2110-1DA15-1FB4 | 3RT2015-1FB41 | 3RV2011-1DA10 | 0.562 kg | 2.2 ... 3.2 A | 42 A |
| 3RA2110-1DA15-1BB4 | 3RT2015-1BB41 | 3RV2011-1DA10 | 562.182 g | 2.2 ... 3.2 A | 42 A |
| 3RA2115-0KH15-1FB4 | 3RT2015-2FB41 | 3RV2011-0KA25 | 0.939 kg | 0.9 ... 1.25 A | 16 A |
| 3RA2115-0KE15-1FB4 | 3RT2015-2FB41 | 3RV2011-0KA25 | 0.68 kg | 0.9 ... 1.25 A | 16 A |
Common to all listed parts
| type of calculation of power loss current-dependent | quadratic |
| insulation voltage with degree of pollution 3 at AC rated value | 690 V |
| surge voltage resistance rated value | 6 kV |
| degree of protection NEMA rating | other |
| shock resistance according to IEC 60068-2-27 | 6 g / 11 ms |
| reference code according to IEC 81346-2:2019 | Q |
| temperature compensation | -20 ... +60 °C |
| relative humidity during operation | 10 ... 95 % |
