SIRIUS 3RA2 load feeders Parts
























Compare SIRIUS 3RA2 load feeders
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Net Weight | adjustable current response value current of the current-dependent overload release | operational current – at AC-3 at 400 V rated value | operational current – at AC-3e at 400 V rated value | response value current of instantaneous short-circuit trip unit |
|---|---|---|---|---|---|
| 3RA2215-1AA16-2BB4-Z X95 | 0.943 kg | 1.1 ... 1.6 A | 1.6 A | 1.6 A | 21 A |
| 3RA2215-1AA16-2BB4 | 0.943 kg | 1.1 ... 1.6 A | 1.6 A | 1.6 A | 21 A |
| 3RA2130-4VA36-0NB3 | 2.166 kg | 35 ... 45 A | 45 A | 45 A | 650 A |
| 3RA2130-4UA35-0NB3 | 2.152 kg | 32 ... 40 A | 40 A | 40 A | 585 A |
| 3RA2130-4EA35-0NB3 | 2.154 kg | 22 ... 32 A | 32 A | 32 A | 416 A |
| 3RA2130-4EA35-0AP0 | 1.999 kg | 22 ... 32 A | 32 A | 32 A | 416 A |
| 3RA2115-1CH15-1FB4 | 0.947 kg | 1.8 ... 2.5 A | — | — | 33 A |
| 3RA2115-1CE15-1FB4 | 0.766 kg | 1.8 ... 2.5 A | — | — | 33 A |
| 3RA2115-1CA16-2BB4-Z X95 | 0.601 kg | 1.8 ... 2.5 A | 2.5 A | 2.5 A | 33 A |
| 3RA2120-4EE27-0BB4 | 1.077 kg | 27 ... 32 A | 29 A | 29 A | 400 A |
| 3RA2120-4EE27-0AP0 | 0.913 kg | 27 ... 32 A | 29 A | 29 A | 400 A |
| 3RA2120-4ED27-0FB4 | 1.211 kg | 27 ... 32 A | 29 A | 29 A | 400 A |
| 3RA2120-4ED27-0BB4 | 1.293 kg | 27 ... 32 A | 29 A | 29 A | 400 A |
| 3RA2120-4ED27-0AP0 | 1.047 kg | 27 ... 32 A | — | — | 400 A |
| 3RA2110-1HA15-1BB4 | 0.568 kg | 5.5 ... 8 A | — | — | 104 A |
| 3RA2110-1HA15-1AP0 | 0.51 kg | 5.5 ... 8 A | — | — | 104 A |
| 3RA2110-1GS15-1BB4 | 0.981 kg | 4.5 ... 6.3 A | 6.3 A | 6.3 A | 82 A |
| 3RA2110-1FH15-1AP0 | 0.952 kg | 3.5 ... 5 A | 5 A | 5 A | 65 A |
| 3RA2110-1FE15-1BB4 | 0.76 kg | 3.5 ... 5 A | 5 A | 5 A | 65 A |
| 3RA2110-1FE15-1AP0 | 0.651 kg | 3.5 ... 5 A | — | — | 65 A |
| 3RA2110-0DE15-1BB4 | 0.637 kg | 0.22 ... 0.32 A | — | — | 4.2 A |
| 3RA2110-0DE15-1AP0 | 0.573 kg | 0.22 ... 0.32 A | 0.3 A | 0.32 A | 4.2 A |

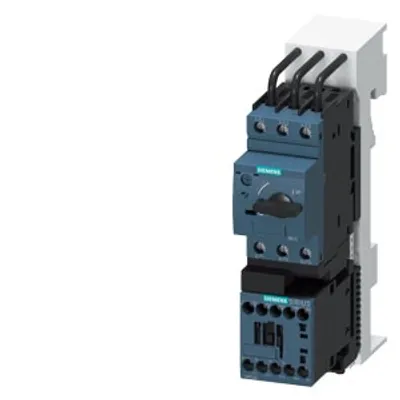

| 3RA2110-0DD15-1FB4 | 0.764 kg | 0.22 ... 0.32 A | 0.3 A | 0.32 A | 4.2 A |
| 3RA2110-0FS15-1BB4 | 0.893 kg | 0.35 ... 0.5 A | 0.5 A | 0.5 A | 6.5 A |
Common to all listed parts
| type of calculation of power loss current-dependent | quadratic |
| insulation voltage with degree of pollution 3 at AC rated value | 690 V |
| surge voltage resistance rated value | 6 kV |
| degree of protection NEMA rating | other |
| shock resistance according to IEC 60068-2-27 | 6 g / 11 ms |
| reference code according to IEC 81346-2:2019 | Q |
| temperature compensation | -20 ... +60 °C |
| relative humidity during operation | 10 ... 95 % |
