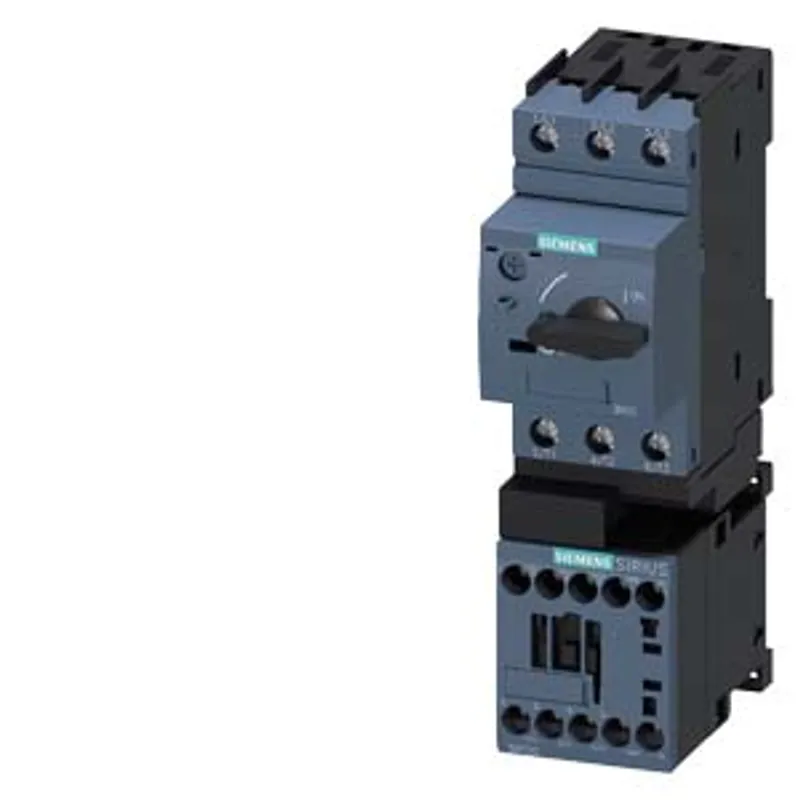

Siemens 3RA2110-1KA17-1AP0 – Load feeder fuseless, Direct-on-line starting 400 V AC

Name: Siemens 3RA2110-1KA17-1AP0 – Load feeder fuseless, Direct-on-line starting 400 V AC
Brand: Siemens
SKU: 3RA2110-1KA17-1AP0

MPN: 3RA2110-1KA17-1AP0 · Brand: Siemens

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	SIRIUS 3RA2 load feeders
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	0.6 kg
Datasheet	Manufacturer datasheet ↗

Shipping & availability

When can 3RA2110-1KA17-1AP0 be shipped?

3RA2110-1KA17-1AP0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3RA2110-1KA17-1AP0 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3RA2110-1KA17-1AP0 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3RA2110-1KA17-1AP0, subject to availability and destination.

Load feeder fuseless, Direct-on-line starting 400 V AC, Size S00 9.00...12.5 A 230 V AC screw terminal for installation on standard mounting rail Type of coordination 1, Iq = 150 kA 1 NO (contactor)

Specifications

General technical data

size of the circuit-breaker	S00
size of load feeder	S00
power loss [W] for rated value of the current – at AC in hot operating state per pole	3.6 W
power loss [W] for rated value of the current – without load current share typical	5.7 W
type of calculation of power loss current-dependent	quadratic
insulation voltage with degree of pollution 3 at AC rated value	690 V
surge voltage resistance rated value	6 kV
degree of protection NEMA rating	other
shock resistance according to IEC 60068-2-27	6 g / 11 ms
mechanical service life (operating cycles) of contactor typical	30 000 000
type of coordination	1
reference code according to IEC 81346-2:2019	Q
Substance Prohibitance (day/month/year)	10/01/2009
Net Weight	0.508 kg

Ambient conditions

ambient temperature – during operation	-20 ... +60 °C
ambient temperature – during storage	-50 ... +80 °C
ambient temperature – during transport	-50 ... +80 °C
temperature compensation	-20 ... +60 °C
relative humidity during operation	10 ... 95 %

Main circuit

number of poles for main current circuit	3
design of the switching contact	electromechanical
adjustable current response value current of the current-dependent overload release	9 ... 12.5 A
operating voltage – rated value	690 V
operating voltage – at AC-3 rated value maximum	690 V
operating voltage – at AC-3e rated value maximum	690 V
operating frequency rated value	50 ... 60 Hz
operational current – at AC-3 at 400 V rated value	12 A
operational current – at AC-3e at 400 V rated value	12 A
at AC-3 – — at 400 V rated value	5 500 W
at AC-3e – — at 400 V rated value	5 500 W

Control circuit/ Control

type of voltage of the control supply voltage	AC
control supply voltage at AC – at 50 Hz rated value	230 V
control supply voltage at AC – at 60 Hz rated value	230 V
apparent holding power of magnet coil at AC	5.7 V·A
at 50 Hz	5.7 V·A
at 60 Hz	4.4 V·A
inductive power factor with the holding power of the coil	0.25
at 50 Hz	0.25
at 60 Hz	0.25

Auxiliary circuit

product extension auxiliary switch

Yes

Protective and monitoring functions

trip class	CLASS 10
design of the overload release	thermal (bimetallic)
response value current of instantaneous short-circuit trip unit	163 A

UL/CSA ratings

full-load current (FLA) for 3-phase AC motor – at 480 V rated value	11 A
full-load current (FLA) for 3-phase AC motor – at 600 V rated value	11 A
for single-phase AC motor – — at 110/120 V rated value	0.5 hp
for single-phase AC motor – — at 230 V rated value	2 hp
for 3-phase AC motor – — at 200/208 V rated value	3 hp
for 3-phase AC motor – — at 220/230 V rated value	3 hp
for 3-phase AC motor – — at 460/480 V rated value	7.5 hp
for 3-phase AC motor – — at 575/600 V rated value	10 hp

Short-circuit protection

product function short circuit protection	Yes
design of the short-circuit trip	magnetic
conditional short-circuit current (Iq) – at 400 V according to IEC 60947-4-1 rated value	150 000 A

Installation/ mounting/ dimensions

mounting position	vertical
fastening method	screw and snap-on mounting onto 35 mm DIN rail
height	167 mm
width	45 mm
depth	97 mm
for grounded parts – — forwards	20 mm
for grounded parts – — backwards	0 mm
for grounded parts – — upwards	50 mm
for grounded parts – — at the side	20 mm
for grounded parts – — downwards	10 mm
for live parts – — forwards	20 mm
for live parts – — backwards	0 mm
for live parts – — upwards	50 mm
for live parts – — downwards	10 mm
for live parts – — at the side	20 mm

Connections/ Terminals

type of electrical connection – for main current circuit	screw-type terminals
type of electrical connection – for auxiliary and control circuit	screw-type terminals
