SIRIUS 3RA2 load feeders Parts
























Compare SIRIUS 3RA2 load feeders
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | manufacturer's article number — of the supplied contactor | manufacturer's article number — of the supplied circuit-breakers | Net Weight | adjustable current response value current of the current-dependent overload release | response value current of instantaneous short-circuit trip unit |
|---|---|---|---|---|---|
| 3RA2120-1FA24-0BB4 | 3RT2024-1BB40 | 3RV2011-1FA10 | 0.912 kg | 3.5 ... 5 A | 65 A |
| 3RA2120-1FA24-0AP0 | 3RT2024-1AP00 | 3RV2011-1FA10 | 0.722 kg | 3.5 ... 5 A | 65 A |
| 3RA2110-1CD15-1FB4 | 3RT2015-1FB41 | 3RV2011-1CA10 | 0.821 kg | 1.8 ... 2.5 A | 33 A |
| 3RA2110-1CD15-1BB4 | 3RT2015-1BB41 | 3RV2011-1CA10 | 0.811 kg | 1.8 ... 2.5 A | 33 A |
| 3RA2110-1CD15-1AP0 | 3RT2015-1AP01 | 3RV2011-1CA10 | 0.788 kg | 1.8 ... 2.5 A | 33 A |
| 3RA2110-1CA15-1FB4 | 3RT2015-1FB41 | 3RV2011-1CA10 | 0.565 kg | 1.8 ... 2.5 A | 33 A |
| 3RA2110-1CA15-1BB4 | 3RT2015-1BB41 | 3RV2011-1CA10 | 0.565 kg | 1.8 ... 2.5 A | 33 A |
| 3RA2220-1FD24-0AP0 | 3RT2024-1AP00 | 3RV2011-1FA10 | 2.04 kg | 3.5 ... 5 A | 65 A |
| 3RA2220-1FB24-0BB4 | 3RT2024-1BB40 | 3RV2011-1FA10 | 1.805 kg | 3.5 ... 5 A | 65 A |
| 3RA2220-1FB24-0AP0 | 3RT2024-1AP00 | 3RV2011-1FA10 | 1.4 kg | 3.5 ... 5 A | 65 A |

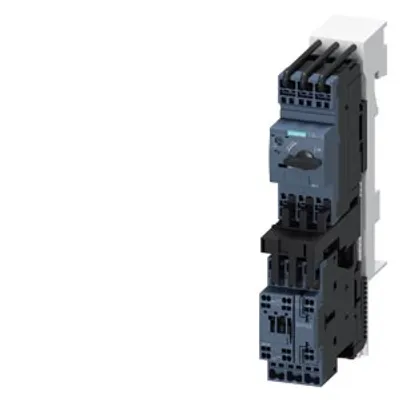

| 3RA2120-4CH27-0AP0 | 3RT2027-2AP00 | 3RV2021-4CA20 | 1.244 kg | 16 ... 22 A | 286 A |

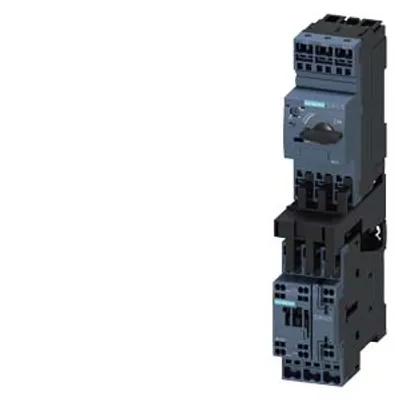

| 3RA2120-4CE27-0BB4 | 3RT2027-2BB40 | 3RV2021-4CA20 | 1.079 kg | 16 ... 22 A | 286 A |
| 3RA2120-4CE27-0AP0 | 3RT2027-2AP00 | 3RV2021-4CA20 | 0.898 kg | 16 ... 22 A | 286 A |
| 3RA2120-4CA27-0AP0 | 3RT2027-1AP00 | 3RV2021-4CA10 | 0.782 kg | 16 ... 22 A | 286 A |
| 3RA2120-4CA26-0AL2 | 3RT2026-1AL20 | 3RV2021-4CA10 | 0.732 kg | 16 ... 22 A | 286 A |
| 3RA2130-4UA35-0AP0 | 3RT2035-1AP00 | 3RV2031-4UA10 | 2.008 kg | 32 ... 40 A | 585 A |
| 3RA2125-4DH27-0FB4 | 3RT2027-2FB40 | 3RV2021-4DA25 | 1.336 kg | 18 ... 25 A | 325 A |
| 3RA2125-4DE27-0FB4 | 3RT2027-2FB40 | 3RV2021-4DA25 | 1.052 kg | 18 ... 25 A | 325 A |
| 3RA2115-1CA16-2BB4 | — | — | 0.601 kg | 1.8 ... 2.5 A | 33 A |
| 3RA2115-0KA16-2BB4-Z X95 | 3RT2016-1BB42 | 3RV2011-0KA15 | 0.578 kg | 0.9 ... 1.25 A | 16 A |
| 3RA2115-0KA16-2BB4 | 3RT2016-1BB42 | 3RV2011-0KA15 | 0.578 kg | 0.9 ... 1.25 A | 16 A |
| 3RA2115-0JH15-1FB4 | 3RT2015-2FB41 | 3RV2011-0JA25 | 0.954 kg | 0.7 ... 1 A | 13 A |
| 3RA2120-4NH27-0BB4 | 3RT2027-2BB40 | 3RV2021-4NA20 | 1.396 kg | 23 ... 28 A | 364 A |
| 3RA2120-4EA27-0FB4 | 3RT2027-1FB40 | 3RV2021-4EA10 | 0.941 kg | 27 ... 32 A | 400 A |
Common to all listed parts
| type of calculation of power loss current-dependent | quadratic |
| insulation voltage with degree of pollution 3 at AC rated value | 690 V |
| surge voltage resistance rated value | 6 kV |
| degree of protection NEMA rating | other |
| shock resistance according to IEC 60068-2-27 | 6 g / 11 ms |
| reference code according to IEC 81346-2:2019 | Q |
| temperature compensation | -20 ... +60 °C |
| relative humidity during operation | 10 ... 95 % |
