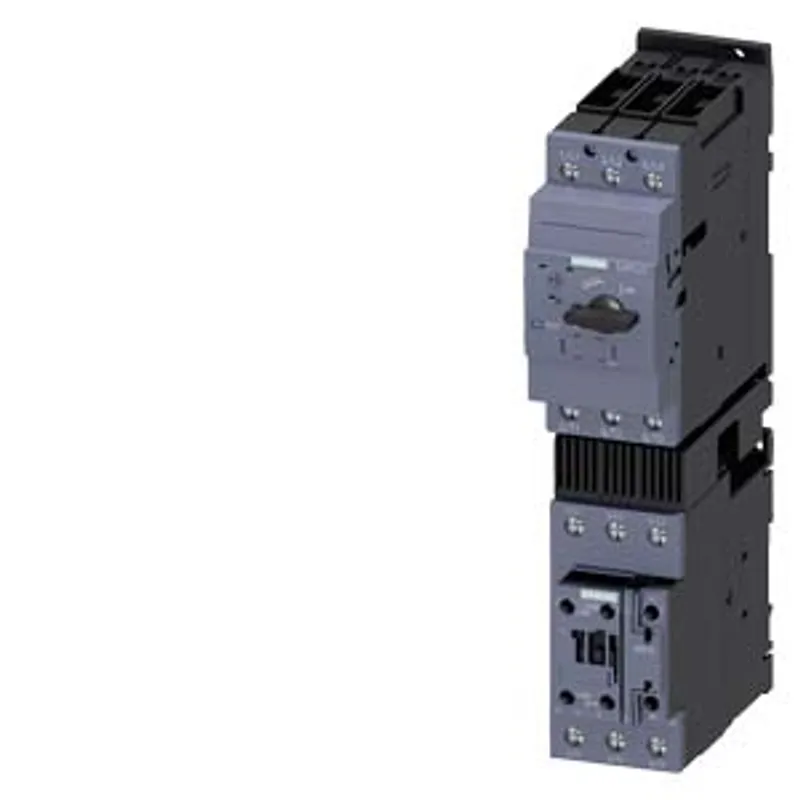

Siemens 3RA2130-4UA35-0NB3 – Load feeder fuseless, Direct-on-line starting 400 V AC

Name: Siemens 3RA2130-4UA35-0NB3 – Load feeder fuseless, Direct-on-line starting 400 V AC
Brand: Siemens
SKU: 3RA2130-4UA35-0NB3

MPN: 3RA2130-4UA35-0NB3 · Brand: Siemens

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	SIRIUS 3RA2 load feeders
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	2.28 kg
Datasheet	Manufacturer datasheet ↗

Shipping & availability

When can 3RA2130-4UA35-0NB3 be shipped?

3RA2130-4UA35-0NB3 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3RA2130-4UA35-0NB3 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3RA2130-4UA35-0NB3 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3RA2130-4UA35-0NB3, subject to availability and destination.

Load feeder fuseless, Direct-on-line starting 400 V AC, Size S2 32...40 A 20 ... 33 V AC/DC screw terminal for installation on standard mounting rail (also fulfills type of coordination 1) Type of coordination 2, Iq = 100 kA 1 NO+1 NC (contactor) with circuit (integrated)

Specifications

General technical data

size of the circuit-breaker	S2
size of load feeder	S2
power loss [W] for rated value of the current – at AC in hot operating state per pole	8.9 W
power loss [W] for rated value of the current – without load current share typical	2 W
type of calculation of power loss current-dependent	quadratic
insulation voltage with degree of pollution 3 at AC rated value	690 V
surge voltage resistance rated value	6 kV
degree of protection NEMA rating	other
shock resistance according to IEC 60068-2-27	6 g / 11 ms
mechanical service life (operating cycles) of contactor typical	10 000 000
type of coordination	2
reference code according to IEC 81346-2:2019	Q
Substance Prohibitance (day/month/year)	03/01/2017
SVHC substance name	Lead CAS-No. 7439-92-1 Lead monoxide (lead oxide) CAS-No. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868-10-5 Melamine CAS-No. 108-78-1
Net Weight	2.152 kg

Ambient conditions

ambient temperature – during operation	-20 ... +60 °C
ambient temperature – during storage	-50 ... +80 °C
ambient temperature – during transport	-50 ... +80 °C
temperature compensation	-20 ... +60 °C
relative humidity during operation	10 ... 95 %

Main circuit

number of poles for main current circuit	3
design of the switching contact	electromechanical
adjustable current response value current of the current-dependent overload release	32 ... 40 A
operating voltage – rated value	690 V
operating voltage – at AC-3 rated value maximum	690 V
operating voltage – at AC-3e rated value maximum	690 V
operating frequency rated value	50 ... 60 Hz
operational current – at AC-3 at 400 V rated value	40 A
operational current – at AC-3e at 400 V rated value	40 A
at AC-3 – — at 400 V rated value	18 500 W
at AC-3e – — at 400 V rated value	18 500 W

Control circuit/ Control

type of voltage of the control supply voltage	AC/DC
control supply voltage at AC – at 50 Hz rated value	20 ... 33 V
control supply voltage at AC – at 60 Hz rated value	20 ... 33 V
control supply voltage at DC rated value	20 ... 33 V
apparent holding power of magnet coil at AC	2 V·A
at 50 Hz	2 V·A
at 60 Hz	2 V·A
inductive power factor with the holding power of the coil	1
holding power of magnet coil at DC	1 W

Auxiliary circuit

product extension auxiliary switch

Yes

Protective and monitoring functions

trip class	CLASS 10
design of the overload release	thermal (bimetallic)
response value current of instantaneous short-circuit trip unit	585 A

UL/CSA ratings

full-load current (FLA) for 3-phase AC motor – at 480 V rated value	40 A
full-load current (FLA) for 3-phase AC motor – at 600 V rated value	40 A

Short-circuit protection

product function short circuit protection	Yes
design of the short-circuit trip	magnetic
conditional short-circuit current (Iq) – at 400 V according to IEC 60947-4-1 rated value	100 000 A

Installation/ mounting/ dimensions

mounting position	vertical, horizontal
fastening method	screw and snap-on mounting to two 35 mm DIN rails
height	274 mm
width	55 mm
depth	150 mm
for grounded parts – — forwards	32 mm
for grounded parts – — backwards	0 mm
for grounded parts – — upwards	50 mm
for grounded parts – — at the side	10 mm
for grounded parts – — downwards	10 mm
for live parts – — forwards	32 mm
for live parts – — backwards	0 mm
for live parts – — upwards	50 mm
for live parts – — downwards	10 mm
for live parts – — at the side	10 mm

Connections/ Terminals

type of electrical connection – for main current circuit	screw-type terminals
type of electrical connection – for auxiliary and control circuit	screw-type terminals
