SIRIUS 3RA2 load feeders Parts
























Compare SIRIUS 3RA2 load feeders
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | manufacturer's article number — of the supplied contactor | manufacturer's article number — of the supplied circuit-breakers | Net Weight | adjustable current response value current of the current-dependent overload release | operational current — at AC-3 at 400 V rated value |
|---|---|---|---|---|---|
| 3RA2110-0KH15-1BB4 | 3RT2015-2BB41 | 3RV2011-0KA20 | 1.003 kg | 0.9 ... 1.25 A | 1.3 A |
| 3RA2110-0KH15-1AP0 | 3RT2015-2AP01 | 3RV2011-0KA20 | 0.932 kg | 0.9 ... 1.25 A | 1.3 A |
| 3RA2120-4CD27-0FB4 | 3RT2027-1FB40 | 3RV2021-4CA10 | 1.195 kg | 16 ... 22 A | 22 A |
| 3RA2120-4CD27-0BB4 | 3RT2027-1BB40 | 3RV2021-4CA10 | 1.226 kg | 16 ... 22 A | 22 A |
| 3RA2120-4CD27-0AP0 | 3RT2027-1AP00 | 3RV2021-4CA10 | 0.999 kg | 16 ... 22 A | 22 A |
| 3RA2120-4BH26-0BB4 | 3RT2026-2BB40 | 3RV2021-4BA20 | 1.411 kg | 13 ... 20 A | 20 A |
| 3RA2120-4BH26-0AP0 | 3RT2026-2AP00 | 3RV2021-4BA20 | 1.232 kg | 13 ... 20 A | 20 A |
| 3RA2120-4BE27-0BB4 | 3RT2027-2BB40 | 3RV2021-4BA20 | 1.074 kg | 13 ... 20 A | 20 A |
| 3RA2130-4XA37-0NB3 | 3RT2037-1NB30 | 3RV2031-4XA10 | 2.253 kg | 49 ... 59 A | 59 A |
| 3RA2130-4WA36-0AP0 | 3RT2036-1AP00 | 3RV2031-4WA10 | 2.107 kg | 42 ... 50 A | 50 A |
| 3RA2150-4XA37-0AP0 | 3RT2037-1AP00 | 3RV2032-4XA10 | 2.121 kg | 49 ... 59 A | 59 A |
| 3RA2120-4DH27-0AP0 | 3RT2027-2AP00 | 3RV2021-4DA20 | 1.247 kg | 18 ... 25 A | 25 A |
| 3RA2120-4DE27-0BB4 | 3RT2027-2BB40 | 3RV2021-4DA20 | 1.17 kg | 18 ... 25 A | 25 A |
| 3RA2120-4DE27-0AP0 | 3RT2027-2AP00 | 3RV2021-4DA20 | 0.895 kg | 18 ... 25 A | 25 A |
| 3RA2120-4DD27-0FB4 | 3RT2027-1FB40 | 3RV2021-4DA10 | 1.189 kg | 18 ... 25 A | 25 A |
| 3RA2120-4DD27-0BB4 | 3RT2027-1BB40 | 3RV2021-4DA10 | 1.224 kg | 18 ... 25 A | 25 A |

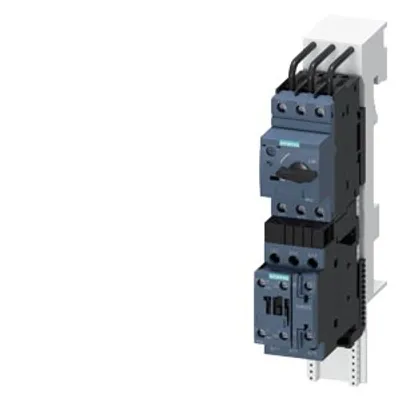

| 3RA2120-4DD27-0AP0 | 3RT2027-1AP00 | 3RV2021-4DA10 | 1.03 kg | 18 ... 25 A | 25 A |
| 3RA2210-0ED15-2AP0 | 3RT2015-1AP02 | 3RV2011-0EA10 | 1.549 kg | 0.28 ... 0.4 A | 0.4 A |
| 3RA2210-0EA15-2BB4 | 3RT2015-1BB42 | 3RV2011-0EA10 | 0.825 kg | 0.28 ... 0.4 A | 0.4 A |
| 3RA2210-0EA15-2AP0 | 3RT2015-1AP02 | 3RV2011-0EA10 | 0.685 kg | 0.28 ... 0.4 A | 0.4 A |
| 3RA2210-0DS15-2BB4 | 3RT2015-2BB42 | 3RV2011-0DA20 | 1.876 kg | 0.22 ... 0.32 A | 0.3 A |
| 3RA2210-0FD15-2AP0 | 3RT2015-1AP02 | 3RV2011-0FA10 | 1.577 kg | 0.35 ... 0.5 A | 0.5 A |
| 3RA2210-0FA15-2BB4 | 3RT2015-1BB42 | 3RV2011-0FA10 | 0.831 kg | 0.35 ... 0.5 A | 0.5 A |
| 3RA2210-0FA15-2AP0 | 3RT2015-1AP02 | 3RV2011-0FA10 | 0.708 kg | 0.35 ... 0.5 A | 0.5 A |
Common to all listed parts
| type of calculation of power loss current-dependent | quadratic |
| insulation voltage with degree of pollution 3 at AC rated value | 690 V |
| surge voltage resistance rated value | 6 kV |
| degree of protection NEMA rating | other |
| shock resistance according to IEC 60068-2-27 | 6 g / 11 ms |
| reference code according to IEC 81346-2:2019 | Q |
| ambient temperature — during operation | -20 ... +60 °C |
| ambient temperature — during storage | -50 ... +80 °C |
