Copper Parts

Siemens

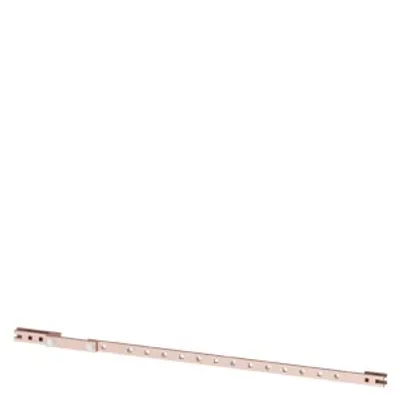

8LK4002-8AA51

Busbar 3NJ4 with measurement 30 x 10 mm

Siemens

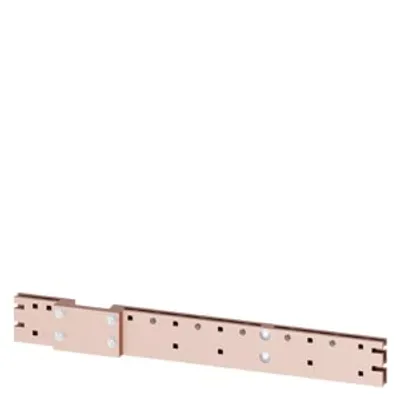

8LK4002-8AA50

Busbar 3NJ4 with measurement 2 x 100 x 10 mm

Siemens

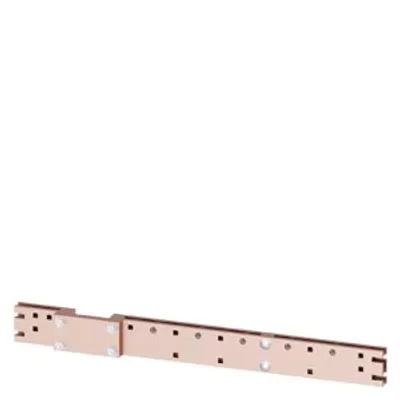

8LK4002-8AA48

Busbar 3NJ4 with measurement 2 x 80 x 10 mm

Siemens

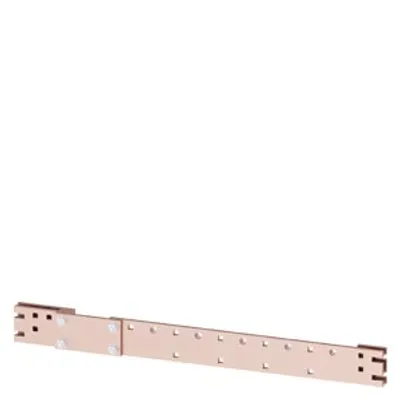

8LK4002-8AA47

Busbar 3NJ4 with measurement 80 x 10 mm

Siemens

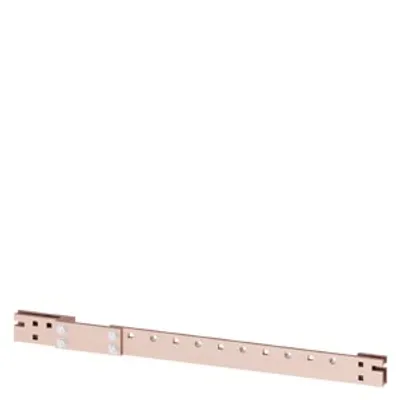

8LK4002-8AA46

Busbar 3NJ4 with measurement 60 x 10 mm

Siemens

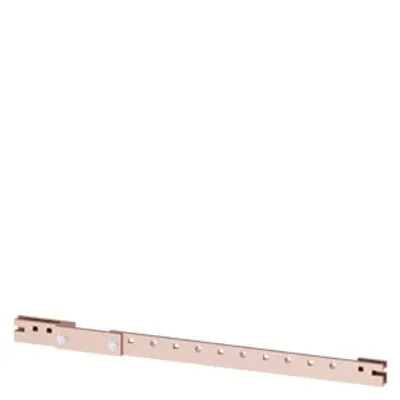

8LK4002-8AA45

Busbar 3NJ4 with measurement 50 x 10 mm

Siemens

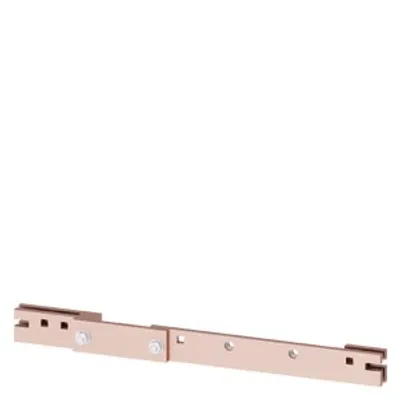

8LK4002-8AA44

Busbar 3NJ4 with measurement 50 x 10 mm

Siemens

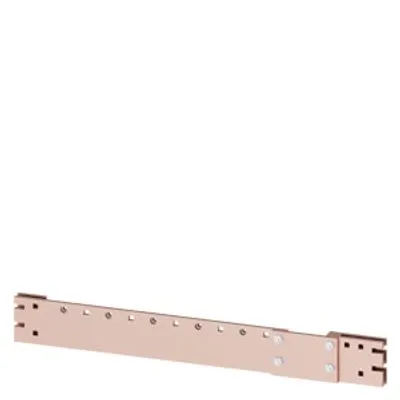

8LK4003-3AA32

Busbar 3NJ4 with measurement 100x10 mm, W: 850 mm

Siemens

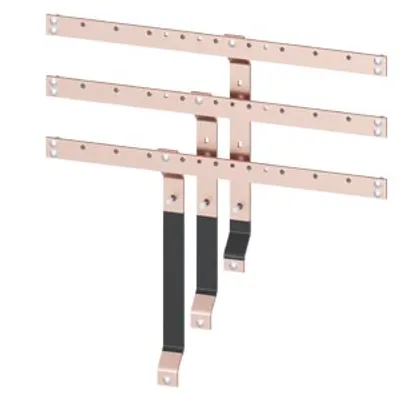

8LK4002-8AA78

Busbars second device level NH00 60x10 mm W: 1100 mm

Siemens

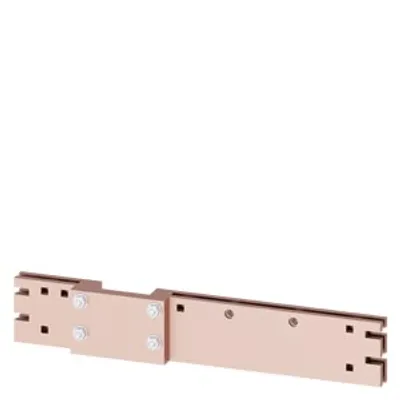

8LK4002-8AA43

Busbar 3NJ4 with measurement 2 x 100 x 10 mm

Siemens

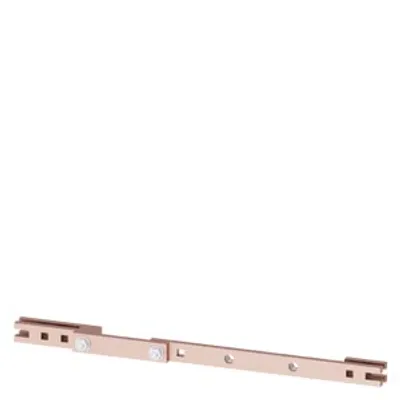

8LK4002-8AA37

Busbar 3NJ4 with measurement 30 x 10 mm

Siemens

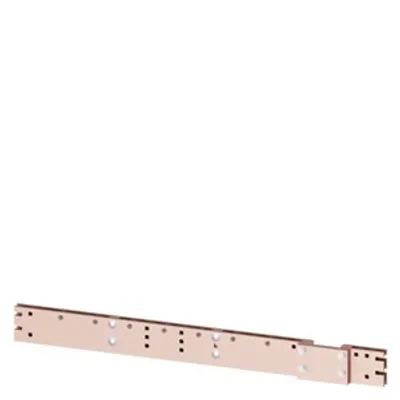

8LK4002-8AA36

Busbar 3NJ4 with measurement 2 x 100 x 10 mm

Siemens

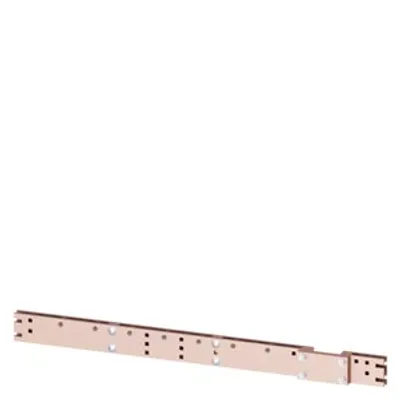

8LK4002-8AA35

Busbar 3NJ4 with measurement 2 x 80 x 10 mm

Siemens

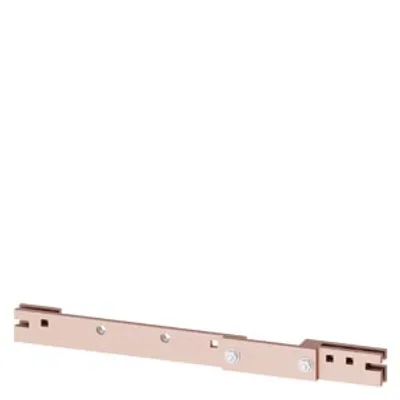

8LK4002-8AA18

Busbar 3NJ4 with measurement 50 x 10 mm

Siemens

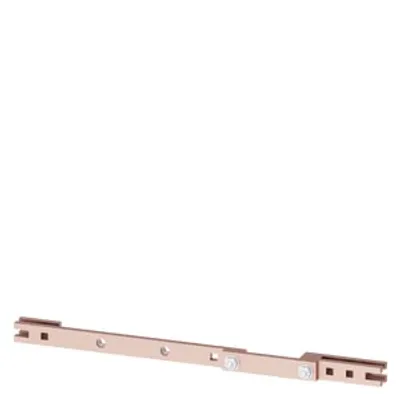

8LK4002-8AA17

Busbar 3NJ4 with measurement 30 x 10 mm

Siemens

Siemens

Siemens

Siemens

Siemens

Siemens

Busbar 3NJ4 with measurement 80 x 10 mm

Siemens

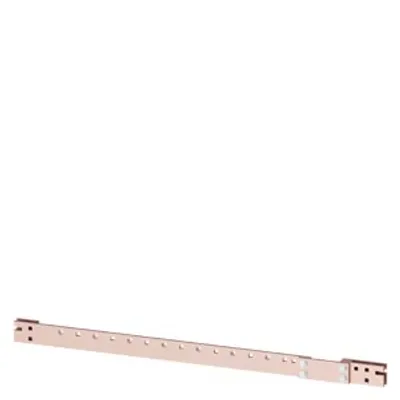

8LK4002-8AA33

Busbar 3NJ4 with measurement 60 x 10 mm

Siemens

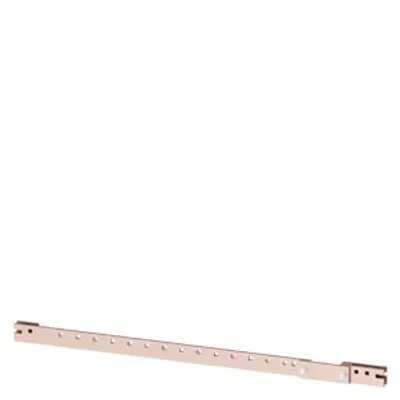

8LK4002-8AA32

Busbar 3NJ4 with measurement 50 x 10 mm

Siemens

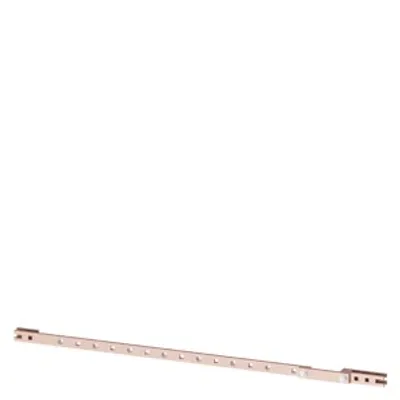

8LK4002-8AA31

Busbar 3NJ4 with measurement 30 x 10 mm

Compare Copper

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	short-circuit current rating	operational current rated value	height	width	Net Weight
8LK4002-8AA51	35 kA	940 A	30 mm	1 100 mm	3.431 kg
8LK4002-8AA50	75 kA	3 000 A	100 mm	850 mm	16.034 kg
8LK4002-8AA48	65 kA	2 610 A	80 mm	850 mm	12.894 kg
8LK4002-8AA47	65 kA	1 810 A	80 mm	850 mm	7.61 kg
8LK4002-8AA46	50 kA	1 460 A	60 mm	850 mm	5.752 kg
8LK4002-8AA45	40 kA	1 290 A	50 mm	850 mm	4.751 kg
8LK4002-8AA44	40 kA	1 290 A	50 mm	600 mm	3.694 kg
8LK4003-3AA32	65 kA	1 980 A	100 mm	100 mm	10.732 kg
8LK4002-8AA78	—	740 A	1 080 mm	1 025 mm	33.369 kg
8LK4002-8AA43	75 kA	3 000 A	100 mm	600 mm	11.487 kg
8LK4002-8AA37	35 kA	940 A	30 mm	600 mm	2.186 kg
8LK4002-8AA36	75 kA	3 000 A	100 mm	1 100 mm	20.672 kg
8LK4002-8AA35	65 kA	2 610 A	80 mm	1 100 mm	16.822 kg
8LK4002-8AA18	40 kA	1 290 A	50 mm	600 mm	3.694 kg
8LK4002-8AA17	35 kA	940 A	30 mm	600 mm	2.186 kg

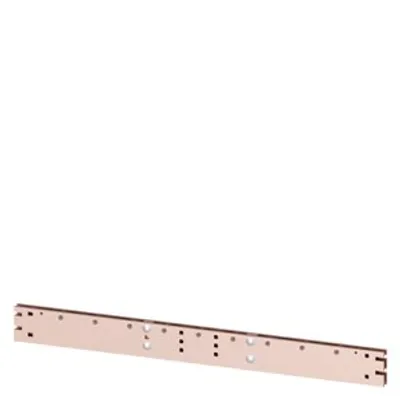

8LK4002-8AA16	75 kA	3 000 A	100 mm	1 100 mm	19.102 kg

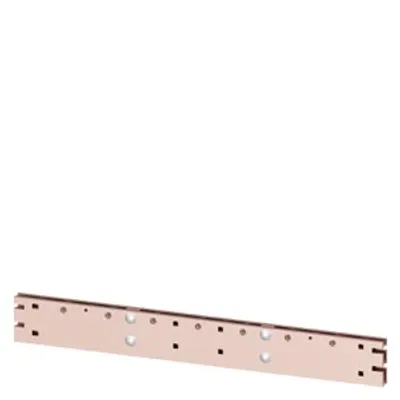

8LK4002-8AA15	75 kA	3 000 A	100 mm	850 mm	14.754 kg

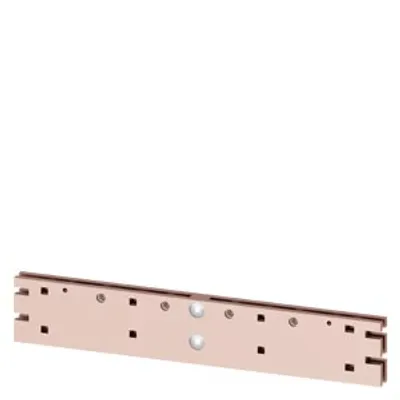

8LK4002-8AA14	75 kA	3 000 A	100 mm	600 mm	10.067 kg

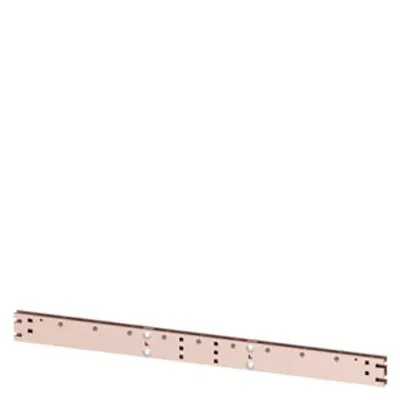

8LK4002-8AA13	65 kA	2 610 A	80 mm	1 100 mm	15.262 kg

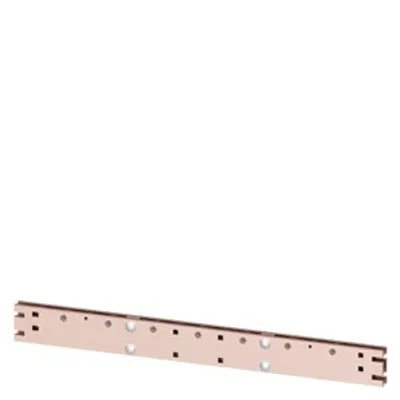

8LK4002-8AA12	65 kA	2 610 A	80 mm	850 mm	11.814 kg

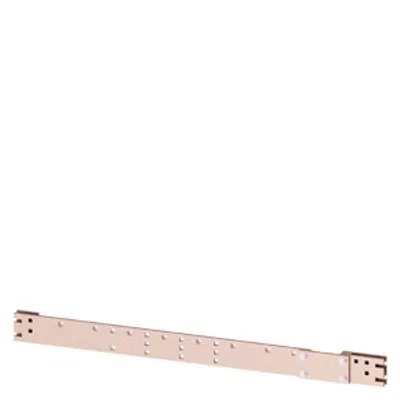

8LK4002-8AA34	65 kA	1 810 A	80 mm	1 100 mm	9.348 kg
8LK4002-8AA33	50 kA	1 460 A	60 mm	1 100 mm	7.04 kg
8LK4002-8AA32	40 kA	1 290 A	50 mm	1 100 mm	5.829 kg
8LK4002-8AA31	35 kA	940 A	30 mm	1 100 mm	3.431 kg
