Siemens 8LK4002-8AA15

Copper

MPN: 8LK4002-8AA15
Category: Copper

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 8LK4002-8AA15?

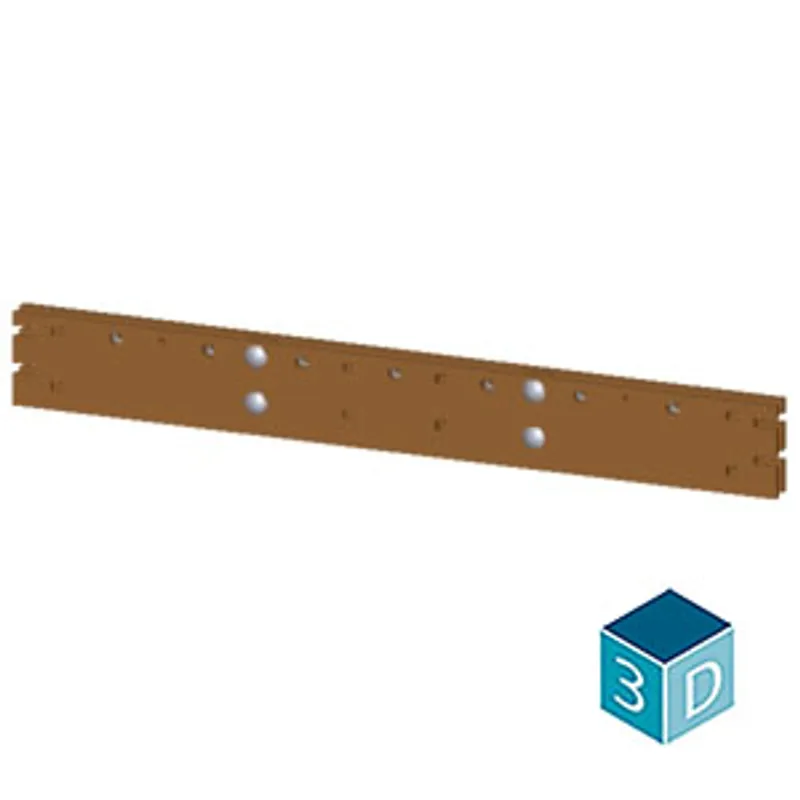

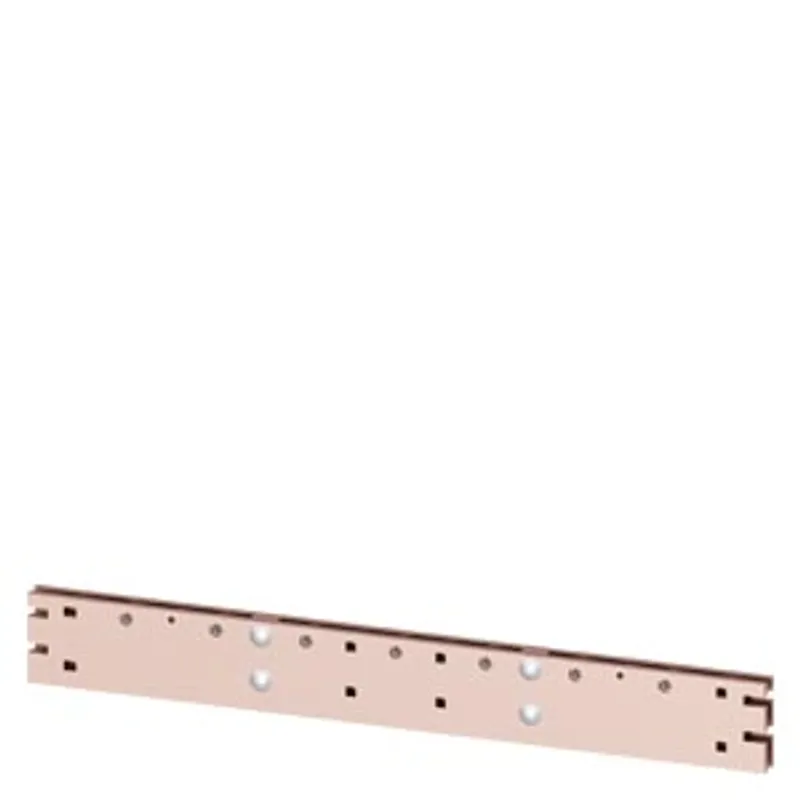

Busbar 3NJ4 2 x 100 x 10 mm, W: 850 mm

Specifications

Model

product brand name	ALPHA 3200 Eco
design of the product	for 3NJ4 NH1-3 in-line switch disconnectors
type of busbar profile	bare

General technical data

number of poles	1
short-circuit current rating	75 kA
position of main busbar	Rear

Main circuit

operational current rated value

3 000 A

Mechanical Design

height	100 mm
width	850 mm
width of the busbar	100 mm
depth	30 mm
installation width	850 mm
mounting height	100 mm
installation location	main busbar
thickness of the busbar	10 mm
busbar center-to-center spacing	185 mm
Net Weight	14.754 kg

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet 8LK4002-8AA15PDF
