Copper Parts
Compare Copper
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | short-circuit current rating | operational current rated value | height | width of the busbar | Net Weight |
|---|---|---|---|---|---|

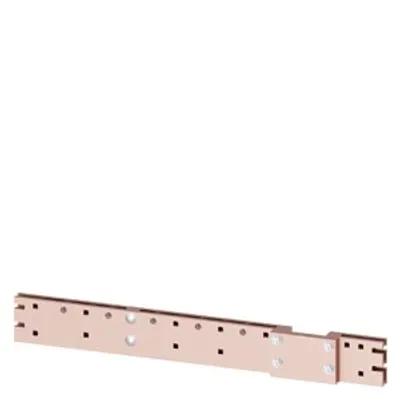

| 8LK4002-8AA30 | 75 kA | 3 000 A | 100 mm | 100 mm | 16.034 kg |

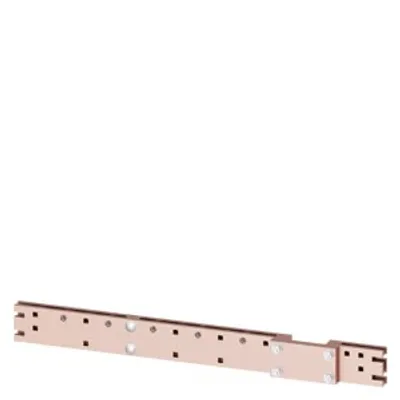

| 8LK4002-8AA28 | 65 kA | 2 610 A | 80 mm | 80 mm | 12.894 kg |

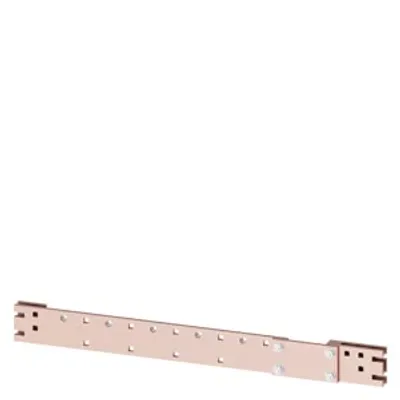

| 8LK4002-8AA27 | 65 kA | 1 810 A | 80 mm | 80 mm | 7.61 kg |
Common to all listed parts
| design of the product | for 3NJ4 NH1-3 in-line switch disconnectors with measurement |
| type of busbar profile | bare |
| number of poles | 1 |
| position of main busbar | Rear |
| width | 850 mm |
| installation width | 850 mm |
| installation location | main busbar |
| thickness of the busbar | 10 mm |
