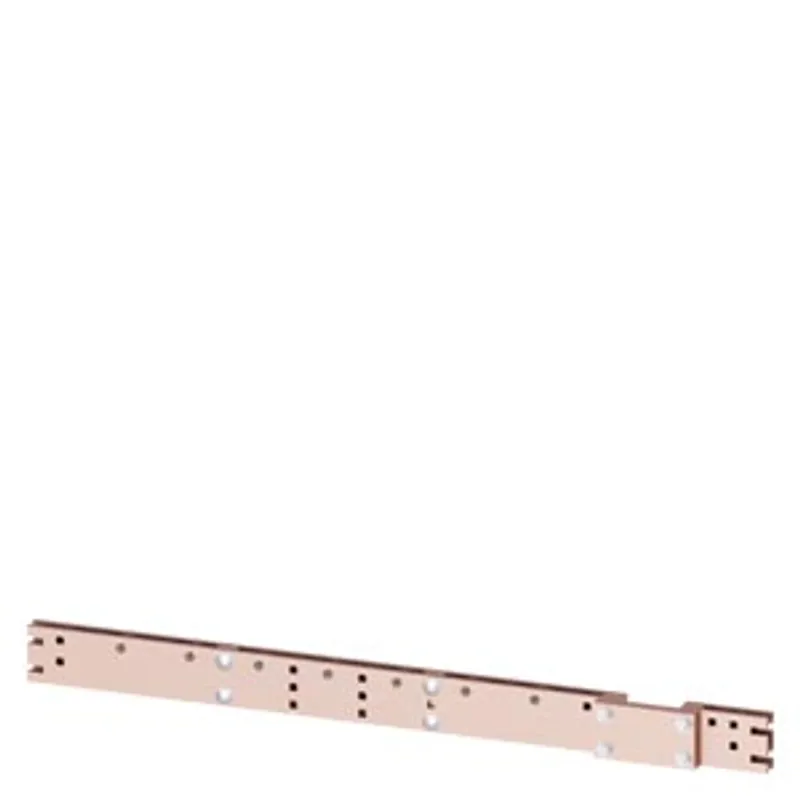

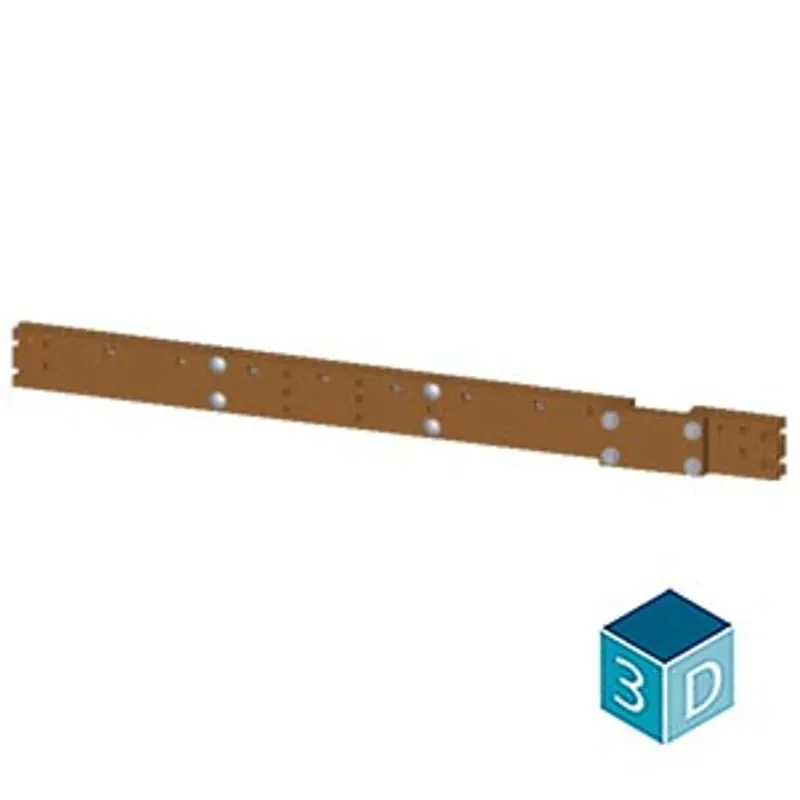

Siemens 8LK4002-8AA35

Busbar 3NJ4 with measurement 2 x 80 x 10 mm, W: 1100 mm installation: right

MPN: 8LK4002-8AA35
Category: Copper

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 8LK4002-8AA35?

Busbar 3NJ4 with measurement 2 x 80 x 10 mm, W: 1100 mm installation: right

Specifications

Model

product brand name	ALPHA 3200 Eco
design of the product	for 3NJ4 NH1-3 in-line switch disconnectors with measurement
type of busbar profile	bare

General technical data

number of poles	1
short-circuit current rating	65 kA
position of main busbar	Rear

Main circuit

operational current rated value

2 610 A

Mechanical Design

height	80 mm
width	1 100 mm
width of the busbar	80 mm
depth	30 mm
installation width	1 100 mm
mounting height	80 mm
installation location	main busbar
thickness of the busbar	10 mm
busbar center-to-center spacing	185 mm
Net Weight	16.822 kg

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet 8LK4002-8AA35PDF

8LK4002-8AA35: frequently asked questions

When can 8LK4002-8AA35 be shipped?

8LK4002-8AA35 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 8LK4002-8AA35 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 8LK4002-8AA35 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8LK4002-8AA35, subject to availability and destination.
