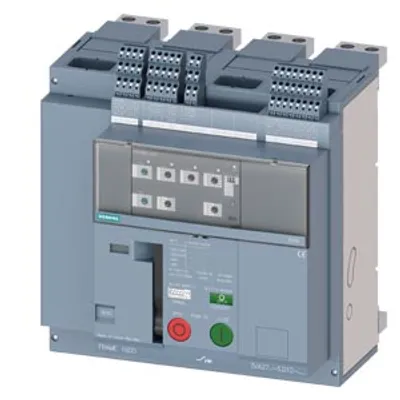

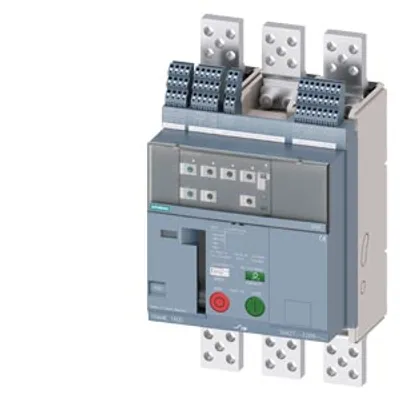

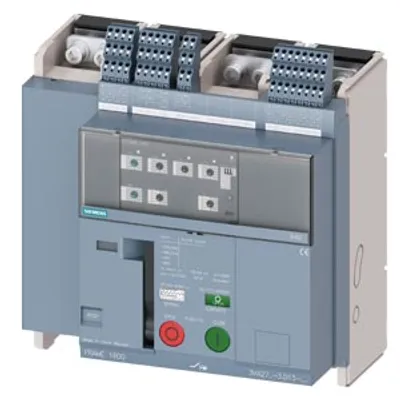

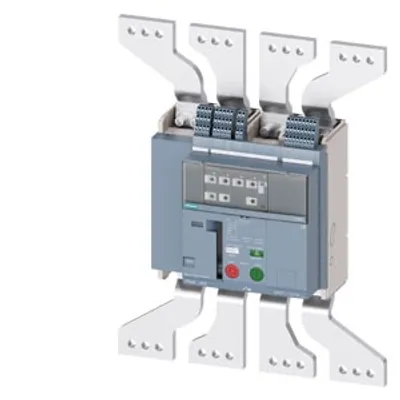

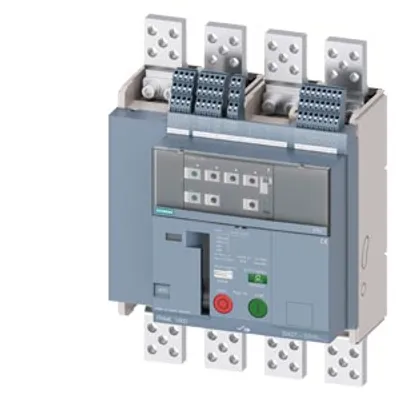

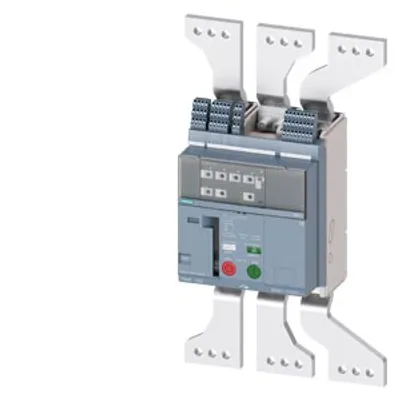

3VA Molded Case Circuit Breakers up to 1600 A, IEC Parts
Compare 3VA Molded Case Circuit Breakers up to 1600 A, IEC
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Net Weight | operational current — at 45 °C | operational current — at 50 °C | operational current — at 55 °C | adjustable setting current (InN) / for N-tripping — maximum |
|---|---|---|---|---|---|
| 3VA2040-7KQ42-0AA0 | 2.723 kg | 40 A | 40 A | 40 A | 64 A |
| 3VA2040-7KQ36-0AA0 | 2.5 kg | 40 A | 40 A | 40 A | 64 A |
| 3VA2580-5KQ32-0AA0 | 13.588 kg | 800 A | 800 A | 800 A | 1 280 A |
| 3VA2612-6KQ32-0AA0 | 23.12 kg | 1 250 A | 1 250 A | 1 187 A | 2 000 A |
| 3VA2612-6JP42-0AA0 | 28.24 kg | 1 250 A | 1 250 A | 1 187 A | 1 250 A |

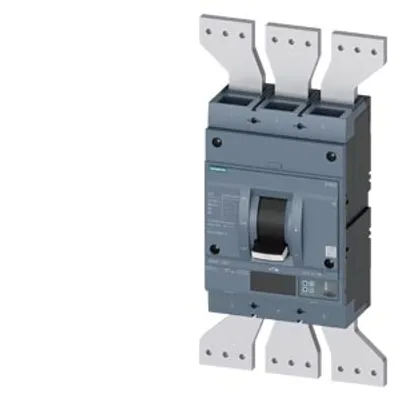

| 3VA2612-6JP32-0AA0 | 22.8 kg | 1 250 A | 1 250 A | 1 187 A | 2 000 A |

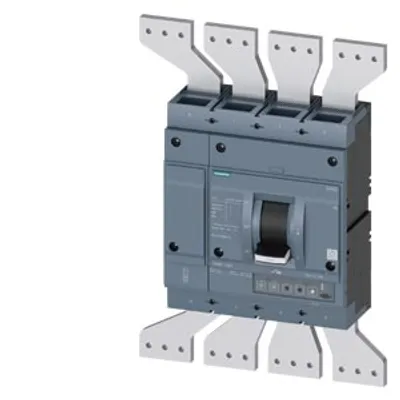

| 3VA2612-5HM42-0AA0 | 28.24 kg | 1 250 A | 1 250 A | 1 187 A | 1 250 A |

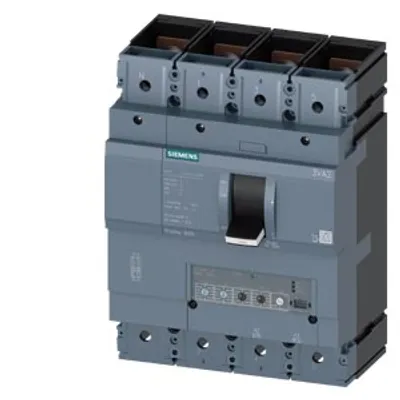

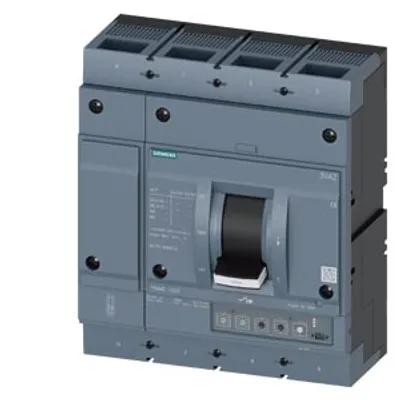

| 3VA2563-5HN32-0AA0 | 13.085 kg | 630 A | 630 A | 630 A | 0 A |
| 3VA2563-5HM42-0AA0 | 15.42 kg | 630 A | 630 A | 630 A | 630 A |
| 3VA2510-7KQ32-0AA0 | 14.34 kg | 1 000 A | 1 000 A | 1 000 A | 1 600 A |

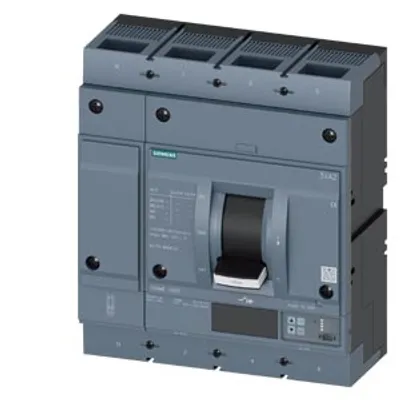

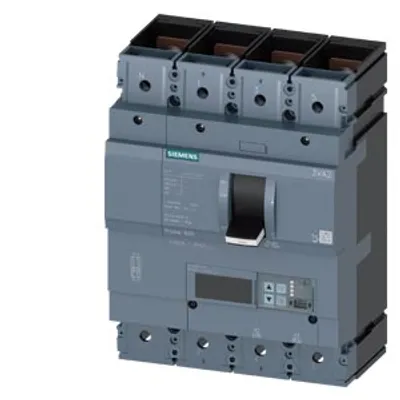

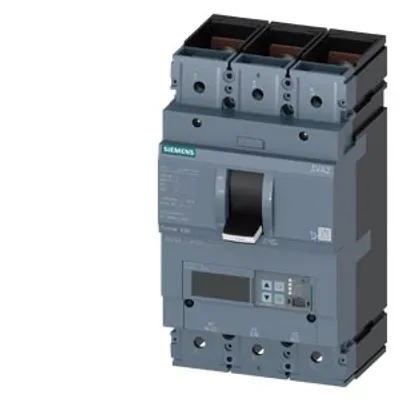

| 3VA2510-7JP42-0AA0 | 16.78 kg | 1 000 A | 1 000 A | 1 000 A | 1 000 A |
| 3VA2463-6JP42-0AA0 | 6.694 kg | 600 A | 570 A | 540 A | 630 A |
| 3VA2463-5HL42-0AA0 | 6.624 kg | 612 A | 593 A | 575 A | 630 A |
| 3VA2463-6HN32-0AA0 | 5.085 kg | 612 A | 593 A | 575 A | 0 A |
| 3VA2463-6KQ32-0AA0 | 5.258 kg | 600 A | 570 A | 540 A | 1 008 A |
| 3VA2463-7JP32-0AA0 | 4.5 kg | 600 A | 570 A | 540 A | 1 008 A |
| 3VA2463-5HN42-0AA0 | 6.624 kg | 612 A | 593 A | 575 A | 630 A |
Common to all listed parts
| product designation | Molded case circuit breaker |
| design of the product | Line protection |
| insulation voltage / rated value | 800 V |
| operating voltage / at AC / rated value | 690 V |
| product feature / for L-tripping / can be switched on/off | No |
| adjustable response value delay time (tr) / for L-tripping / with I2t characteristic — minimum | 0.5 s |
| product component — undervoltage release | No |
| product component — voltage trigger | No |
