3VA Molded Case Circuit Breakers up to 1600 A, IEC Parts
Compare 3VA Molded Case Circuit Breakers up to 1600 A, IEC
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | design of the overcurrent release | Net Weight | operational current — at 55 °C | operational current — at 60 °C | operational current — at 65 °C |
|---|---|---|---|---|---|
| 3VA2325-5HL42-0AA0 | ETU320 | 6.021 kg | 250 A | 250 A | 250 A |
| 3VA2440-6KP32-0AA0 | ETU850 | 4.804 kg | 400 A | 400 A | 400 A |

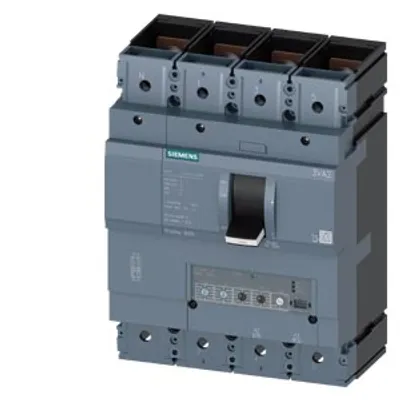

| 3VA2440-6HN42-0AA0 | ETU350 | 6.115 kg | 400 A | 400 A | 400 A |

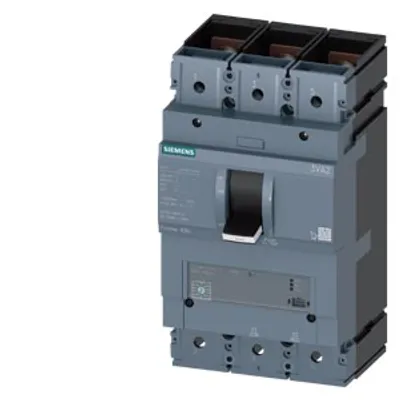

| 3VA2463-6HK32-0AA0 | ETU340 | 5.2 kg | 575 A | 557 A | 538 A |
| 3VA2340-6KP32-0AA0 | ETU850 | 4.745 kg | 375 A | 350 A | 325 A |
| 3VA2340-6KP42-0AA0 | ETU850 | 6.052 kg | 375 A | 350 A | 325 A |

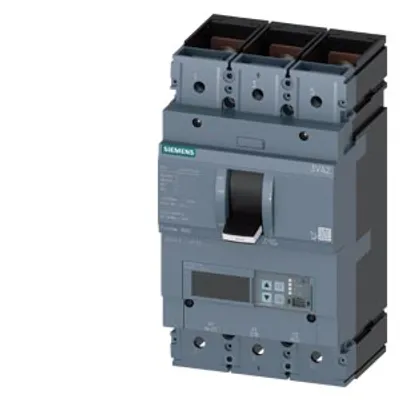

| 3VA2340-6JP32-0AA0 | ETU550 | 4.677 kg | 375 A | 350 A | 325 A |
| 3VA2340-6HN42-0AA0 | ETU350 | 6.024 kg | 385 A | 370 A | 355 A |
| 3VA2340-6HN32-0AA0 | ETU350 | 4.599 kg | 385 A | 370 A | 355 A |

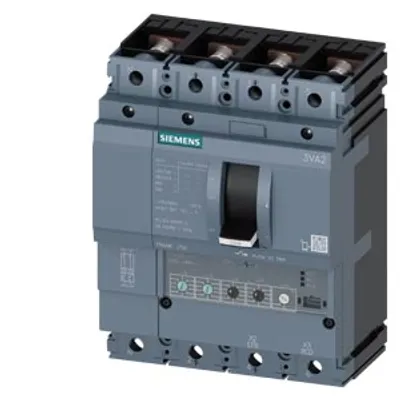

| 3VA2225-8HM42-0AA0 | ETU330 | 3.2 kg | 241 A | 232 A | 222 A |

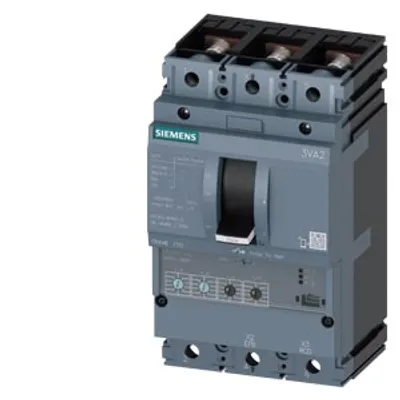

| 3VA2225-8HM32-0AA0 | ETU330 | 2.233 kg | 241 A | 232 A | 222 A |
| 3VA2225-8HL42-0AA0 | ETU320 | 3.2 kg | 241 A | 232 A | 222 A |
| 3VA2225-8HL32-0AA0 | ETU320 | 2.175 kg | 241 A | 232 A | 222 A |

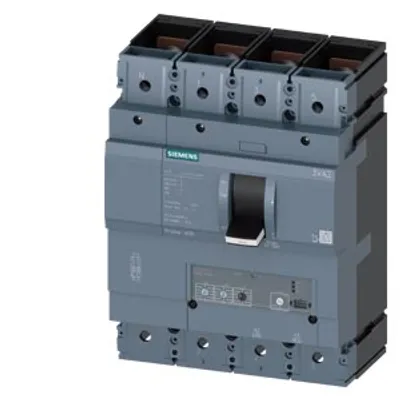

| 3VA2325-6HL42-0AA0 | ETU320 | 6.087 kg | 250 A | 250 A | 250 A |
| 3VA2340-7KP42-0AA0 | ETU850 | 5.7 kg | 375 A | 350 A | 325 A |
| 3VA2225-6KQ32-0AA0 | ETU860 | 2.5 kg | 238 A | 225 A | 213 A |
| 3VA2325-8KQ32-0AA0 | ETU860 | 4 300 g | 250 A | 250 A | 250 A |
| 3VA2340-0HN32-0AA0 | ETU350 | 5.116 kg | 385 A | 370 A | 355 A |
| 3VA2325-7HK42-0AA0 | ETU340 | 5.7 kg | 250 A | 250 A | 250 A |
| 3VA2125-5HN32-0AA0 | ETU350 | 2.164 kg | 25 A | 25 A | 25 A |

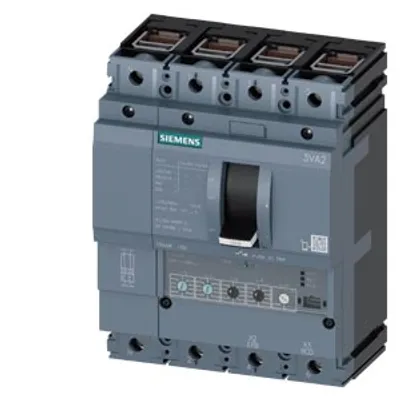

| 3VA2125-5HM46-0AA0 | ETU330 | 3.2 kg | 25 A | 25 A | 25 A |
| 3VA2125-6JQ36-0AA0 | ETU560 | 2.5 kg | 25 A | 25 A | 25 A |
| 3VA1181-5MG32-0AA0 | TM110M | 0.9 kg | 1 A | 1 A | 1 A |

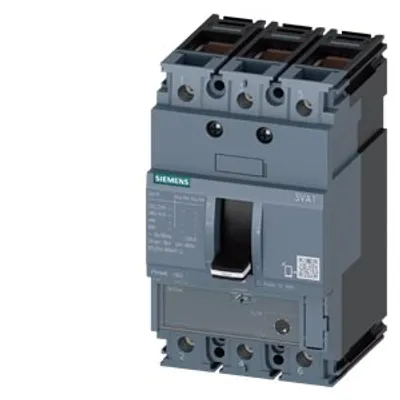

| 3VA1180-6MH36-0AA0 | TM120M | 1.008 kg | 78 A | 77 A | 75 A |
Common to all listed parts
| product designation | Molded case circuit breaker |
| insulation voltage / rated value | 800 V |
| operating voltage / at AC / rated value | 690 V |
| product component — undervoltage release | No |
| product component — voltage trigger | No |
| product component — trip indicator | No |
| arrangement of electrical connectors / for main current circuit | Front terminal |
| number of CO contacts / for auxiliary contacts | 0 |
