3VA Molded Case Circuit Breakers up to 1600 A, IEC Parts
Compare 3VA Molded Case Circuit Breakers up to 1600 A, IEC
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | design of the overcurrent release | Net Weight | operational current — at 55 °C | operational current — at 60 °C | adjustable response value setting current (Ii) / for I-tripping — minimum |
|---|---|---|---|---|---|
| 3VA2463-5HL32-0AA0 | ETU320 | 5.092 kg | 575 A | 557 A | 945 A |

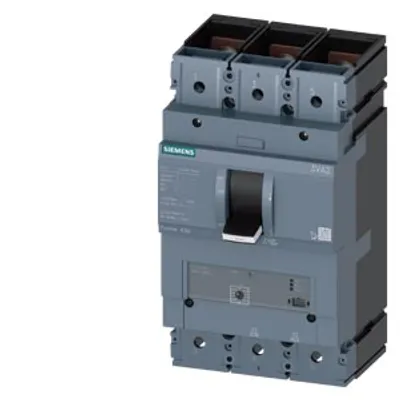

| 3VA2440-0MS32-0AA0 | ETU310M | 5.135 kg | 400 A | 400 A | 1 200 A |
| 3VA2440-0MQ32-0AA0 | ETU860M | 5.05 kg | 400 A | 400 A | 1 200 A |
| 3VA2440-0MN32-0AA0 | ETU350M | 5.163 kg | 400 A | 400 A | 5 200 A |
| 3VA2450-5KQ42-0AA0 | ETU860 | 6.203 kg | 477 A | 455 A | 750 A |
| 3VA2440-6HN32-0AA0 | ETU350 | 4.96 kg | 400 A | 400 A | 4 800 A |
| 3VA2440-6HL42-0AA0 | ETU320 | 6.109 kg | 400 A | 400 A | 600 A |

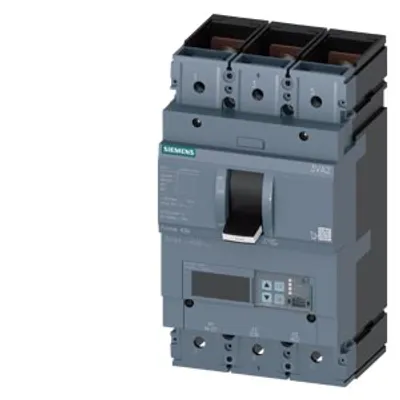

| 3VA2450-5JQ32-0AA0 | ETU560 | 4.965 kg | 477 A | 455 A | 750 A |
| 3VA2225-7JP32-0AA0 | ETU550 | 2.5 kg | 238 A | 225 A | 375 A |

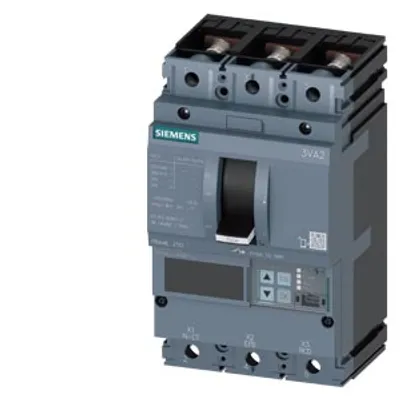

| 3VA2225-8JQ32-0AA0 | ETU560 | 2.234 kg | 238 A | 225 A | 375 A |
| 3VA2225-8JP42-0AA0 | ETU550 | 3.2 kg | 238 A | 225 A | 375 A |
| 3VA2225-8JP32-0AA0 | ETU550 | 2.5 kg | 238 A | 225 A | 375 A |

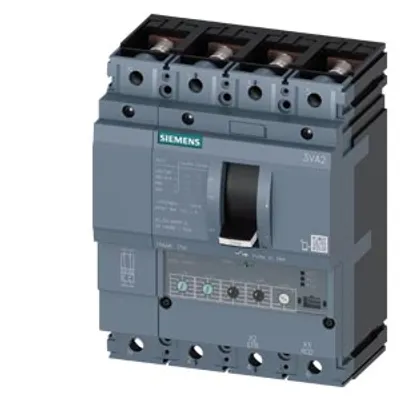

| 3VA2225-8HN42-0AA0 | ETU350 | 3.2 kg | 241 A | 232 A | 2 500 A |

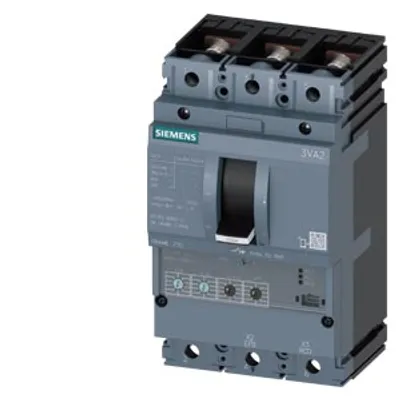

| 3VA2225-8HN32-0AA0 | ETU350 | 2.188 kg | 241 A | 232 A | 2 500 A |
| 3VA2225-6JP32-0AA0 | ETU550 | 2.238 kg | 238 A | 225 A | 375 A |
| 3VA2325-8JQ42-0AA0 | ETU560 | 4 800 g | 250 A | 250 A | 375 A |

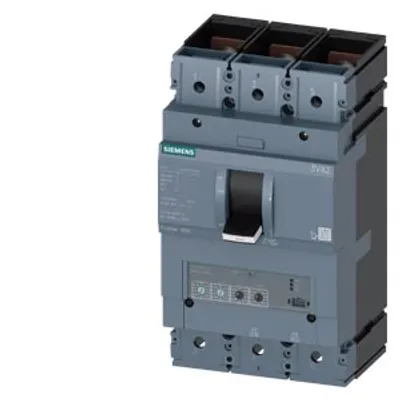

| 3VA2325-8HN32-0AA0 | ETU350 | 5.16 kg | 250 A | 250 A | 3 000 A |

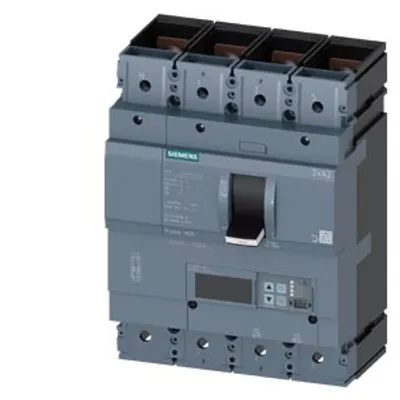

| 3VA2340-0KQ42-0AA0 | ETU860 | 6.35 kg | 375 A | 350 A | 600 A |
| 3VA2340-0HM32-0AA0 | ETU330 | 5.123 kg | 385 A | 370 A | 600 A |
| 3VA2325-7HL42-0AA0 | ETU320 | 5.7 kg | 250 A | 250 A | 375 A |

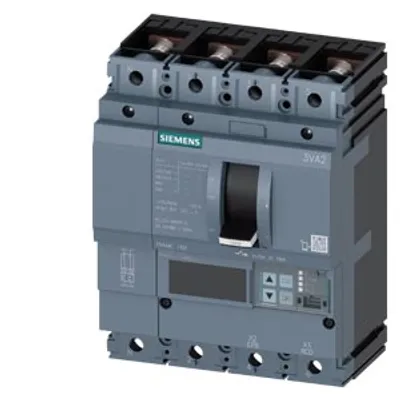

| 3VA2125-6JQ42-0AA0 | ETU560 | 2.756 kg | 25 A | 25 A | 37 A |
| 3VA2125-6HN42-0AA0 | ETU350 | 2.782 kg | 25 A | 25 A | 300 A |
| 3VA1180-6MH32-0AA0 | TM120M | 930 g | 78 A | 77 A | 560 A |

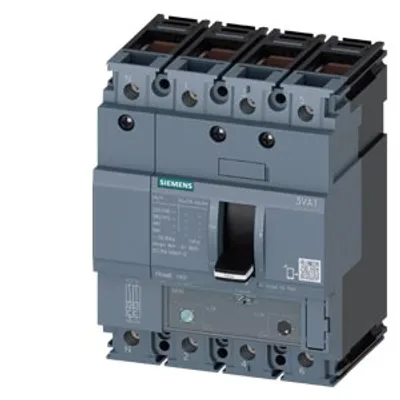

| 3VA1180-6GF46-0AA0 | TM240 | 1.273 kg | 78 A | 77 A | 400 A |
Common to all listed parts
| product designation | Molded case circuit breaker |
| insulation voltage / rated value | 800 V |
| operating voltage / at AC / rated value | 690 V |
| product component — undervoltage release | No |
| product component — voltage trigger | No |
| product component — trip indicator | No |
| arrangement of electrical connectors / for main current circuit | Front terminal |
| number of CO contacts / for auxiliary contacts | 0 |
