3VA Molded Case Circuit Breakers up to 1600 A, IEC Parts
Compare 3VA Molded Case Circuit Breakers up to 1600 A, IEC
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | design of the overcurrent release | power loss [W] / maximum | Net Weight | operational current — at 55 °C | operational current — at 60 °C |
|---|---|---|---|---|---|

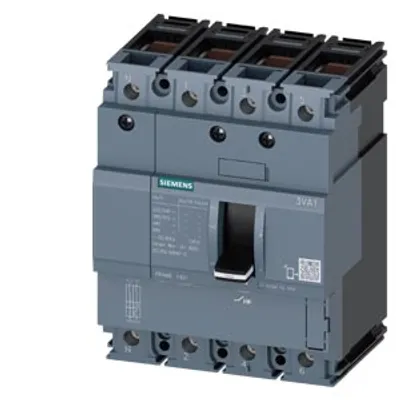

| 3VA1116-4ED46-0AA0 | TM210 | 38 W | 1.31 kg | 158 A | 155 A |
| 3VA1120-4GF42-0AA0 | TM240 | 12 W | 1.25 kg | — | — |
| 3VA1120-4GE46-0AA0 | TM220 | 12 W | 1.17 kg | 20 A | 19 A |

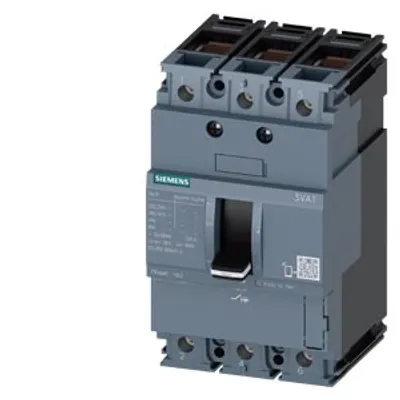

| 3VA1125-3ED36-0AA0 | TM210 | 8.5 W | 977 g | 24 A | 24 A |
| 3VA2125-7HN36-0AA0 | ETU350 | 0.6 W | 2.29 kg | 25 A | 25 A |
| 3VA2110-7KQ36-0AA0 | ETU860 | 10 W | 2.5 kg | 100 A | 100 A |
| 3VA2110-7JQ36-0AA0 | ETU560 | 10 W | 2.5 kg | 100 A | 100 A |
| 3VA2325-7KP42-0AA0 | ETU850 | 37.5 W | 5.7 kg | 250 A | 250 A |

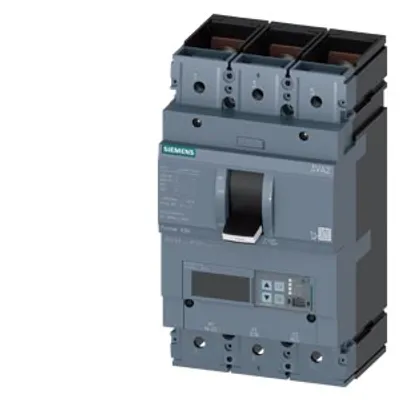

| 3VA2450-6JP32-0AA0 | ETU550 | 99 W | 4.945 kg | 477 A | 455 A |

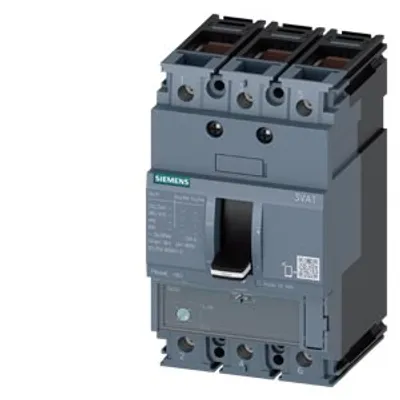

| 3VA1110-4EE36-0AA0 | TM220 | 25 W | 1.028 kg | 98 A | 96 A |
| 3VA1325-7MH32-0AA0 | TM120M | 30 W | 5.214 kg | 245 A | 239 A |
Common to all listed parts
| product designation | Molded case circuit breaker |
| insulation voltage / rated value | 800 V |
| operating voltage / at AC / rated value | 690 V |
| arrangement of electrical connectors / for main current circuit | Front terminal |
| number of CO contacts / for auxiliary contacts | 0 |
| product extension / optional / motor drive | Yes |
| protection class IP / on the front | IP40 |
| reference code / according to IEC 81346-2 | Q |
