3VA Molded Case Circuit Breakers up to 1600 A, IEC Parts
Compare 3VA Molded Case Circuit Breakers up to 1600 A, IEC
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | power loss [W] / maximum | Net Weight | operational current — at 55 °C | adjustable response value setting current (Ir) / of the L-trip / with I2t characteristic — minimum | adjustable response value setting current (Ii) / for I-tripping — minimum |
|---|---|---|---|---|---|

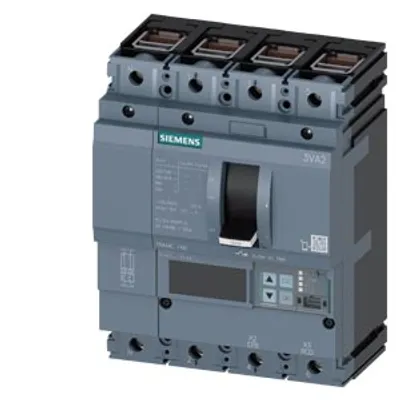

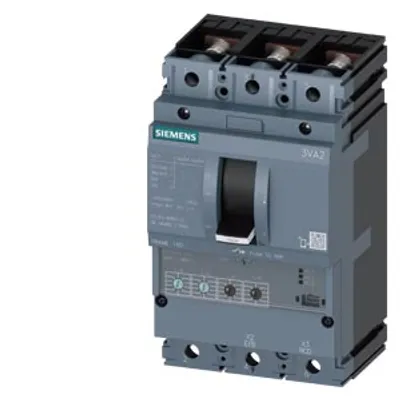

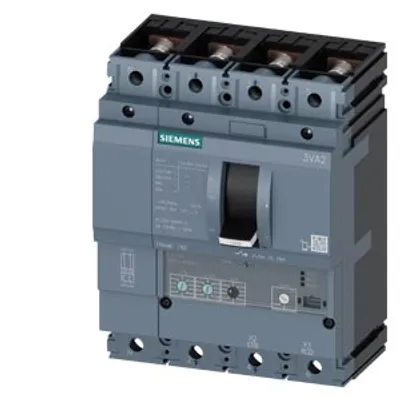

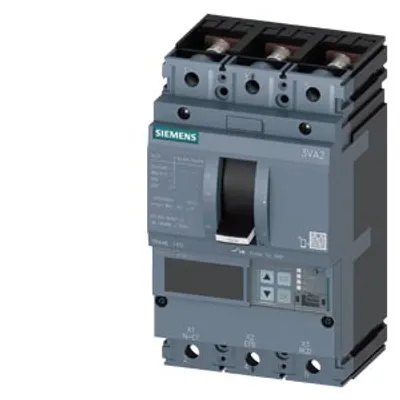

| 3VA2116-8KP46-0AA0 | 19.7 W | 3.2 kg | 160 A | 64 A | 240 A |
| 3VA2116-8HN32-0AA0 | 19.7 W | 2.231 kg | 160 A | 63 A | 1 600 A |
| 3VA2116-8HM46-0AA0 | 19.7 W | 3.2 kg | 160 A | 63 A | 240 A |
| 3VA2116-8HM32-0AA0 | 19.7 W | 2.195 kg | 160 A | 63 A | 240 A |
| 3VA2116-8HL46-0AA0 | 19.7 W | 3.2 kg | 160 A | 63 A | 240 A |
| 3VA2116-8HL42-0AA0 | 19.7 W | 3.2 kg | 160 A | 63 A | 240 A |
| 3VA2163-6JP32-0AA0 | 4 W | 2.176 kg | 63 A | 25 A | 94 A |

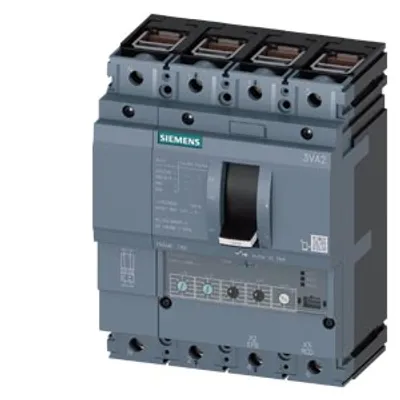

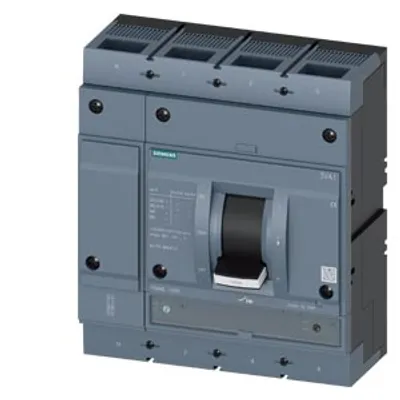

| 3VA2163-6HN46-0AA0 | 4 W | 2.981 kg | 63 A | 25 A | 756 A |
| 3VA1580-7GF42-0AA0 | 240 W | 12.921 kg | 780 A | 560 A | 4 000 A |

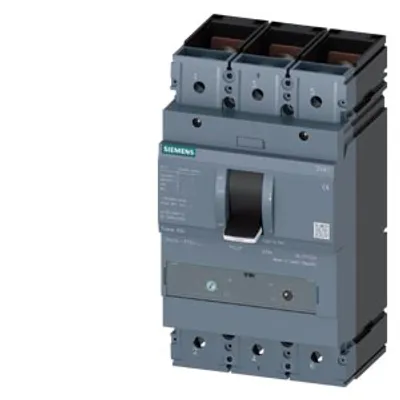

| 3VA1463-7EF32-0AA0 | 192.9 W | 4.904 kg | 618 A | 441 A | 2 520 A |
| 3VA1440-5MH32-0AA0 | 76.8 W | 4.911 kg | 392 A | — | 2 400 A |

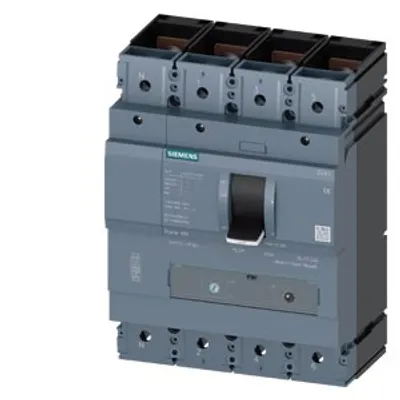

| 3VA1340-7GF42-0AA0 | 92.1 W | 6.325 kg | 392 A | 280 A | 2 000 A |

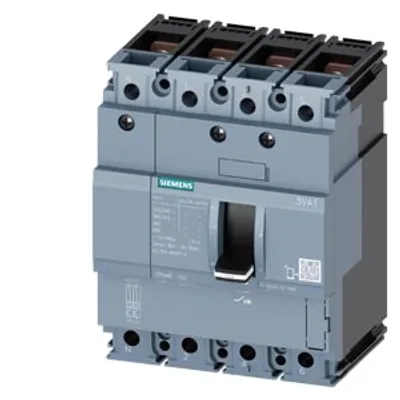

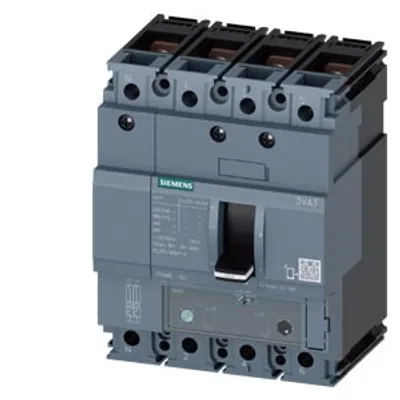

| 3VA1150-6GD42-0AA0 | 14.6 W | 1.212 kg | 49 A | 50 A | 500 A |
| 3VA1150-6EF46-0AA0 | 14.6 W | 1.296 kg | 49 A | 35 A | 250 A |
| 3VA1150-6EF36-0AA0 | 14.6 W | 1.022 kg | 49 A | 35 A | 250 A |
| 3VA1196-6GF42-0AA0 | 10.6 W | 1.197 kg | 16 A | 11 A | 160 A |

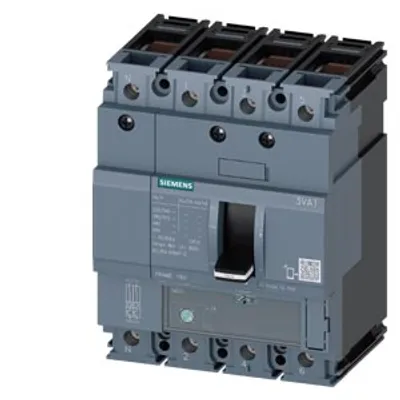

| 3VA1196-6GE46-0AA0 | 10.6 W | 1.314 kg | 16 A | 11 A | 320 A |

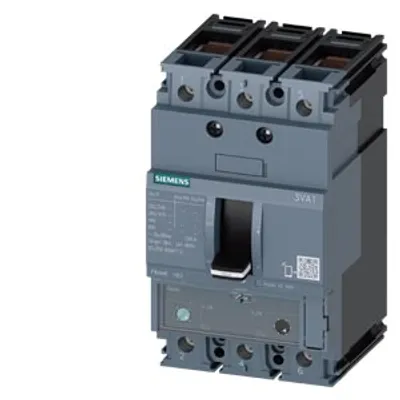

| 3VA1125-5EF36-0AA0 | 8.5 W | 995 g | 24 A | 17 A | 160 A |

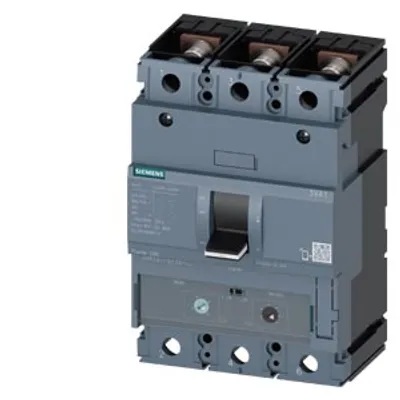

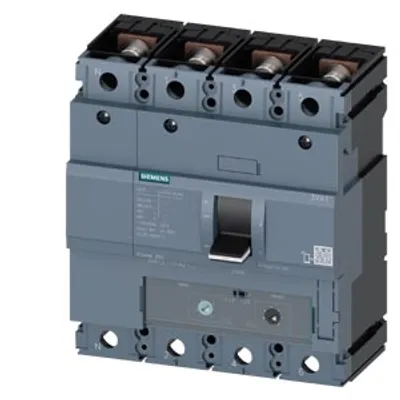

| 3VA1220-4EF32-0AA0 | 42 W | 1.575 kg | 194 A | 140 A | 1 000 A |
| 3VA1216-6GF42-0AA0 | 33 W | 2.1 kg | 156 A | 112 A | 800 A |
| 3VA1163-5MH36-0AA0 | 17.3 W | 1.001 g | 62 A | — | 440 A |
| 3VA1196-5EF32-0AA0 | 10.6 W | 947 g | 16 A | 11 A | 160 A |
| 3VA1196-5EE32-0AA0 | 10.6 W | 929 g | 16 A | 11 A | 320 A |
| 3VA1163-6EE32-0AA0 | 17.3 W | 944 g | 62 A | 44 A | 630 A |
Common to all listed parts
| product designation | Molded case circuit breaker |
| insulation voltage / rated value | 800 V |
| operating voltage / at AC / rated value | 690 V |
| product component — undervoltage release | No |
| product component — voltage trigger | No |
| product component — trip indicator | No |
| arrangement of electrical connectors / for main current circuit | Front terminal |
| number of CO contacts / for auxiliary contacts | 0 |
