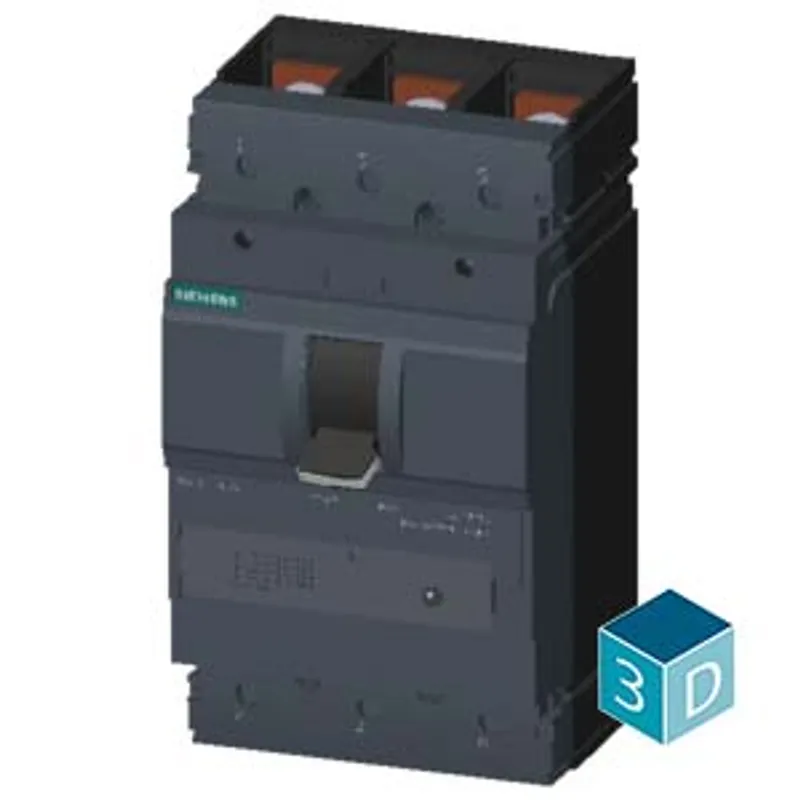

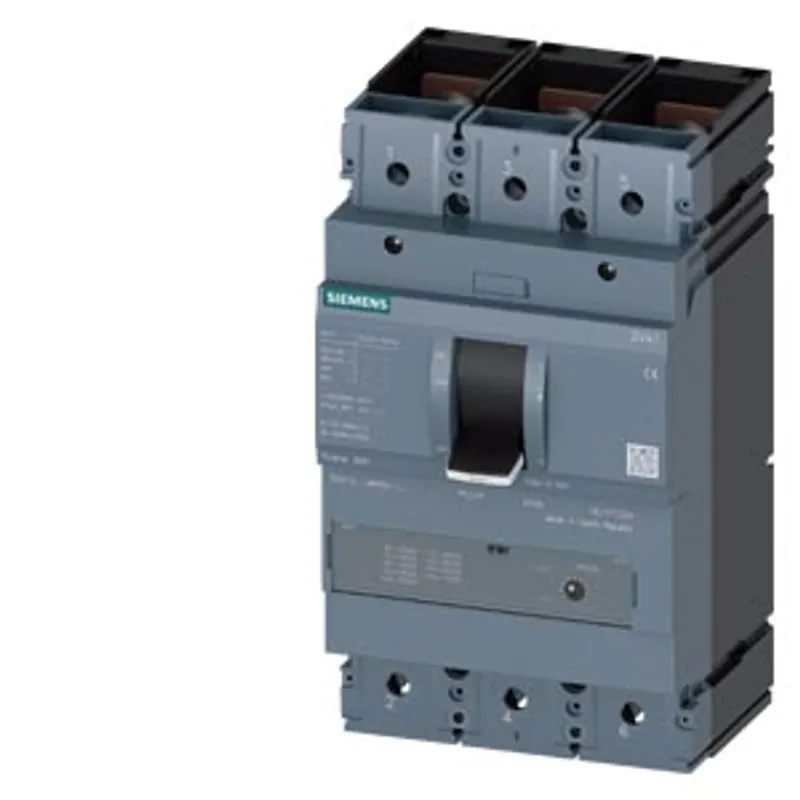

Siemens 3VA1325-7MH32-0AA0

Circuit breaker 3VA1 IEC Frame 400 breaking capacity class C Icu=110 kA @ 415 V 3-pole

MPN: 3VA1325-7MH32-0AA0
Category: 3VA Molded Case Circuit Breakers up to 1600 A, IEC

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

What is the Siemens 3VA1325-7MH32-0AA0?

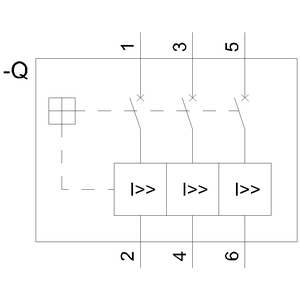

circuit breaker 3VA1 IEC Frame 400 breaking capacity class C Icu=110 kA @ 415 V 3-pole, starter protection TM120M, AM, In=250 A without overload protection short-circuit protection Ii=8...16 x In nut keeper kit

Specifications

Model

product brand name	SENTRON
product designation	Molded case circuit breaker
design of the product	Starter protection
design of the overcurrent release	TM120M
protection function of the overcurrent release	I
number of poles	3

General technical data

insulation voltage / rated value	800 V
operating voltage / at AC / rated value	690 V
power loss [W] / maximum	30 W
power loss [W] / for rated value of the current / at AC / in hot operating state / per pole	10 W
mechanical service life (operating cycles) / typical	20 000
electrical endurance (operating cycles) / at AC-1 / at 380/415 V	6 000
electrical endurance (operating cycles) / at AC-1 / at 690 V	4 200
product feature / for neutral conductors / upgradable/retrofittable / short-circuit and overload proof	No
ground-fault monitoring version	Without
product function — communication function	No
product function — other measurement function	No
Net Weight	5.214 kg

Current

operational current — at 40 °C	250 A
operational current — at 45 °C	250 A
operational current — at 50 °C	250 A
operational current — at 55 °C	245 A
operational current — at 60 °C	239 A
operational current — at 65 °C	234 A
operational current — at 70 °C	228 A

Switching capacity according to IEC 60947

switching capacity class of the circuit breaker	C
maximum short-circuit current breaking capacity (Icu) — at 240 V	200 kA
maximum short-circuit current breaking capacity (Icu) — at 415 V	110 kA
maximum short-circuit current breaking capacity (Icu) — at 440 V	110 kA
maximum short-circuit current breaking capacity (Icu) — at 500 V	70 kA
maximum short-circuit current breaking capacity (Icu) — at 690 V	10 kA
operating short-circuit current breaking capacity (Ics) — at 240 V	200 kA
operating short-circuit current breaking capacity (Ics) — at 415 V	110 kA
operating short-circuit current breaking capacity (Ics) — at 440 V	110 kA
operating short-circuit current breaking capacity (Ics) — at 500 V	70 kA
operating short-circuit current breaking capacity (Ics) — at 690 V	6 kA
short-circuit current making capacity (Icm) — at 240 V	440 kA
short-circuit current making capacity (Icm) — at 415 V	242 kA
short-circuit current making capacity (Icm) — at 440 V	242 kA
short-circuit current making capacity (Icm) — at 500 V	154 kA
short-circuit current making capacity (Icm) — at 690 V	17 kA
design of short-circuit protection	For switching power values in DC networks, see the 3VA molded case circuit breaker device manual; link to be found under Service & Support in the last chapter

Adjustable parameters

adjustable response value setting current (Ii) / for I-tripping — minimum	2 000 A
adjustable response value setting current (Ii) / for I-tripping — maximum	4 000 A
adjustable setting current (InN) / for N-tripping — minimum	250 A
adjustable setting current (InN) / for N-tripping — maximum	250 A
product function / grounding protection	No

Mechanical Design

product component — undervoltage release	No
product component — voltage trigger	No
product component — trip indicator	No
height [in]	9.76 in
height	248 mm
width [in]	5.43 in
width	138 mm
depth [in]	4.33 in
depth	110 mm

Connections

arrangement of electrical connectors / for main current circuit	Front terminal
type of electrical connection / for main current circuit	nut keeper kit on both ends
type of connectable conductor cross-sections / for flat-bar terminal connection / minimum	20 x 1 mm
type of connectable conductor cross-sections / for flat-bar terminal connection / maximum	35 x 10 mm
design of the surface / of the connections / on the top of the switch (N, 1, 3, 5)	Silver
design of the surface / of the connections / on the bottom of the switch (N, 2, 4, 6)	Silver

Auxiliary circuit

number of CO contacts / for auxiliary contacts

Accessories

product extension / optional / motor drive

Yes

Environmental conditions

protection class IP / on the front	IP40
ambient temperature — during operation / minimum	-25 °C
ambient temperature — during operation / maximum	70 °C
ambient temperature — during storage / minimum	-40 °C
ambient temperature — during storage / maximum	80 °C

Environmental footprint

global warming potential [CO2 eq] / total	473 kg
global warming potential [CO2 eq] / during manufacturing	23.9 kg
global warming potential [CO2 eq] / during operation	450 kg
global warming potential [CO2 eq] / after end of life	-2.9 kg
reference code / according to IEC 81346-2	Q

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet 3VA1325-7MH32-0AA0PDF
