3VA Molded Case Circuit Breakers up to 1600 A, IEC Parts
Compare 3VA Molded Case Circuit Breakers up to 1600 A, IEC
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | power loss [W] / maximum | Net Weight | operational current — at 40 °C | adjustable response value setting current (Ir) / of the L-trip / with I2t characteristic — minimum | adjustable response value setting current (Ii) / for I-tripping — minimum |
|---|---|---|---|---|---|

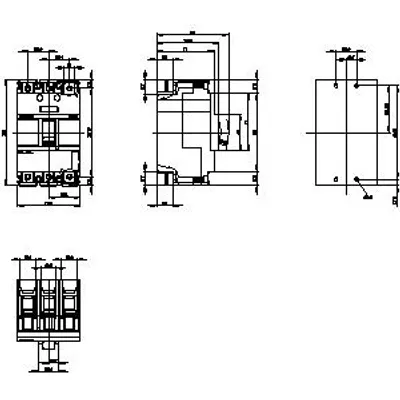

| 3VA1163-6ED36-0AA0 | 17.3 W | 1.033 kg | 63 A | 63 A | 630 A |

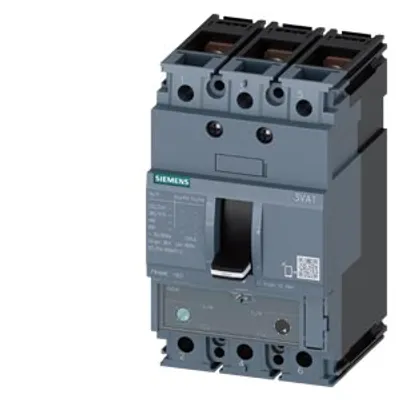

| 3VA1196-3EF32-0AA0 | 10.6 W | 931 g | 16 A | 11 A | 160 A |
| 3VA1196-3EE46-0AA0 | 10.6 W | 1.276 kg | 16 A | 11 A | 320 A |
| 3VA1196-3ED32-0AA0 | 10.6 W | 951 g | 16 A | 16 A | 320 A |

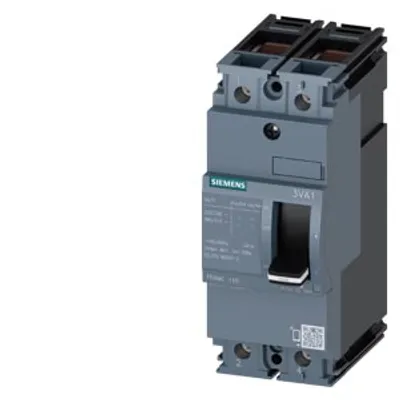

| 3VA1196-3ED26-0AA0 | 7.06 W | 657 g | 16 A | 16 A | 320 A |

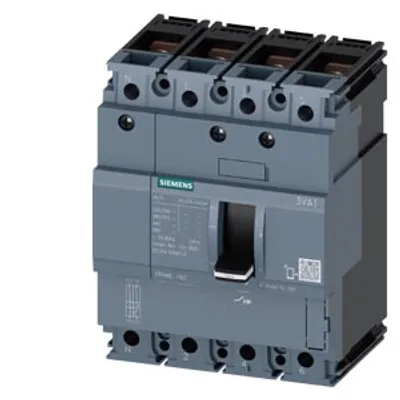

| 3VA1163-5ED42-0AA0 | 17.3 W | 1.211 kg | 63 A | 63 A | 630 A |

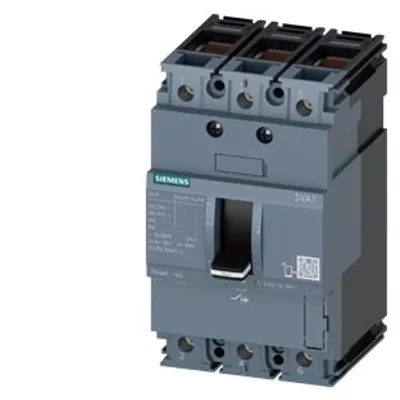

| 3VA1163-5ED36-0AA0 | 17.3 W | 980 g | 63 A | 63 A | 630 A |
| 3VA1180-4ED32-0AA0 | 19.2 W | 956 g | 80 A | 80 A | 800 A |
| 3VA1180-4ED26-0AA0 | 12.8 W | 694 g | 80 A | 80 A | 800 A |
| 3VA1180-3GF42-0AA0 | 19.2 W | 1.215 kg | 80 A | 56 A | 400 A |
| 3VA1180-3GE46-0AA0 | 19.2 W | 1.301 kg | 80 A | 56 A | 800 A |
| 3VA1150-6EE32-0AA0 | 14.6 W | 916 g | 50 A | 35 A | 500 A |

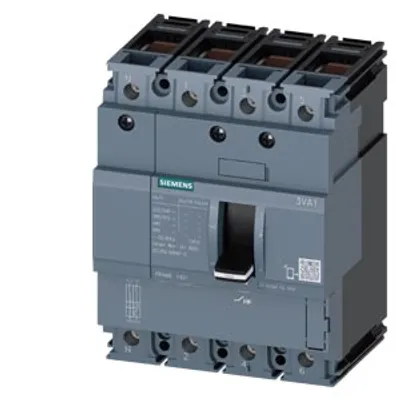

| 3VA1150-6ED46-0AA0 | 14.6 W | 1.17 kg | 50 A | 50 A | 500 A |
| 3VA1140-5ED32-0AA0 | 10.8 W | 917 g | 40 A | 40 A | 400 A |
| 3VA1140-5ED26-0AA0 | 7.2 W | 0.669 kg | 40 A | 40 A | 400 A |
| 3VA1140-5ED22-0AA0 | 7.2 W | 670 g | 40 A | 40 A | 400 A |

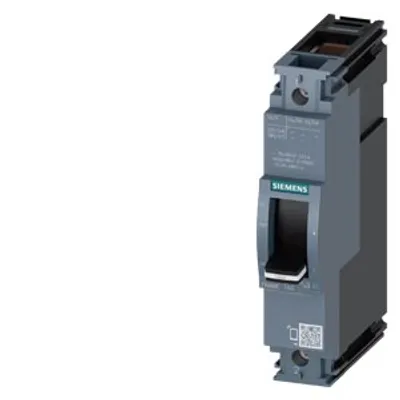

| 3VA1140-5ED16-0AA0 | 3.6 W | 403 g | 40 A | 40 A | 400 A |
| 3VA1140-4EF42-0AA0 | 10.8 W | 1.184 kg | 40 A | 28 A | 200 A |
| 3VA1132-4EF32-0AA0 | 10.6 W | 935 g | 32 A | 22 A | 160 A |

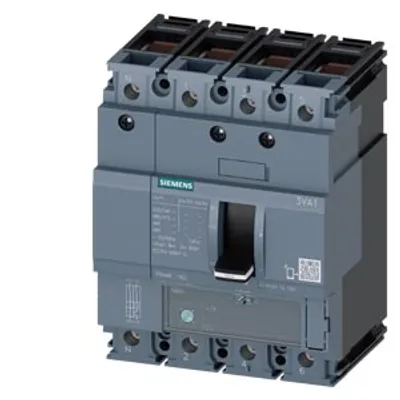

| 3VA1132-4EE46-0AA0 | 10.6 W | 1.298 kg | 32 A | 22 A | 320 A |
| 3VA1132-4ED42-0AA0 | 10.6 W | 1.198 kg | 32 A | 32 A | 320 A |
| 3VA1132-4ED36-0AA0 | 10.6 W | 1.036 kg | 32 A | 32 A | 320 A |
| 3VA1116-4EF32-0AA0 | 38 W | 968 g | 160 A | 112 A | 800 A |
| 3VA1116-4EE46-0AA0 | 38 W | 1.345 kg | 160 A | 112 A | 1 600 A |
Common to all listed parts
| product designation | Molded case circuit breaker |
| design of the product | Line protection |
| protection function of the overcurrent release | LI |
| mechanical service life (operating cycles) / typical | 20 000 |
| electrical endurance (operating cycles) / at AC-1 / at 380/415 V | 9 000 |
| electrical endurance (operating cycles) / at AC-1 / at 690 V | 6 300 |
| product feature / for neutral conductors / upgradable/retrofittable / short-circuit and overload proof | No |
| ground-fault monitoring version | Without |
